Part number
6ES7143-5BF00-0BL0
Model no
IO-Link DIQ 4+DQ 4x24VDC/0.5A
$138.69 On request Dispatch — · From TürkiyeGet a Quote
SIMATIC ET 200AL

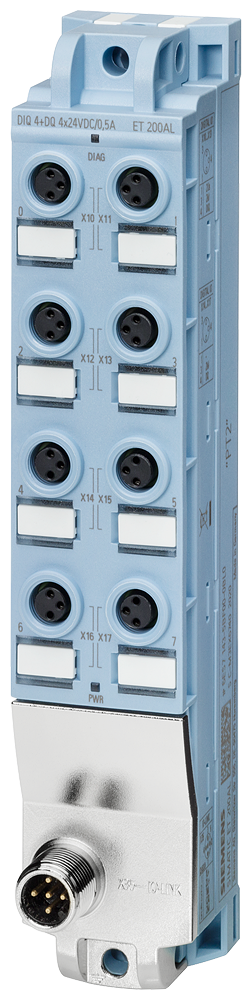

Siemens 6ES7143-5BF00-0BL0 SIMATIC ET 200AL IO-Link DIQ 4+DQ 4x24VDC/0.5A M8 Remote I/O Module

SIMATIC ET 200AL IO-Link DIQ 4+DQ 4x24VDC/0.5A

Rated current
0.5 A
Rated operational voltage
24 V AC
Communication
IO-Link 1.1 (38.4 kBd, port type B)
EAN
4047623411383
Description

About the IO-Link DIQ 4+DQ 4x24VDC/0.5A

The Siemens 6ES7143-5BF00-0BL0 is a SIMATIC ET 200AL IO-Link module with 4 fixed digital outputs and 4 parameterizable DIQ channels, rated 24 V DC / 0.5 A. It runs IO-Link 1.1 at 38.4 kBd over 8x M8 field connectors, powered from the IO-Link master's Us+/UA+ supply, and supports PL d / Cat. 3 / SIL 2 safety-related tripping from FS01.

Selection Notes

Combines the M8-connector, 4 DQ-fixed plus 4 DIQ-parameterizable layout of 6ES7143-5BF00-0BA0 with an IO-Link 1.1 interface instead of a direct PROFINET/PROFIBUS station address, so it reports through the IO-Link master port. Choose it over the PROFINET/PROFIBUS M8 variant when the station is already built around an IO-Link master and fieldbus addresses are limited; PL d / Cat. 3 / SIL 2 tripping support carries over from FS01 either way.

Applications

Fits IO-Link-based stations needing compact M8 digital I/O at IP67, aggregating several 4+4-channel blocks behind one master port instead of dedicated fieldbus stations.

Specification

Full specification

94 values · Last verified 01 Nov 2026

General information 6

Product type designation IO-Link DIQ 4+DQ 4x24VDC/0.5A
HW functional status FS01
Firmware version V1.0.x
Vendor identification (VendorID) 42
Device identifier (DeviceID) 229382
Engineering with: IODD file Yes

Supply voltage 8

Load voltage 1L+: Rated value (DC) 24 V; Supply from 1Us+ of the IO-Link master
Load voltage 1L+: permissible range, lower limit (DC) 18 V
Load voltage 1L+: permissible range, upper limit (DC) 30 V
Load voltage 1L+: Reverse polarity protection Yes; against destruction
Load voltage 2L+: Rated value (DC) 24 V; Supply from 2UA+ of the IO-Link master
Load voltage 2L+: permissible range, lower limit (DC) 20.4 V
Load voltage 2L+: permissible range, upper limit (DC) 28.8 V
Load voltage 2L+: Reverse polarity protection Yes; Against destruction; encoder power supply outputs applied with reversed polarity, loads pick up

Input current 2

Current consumption (rated value) 15 mA; without load
from load voltage 2L+, max. 4 A; Maximum value
Show all 94 specifications ↓ Show less ↑78 more values in Identification, Encoder supply, Power loss, Digital inputs, Digital outputs, Encoder, IO-Link, Interrupts/diagnostics/status information, Potential separation, Isolation, Degree and class of protection, Standards, approvals, certificates, Ambient conditions, Connection method, Dimensions, Weights, Logistics.

Identification 10

Part number 6ES7143-5BF00-0BL0
Type designation IO-Link DIQ 4+DQ 4x24VDC/0.5A
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4047623411383
ETIM class EC001599
eCl@ss 27242604

Encoder supply 3

Number of outputs 8; Supply from 2UA+ of the IO-Link master
24 V encoder supply: Short-circuit protection Yes; per module, electronic
24 V encoder supply: Output current, max. 0.7 A; Total current of all encoders (depending on IO-Link master supply via 2UA+)

Power loss 1

Power loss, typ. 2.3 W

Digital inputs 10

Number of digital inputs 4; Parameterizable as DIQ
Sourcing/sinking input P-reading
Input characteristic curve in accordance with IEC 61131, type 3 Yes
Number of simultaneously controllable inputs all mounting positions: up to 55 °C, max. 4
Input voltage: Rated value (DC) 24 V
Input voltage: for signal "0" -3 to +5V
Input voltage: for signal "1" +11 to +30V
Input current: for signal "1", typ. 3 mA
Input delay (for rated value of input voltage) for standard inputs: at "0" to "1", min. 1.2 ms
Cable length: unshielded, max. 30 m

Digital outputs 17

Number of digital outputs 8; 4 DQ fixed, 4 DIQ parameterizable
Current-sourcing Yes
output type acc. to IEC 61131, type 0.5 Yes
Short-circuit protection Yes; per channel, electronic
Response threshold, typ. 0.7 A
Limitation of inductive shutdown voltage to Switching capacity of the outputs 2L+ (-50 V)
on lamp load, max. 5 W
Load resistance range: lower limit 48 Ω
Load resistance range: upper limit 4 kΩ
Output voltage: for signal "1", min. L+ (-0.8 V)
Output current: for signal "1" rated value 0.5 A
Output current: for signal "0" residual current, max. 0.5 mA
Switching frequency: with resistive load, max. 100 Hz
Switching frequency: with inductive load, max. 0.5 Hz
Switching frequency: on lamp load, max. 1 Hz
Total current of the outputs: Current per module, max. 4 A
Cable length: unshielded, max. 30 m

Encoder 2

Connectable encoders: 2-wire sensor Yes
Connectable encoders: permissible quiescent current (2-wire sensor), max. 1.5 mA

Interrupts/diagnostics/status information 6

Substitute values connectable Yes; channel by channel, parameterizable
Alarms: Diagnostic alarm Yes; Parameterizable
Diagnoses: Short-circuit Yes; outputs to ground; encoder supply to ground; module by module
Diagnostics indication LED: Channel status display Yes; green LED
Diagnostics indication LED: for module diagnostics Yes; green/red LED
Diagnostics indication LED: For load voltage monitoring Yes; green LED

Potential separation 3

between the load voltages Yes
Potential separation channels: between the channels No
Potential separation channels: between the channels and the power supply of the electronics Yes

Isolation 1

Isolation tested with 707 V DC (type test)

Degree and class of protection 1

IP degree of protection IP65/67

Standards, approvals, certificates 2

Suitable for safety-related tripping of standard modules Yes; from FS01
Highest safety class achievable for safety-related tripping of standard modules: Performance level according to ISO 13849-1 PL d

Ambient conditions 2

Ambient temperature during operation: min. -30 °C
Ambient temperature during operation: max. 55 °C

Connection method 2

Design of electrical connection for the inputs and outputs M8, 3-pole
Type of electrical connection for IO-Link M12, 5-pin, A-coded

Dimensions 3

Width 30 mm
Height 159 mm
Depth 40 mm

Weights 1

Weight, approx. 125 g

Logistics 6

Net weight 0.143 kg
Country of origin DE
Shipping weight 0.643 kg
Ships from Türkiye
Dispatch —
Stock On request
