Part number
6ES7143-5BF00-0BA0
Model no
DIQ 4+DQ 4x24VDC/0.5A
$184.23 On request Dispatch — · From TürkiyeGet a Quote
SIMATIC ET 200AL

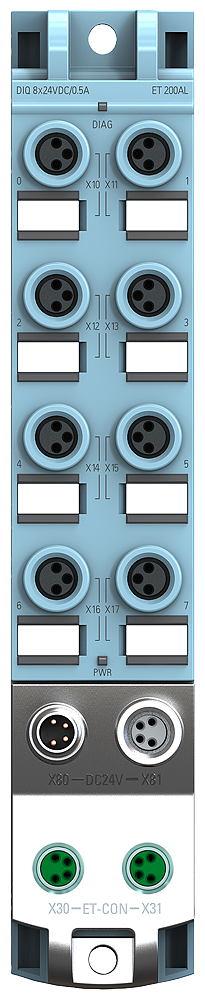

Siemens 6ES7143-5BF00-0BA0 SIMATIC ET 200AL DIQ 4+DQ 4x24VDC/0.5A M8 IP67 Remote I/O Module

SIMATIC ET 200AL DIQ 4+DQ 4x24VDC/0.5A

Rated current
0.5 A
Rated operational voltage
24 V AC
Communication
PROFINET (GSDML V2.3.1), PROFIBUS (GSD Rev. 5)
EAN
4047623403470
Description

About the DIQ 4+DQ 4x24VDC/0.5A

The Siemens 6ES7143-5BF00-0BA0 is a SIMATIC ET 200AL I/O module with 4 fixed digital outputs and 4 channels parameterizable as input or output, rated 24 V DC / 0.5 A. It uses compact M8 field connectors across 8 ports rather than M12, still rated IP65/67, and supports PL d / Cat. 3 / SIL 2 safety-related tripping from FS01.

Selection Notes

Same 4 DQ-fixed plus 4 DIQ-parameterizable channel layout as the M12 version (6ES7143-5AF00-0BA0), but wired through 8x M8 3-pole connectors instead of 4x M12 5-pole. Pick this variant when the field cabling is already M8, which is smaller and cheaper per connection but carries only single-signal, non-multiplexed wiring. PL d / Cat. 3 / SIL 2 tripping support from FS01 carries over unchanged from the M12 variant.

Applications

Suits machine-mounted digital I/O where the plant standard is M8 field connectors, such as sensor-dense zones on packaging or handling equipment where connector size and cost per point matter more than multi-signal M12 cabling.

Specification

Full specification

97 values · Last verified 01 Nov 2026

General information 8

Product type designation DIQ 4+DQ 4x24VDC/0.5A
HW functional status FS06
Firmware version V2.0.x
Product function: I&M data Yes; I&M0 to I&M3
Engineering with: STEP 7 TIA Portal configurable/integrated from version STEP 7 V13 SP1 or higher
Engineering with: STEP 7 configurable/integrated from version From V5.5 SP4 Hotfix 3
Engineering with: PROFIBUS from GSD version/GSD revision GSD as of Revision 5
Engineering with: PROFINET from GSD version/GSD revision GSDML V2.3.1

Supply voltage 9

power supply according to NEC Class 2 required No
Load voltage 1L+: Rated value (DC) 24 V
Load voltage 1L+: permissible range, lower limit (DC) 20.4 V
Load voltage 1L+: permissible range, upper limit (DC) 28.8 V
Load voltage 1L+: Reverse polarity protection Yes; Against destruction; encoder power supply outputs applied with reversed polarity, loads pick up
Load voltage 2L+: Rated value (DC) 24 V
Load voltage 2L+: permissible range, lower limit (DC) 20.4 V
Load voltage 2L+: permissible range, upper limit (DC) 28.8 V
Load voltage 2L+: Reverse polarity protection Yes; against destruction; load increasing

Input current 3

Current consumption (rated value) 40 mA; 40 mA (1L+) / 20 mA (2L+); without load
from load voltage 1L+ (unswitched voltage) 4 A; Maximum value
from load voltage 2L+, max. 4 A; Maximum value
Show all 97 specifications ↓ Show less ↑77 more values in Identification, Encoder supply, Power loss, Digital inputs, Digital outputs, Encoder, Interrupts/diagnostics/status information, Potential separation, Isolation, Degree and class of protection, Standards, approvals, certificates, Security, Ambient conditions, Connection method, Dimensions, Weights, Logistics.

Identification 10

Part number 6ES7143-5BF00-0BA0
Type designation DIQ 4+DQ 4x24VDC/0.5A
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4047623403470
ETIM class EC001599
eCl@ss 27242604

Encoder supply 3

Number of outputs 4
24 V encoder supply: Short-circuit protection Yes; per module, electronic
24 V encoder supply: Output current, max. 0.7 A; Total current of all encoders

Power loss 1

Power loss, typ. 2.5 W

Digital inputs 10

Number of digital inputs 4; Parameterizable as DIQ
Sourcing/sinking input P-reading
Input characteristic curve in accordance with IEC 61131, type 3 Yes
Number of simultaneously controllable inputs all mounting positions: up to 55 °C, max. 4
Input voltage: Rated value (DC) 24 V
Input voltage: for signal "0" -3 to +5V
Input voltage: for signal "1" +11 to +30V
Input current: for signal "1", typ. 3.2 mA
Input delay (for rated value of input voltage) for standard inputs: at "0" to "1", min. 1.2 ms
Cable length: unshielded, max. 30 m

Digital outputs 18

Number of digital outputs 8; 4 DQ fixed, 4 DIQ parameterizable
in groups of 4; 2 load groups for 4 outputs each
Current-sourcing Yes
output type acc. to IEC 61131, type 0.5 Yes
Short-circuit protection Yes; per channel, electronic
Response threshold, typ. 0.7 A
Limitation of inductive shutdown voltage to Switching capacity of the outputs 2L+ (-47 V)
on lamp load, max. 5 W
Load resistance range: lower limit 48 Ω
Load resistance range: upper limit 4 kΩ
Output voltage: for signal "1", min. L+ (-0.8 V)
Output current: for signal "1" rated value 0.5 A
Output current: for signal "0" residual current, max. 0.5 mA
Switching frequency: with resistive load, max. 100 Hz
Switching frequency: with inductive load, max. 0.5 Hz
Switching frequency: on lamp load, max. 1 Hz
Total current of the outputs: Current per group, max. 2 A
Cable length: unshielded, max. 30 m

Encoder 2

Connectable encoders: 2-wire sensor Yes
Connectable encoders: permissible quiescent current (2-wire sensor), max. 1.5 mA

Interrupts/diagnostics/status information 6

Substitute values connectable Yes; channel by channel, parameterizable
Alarms: Diagnostic alarm Yes; Parameterizable
Diagnoses: Short-circuit Yes; Outputs to M; encoder supply to M; module by module
Diagnostics indication LED: Channel status display Yes; green LED
Diagnostics indication LED: for module diagnostics Yes; green/red LED
Diagnostics indication LED: For load voltage monitoring Yes; green LED

Potential separation 5

between the load voltages Yes
Potential separation channels: between the channels, in groups of 4; DIQ channels are isolated from DQ channels
Potential separation channels: between the channels and backplane bus Yes
Potential separation channels: between the channels and the power supply of the No; DIQ channels are non-isolated and DQ channels are isolated from supply
electronics voltage 1L+

Isolation 1

Isolation tested with 707 V DC (type test)

Degree and class of protection 1

IP degree of protection IP65/67

Standards, approvals, certificates 2

Suitable for safety-related tripping of standard modules Yes; from FS01
Highest safety class achievable for safety-related tripping of standard modules: Performance level according to ISO 13849-1 PL d

Security 2

signed firmware update Yes
data integrity Yes

Ambient conditions 3

Ambient temperature during operation: min. -30 °C
Ambient temperature during operation: max. 55 °C
Altitude during operation relating to sea level: Ambient air temperature-barometric pressure-altitude Up to max. 5 000 m, at installation height > 2 000 m additional restrictions

Connection method 3

Design of electrical connection for the inputs and outputs M8, 3-pole
Design of electrical connection for supply voltage M8, 4-pole
ET-Connection: ET-Connection M8, 4-pin, shielded

Dimensions 3

Width 30 mm
Height 159 mm
Depth 40 mm

Weights 1

Weight, approx. 145 g

Logistics 6

Net weight 0.167 kg
Country of origin DE
Shipping weight 0.667 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 01 Nov 2026
