Part number
6ES7143-5AH00-0BL0
Model no
IO-Link DIQ 16x24VDC/0.5A
$253.58 On request Dispatch — · From TürkiyeGet a Quote
SIMATIC ET 200AL

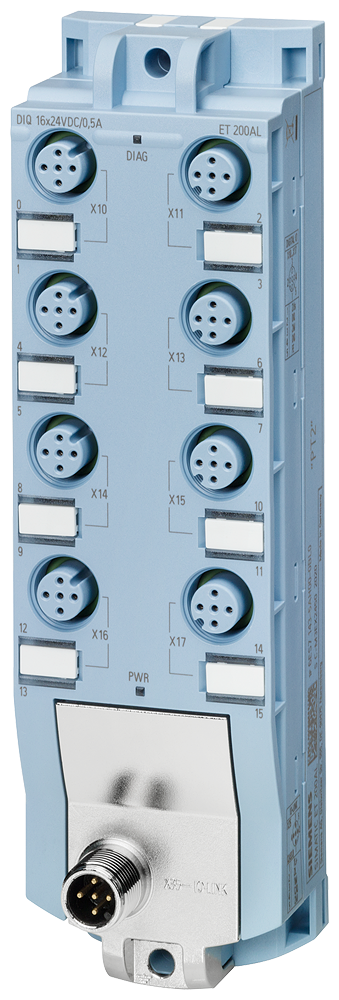

Siemens 6ES7143-5AH00-0BL0 SIMATIC ET 200AL IO-Link DIQ 16x24VDC/0.5A IP67 Remote I/O Module

SIMATIC ET 200AL IO-Link DIQ 16x24VDC/0.5A

Rated current
0.5 A
Rated operational voltage
24 V AC
Communication
IO-Link 1.1 (38.4 kBd, port type B)
EAN
4047623411376
Description

About the IO-Link DIQ 16x24VDC/0.5A

The Siemens 6ES7143-5AH00-0BL0 is a SIMATIC ET 200AL IO-Link module with 16 channels parameterizable as digital input or output, rated 24 V DC / 0.5 A. It runs the IO-Link 1.1 protocol at 38.4 kBd through a port type B connection, powered from the IO-Link master's Us+/UA+ supply, and reports over IP65/67-rated M12 connectors.

Selection Notes

Running as an IO-Link device rather than a PROFINET/PROFIBUS-addressed module, this variant reports its 16 DIQ channels through a single IO-Link master port instead of taking its own fieldbus station address, which cuts the address budget for stations with many small I/O blocks. Pick the standard 6ES7143-5AH00-0BA0 PROFINET/PROFIBUS variant instead when the station has spare fieldbus addresses and doesn't already run IO-Link masters.

Applications

Fits stations built around an IO-Link master where adding another fieldbus node isn't practical, letting a cell aggregate several 16-channel DIQ blocks behind one master port for machine-mounted digital I/O at IP67.

Specification

Full specification

91 values · Last verified 01 Nov 2026

General information 6

Product type designation IO-Link DIQ 16x24VDC/0.5A
HW functional status FS01
Firmware version V1.0.x
Vendor identification (VendorID) 42
Device identifier (DeviceID) 229383
Engineering with: IODD file Yes

Supply voltage 8

Load voltage 1L+: Rated value (DC) 24 V; Supply from 1Us+ of the IO-Link master
Load voltage 1L+: permissible range, lower limit (DC) 18 V
Load voltage 1L+: permissible range, upper limit (DC) 30 V
Load voltage 1L+: Reverse polarity protection Yes; against destruction
Load voltage 2L+: Rated value (DC) 24 V; Supply from 2UA+ of the IO-Link master
Load voltage 2L+: permissible range, lower limit (DC) 20.4 V
Load voltage 2L+: permissible range, upper limit (DC) 28.8 V
Load voltage 2L+: Reverse polarity protection Yes; Against destruction; encoder power supply outputs applied with reversed polarity, loads pick up

Input current 2

Current consumption (rated value) 20 mA; without load
from load voltage 2L+, max. 4 A; Maximum value
Show all 91 specifications ↓ Show less ↑75 more values in Identification, Encoder supply, Power loss, Digital inputs, Digital outputs, Encoder, IO-Link, Interrupts/diagnostics/status information, Potential separation, Isolation, Degree and class of protection, Ambient conditions, Connection method, Dimensions, Weights, Logistics.

Identification 10

Part number 6ES7143-5AH00-0BL0
Type designation IO-Link DIQ 16x24VDC/0.5A
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4047623411376
ETIM class EC001599
eCl@ss 27242604

Encoder supply 3

Number of outputs 8; Supply from 2UA+ of the IO-Link master
24 V encoder supply: Short-circuit protection Yes; per module, electronic
24 V encoder supply: Output current, max. 0.7 A; Total current of all encoders (depending on IO-Link master supply via 2UA+)

Power loss 1

Power loss, typ. 4 W

Digital inputs 10

Number of digital inputs 16; Parameterizable as DIQ
Sourcing/sinking input P-reading
Input characteristic curve in accordance with IEC 61131, type 3 Yes
Number of simultaneously controllable inputs all mounting positions: up to 55 °C, max. 16
Input voltage: Rated value (DC) 24 V
Input voltage: for signal "0" -3 to +5V
Input voltage: for signal "1" +11 to +30V
Input current: for signal "1", typ. 3 mA
Input delay (for rated value of input voltage) for standard inputs: at "0" to "1", min. 1.2 ms
Cable length: unshielded, max. 30 m

Digital outputs 16

Number of digital outputs 16; Parameterizable as DIQ
Current-sourcing Yes
Short-circuit protection Yes; per channel, electronic
Response threshold, typ. 0.7 A
Limitation of inductive shutdown voltage to Switching capacity of the outputs 2L+ (-50 V)
on lamp load, max. 5 W
Load resistance range: lower limit 48 Ω
Load resistance range: upper limit 4 kΩ
Output voltage: for signal "1", min. L+ (-0.8 V)
Output current: for signal "1" rated value 0.5 A
Output current: for signal "0" residual current, max. 0.5 mA
Switching frequency: with resistive load, max. 100 Hz
Switching frequency: with inductive load, max. 0.5 Hz
Switching frequency: on lamp load, max. 1 Hz
Total current of the outputs: Current per module, max. 4 A
Cable length: unshielded, max. 30 m

Encoder 2

Connectable encoders: 2-wire sensor Yes
Connectable encoders: permissible quiescent current (2-wire sensor), max. 1.5 mA

Interrupts/diagnostics/status information 6

Substitute values connectable Yes; channel by channel, parameterizable
Alarms: Diagnostic alarm Yes; Parameterizable
Diagnoses: Short-circuit Yes; outputs to ground; encoder supply to ground; module by module
Diagnostics indication LED: Channel status display Yes; green LED
Diagnostics indication LED: for module diagnostics Yes; green/red LED
Diagnostics indication LED: For load voltage monitoring Yes; green LED

Potential separation 3

between the load voltages Yes
Potential separation channels: between the channels No
Potential separation channels: between the channels and the power supply of the electronics Yes

Isolation 1

Isolation tested with 707 V DC (type test)

Degree and class of protection 1

IP degree of protection IP65/67

Ambient conditions 2

Ambient temperature during operation: min. -30 °C
Ambient temperature during operation: max. 55 °C

Connection method 2

Design of electrical connection for the inputs and outputs M12, 5-pin, A-coded
Type of electrical connection for IO-Link M12, 5-pin, A-coded

Dimensions 3

Width 45 mm
Height 159 mm
Depth 40 mm

Weights 1

Weight, approx. 157 g

Logistics 6

Net weight 0.182 kg
Country of origin DE
Shipping weight 0.682 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 01 Nov 2026

Documents

Documents for 6ES7143-5AH00-0BL0

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the IO-Link DIQ 16x24VDC/0.5A

What is the rated current of IO-Link DIQ 16x24VDC/0.5A?

The rated current of IO-Link DIQ 16x24VDC/0.5A is 0.5 A.

Which supply voltage is IO-Link DIQ 16x24VDC/0.5A rated for?

The rated operational voltage of IO-Link DIQ 16x24VDC/0.5A is 24 V AC.

What is the HS code of IO-Link DIQ 16x24VDC/0.5A for customs?

The tariff (HS) code on file for IO-Link DIQ 16x24VDC/0.5A is 85389091.

What is the EAN of IO-Link DIQ 16x24VDC/0.5A?

The EAN (GTIN) of IO-Link DIQ 16x24VDC/0.5A is 4047623411376.

Where does IO-Link DIQ 16x24VDC/0.5A ship from, and how fast?

IO-Link DIQ 16x24VDC/0.5A ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
