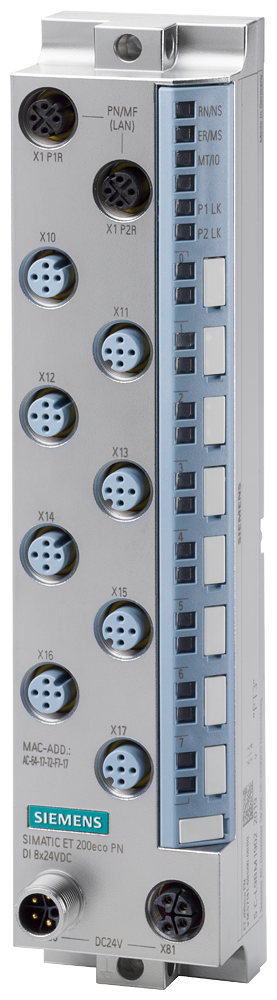

The Siemens 6ES7142-6BG00-0BB0 is a SIMATIC ET 200eco PN digital output module with 8 channels rated 0.5 A at 24 V DC, wired through 2x M12-L PROFINET ports plus M12 I/O connectors in an IP65/67/69K housing rated for washdown environments. It runs isochronous mode down to a 250 microsecond cycle and supports PROFINET S2 system redundancy with MRP media redundancy.
The 0.5 A per-channel rating suits pilot lamps, small relay coils, and low-current solenoids rather than motor loads; two outputs can be paralleled for redundant control of a single load. Choose this M12-L PROFINET version over a DIN-rail DQ module for washdown areas or where PROFINET S2 system redundancy and MRP media redundancy protect against a single controller or cable failure. Substitute values can be configured to hold a defined output state if communication drops, and per-channel wire-break/short-circuit diagnostics isolate a faulty load without probing every output on the module.
Field-mounted low-current actuator control on PROFINET networks - pilot lamps, indicator beacons, and small relay or solenoid coils in washdown or network-redundant machine and packaging lines.
| HW functional status | FS06 |
|---|---|
| Firmware version | V5.1.x |
| FW update possible | Yes |
| Vendor identification (VendorID) | 002 AH |
| Device identifier (DeviceID) | 0306 H |
| Manufacturer ID according to ODVA (VendorID) | 04E3H |
| Device ID according to ODVA (Product code) | 0FA6H |
| Product function: I&M data | Yes; I&M0 to I&M3 |
| Product function: Isochronous mode | Yes |
| Product function: IRT | Yes |
| Product function: Prioritized startup | Yes |
| Engineering with: STEP 7 TIA Portal configurable/integrated from version | STEP 7 V17 or higher with HSP 0363 |
| Engineering with: PROFINET from GSD version/GSD revision | GSDML V2.4.x |
| Engineering with: Multi Fieldbus Configuration Tool (MFCT) | from V1.3 SP1 |
| Operating mode: DQ | Yes |
| Operating mode: MSO | Yes |
| power supply according to NEC Class 2 required | No |
|---|---|
| Load voltage 1L+: Rated value (DC) | 24 V |
| Load voltage 1L+: permissible range, lower limit (DC) | 20.4 V |
| Load voltage 1L+: permissible range, upper limit (DC) | 28.8 V |
| Load voltage 1L+: Reverse polarity protection | Yes |
| Load voltage 2L+: Rated value (DC) | 24 V |
| Load voltage 2L+: permissible range, lower limit (DC) | 20.4 V |
| Load voltage 2L+: permissible range, upper limit (DC) | 28.8 V |
| Load voltage 2L+: Reverse polarity protection | Yes; against destruction; load increasing |
| Current consumption (rated value) | 65 mA; without load |
|---|---|
| from load voltage 1L+ (unswitched voltage) | 12 A; Maximum value |
| from load voltage 2L+, max. | 12 A; Maximum value |
| Part number | 6ES7142-6BG00-0BB0 |
|---|---|
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047623410904 |
| ETIM class | EC001599 |
| eCl@ss | 27242604 |
| Power loss, typ. | 7 W |
|---|
| Address space per module: Inputs | 1 byte for QI information |
|---|---|
| Address space per module: Outputs | 1 byte |
| Submodules: Number of configurable submodules, max. | 2 |
|---|
| Number of digital outputs | 8 |
|---|---|
| Current-sourcing | Yes |
| output type acc. to IEC 61131, type 0.5 | Yes |
| Short-circuit protection | Yes; per channel, electronic |
| Response threshold, typ. | 1 A |
| Limitation of inductive shutdown voltage to | Typ. 2L+ (-52 V) |
| Controlling a digital input | Yes |
| Switching capacity of the outputs: with resistive load, max. | 0.5 A |
| Switching capacity of the outputs: with inductive load, max. | 0.5 A |
| Switching capacity of the outputs: on lamp load, max. | 5 W |
| Load resistance range: lower limit | 48 Ω |
| Load resistance range: upper limit | 4 kΩ |
| Output voltage: for signal "1", min. | 2L+ (-0,8 V) |
| Output current: for signal "1" rated value | 0.5 A |
| Output current: for signal "1" permissible range, max. | 0.5 A |
| Output current: for signal "0" residual current, max. | 0.1 mA |
| Output delay with resistive load: "0" to "1", max. | 50 µs; at rated load |
| Output delay with resistive load: "1" to "0", max. | 100 µs; at rated load |
| Parallel switching of two outputs: for uprating | No |
| Parallel switching of two outputs: for redundant control of a load | Yes |
| Switching frequency: with resistive load, max. | 100 Hz |
| Switching frequency: with inductive load, max. | 0.5 Hz |
| Switching frequency: on lamp load, max. | 1 Hz |
| Total current of the outputs: Current per module, max. | 4 A |
| Cable length: unshielded, max. | 30 m |
| Transmission procedure | 100BASE-TX |
|---|---|
| Number of PROFINET interfaces | 1 |
| Interface type | PROFINET with 100 Mbit/s full duplex (100BASE-TX) |
|---|---|
| Interface types: M12 port | Yes; 2x M12, 4-pin, D-coded |
| Interface types: Number of ports | 2 |
| Interface types: integrated switch | Yes |
| Protocols: PROFINET IO Device | Yes |
| Protocols: Open IE communication | Yes |
| PROFINET IO Device Services: IRT | Yes; 250 µs to 4 ms in 125 µs frame |
| PROFINET IO Device Services: Prioritized startup | Yes |
| PROFINET IO Device Services: Shared device | Yes |
| PROFINET IO Device Services: Number of IO Controllers with shared device, max. | 2 |
| M12 port: Autonegotiation | Yes |
|---|---|
| M12 port: Autocrossing | Yes |
| M12 port: Transmission rate, max. | 100 Mbit/s |
| Supports protocol for PROFINET IO | Yes |
|---|---|
| PROFIsafe | No |
| EtherNet/IP | Yes |
| Modbus TCP | Yes |
| Redundancy mode: PROFINET system redundancy (S2) | Yes |
| Redundancy mode: on S7-1500R/H | Yes |
| Redundancy mode: on S7-400H | Yes |
| Redundancy mode: PROFINET system redundancy (R1) | No |
| Redundancy mode: H-Sync forwarding Media redundancy | Yes |
| Redundancy mode: MRP | Yes |
| Redundancy mode: MRPD | No |
| EtherNet/IP Services: CIP Implicit Messaging | Yes |
| EtherNet/IP Services: CIP Explicit Messaging | Yes |
| EtherNet/IP Services: CIP Safety | No |
| EtherNet/IP Services: Shared device | Yes; 2x EtherNet/IP Scanner |
| EtherNet/IP Services: Number of scanners with shared device, max. Updating times | 2 |
| EtherNet/IP Services: Requested Packet Interval (RPI) Redundancy mode | 2 ms |
| EtherNet/IP Services: DLR (Device Level Ring) Address area | No |
| EtherNet/IP Services: Address space per module, max. | 20 byte |
| EtherNet/IP Services: LargeForwardOpen (Class3) | No |
| Modbus TCP Services: read coils (code=1) | Yes |
| Modbus TCP Services: read discrete inputs (code=2) | Yes |
| Modbus TCP Services: Read Holding Registers (Code=3) | Yes |
| Modbus TCP Services: write single coil (code=5) | Yes |
| Modbus TCP Services: write multiple coils (code=15) | Yes |
| Modbus TCP Services: Write Multiple Registers (Code=16) | Yes |
| Modbus TCP Services: Parameter change by master | No |
| Modbus TCP Services: Modbus TCP Security Protocol Address space per station | No |
| Modbus TCP Services: Address space per station, max. | 20 byte |
| Modbus TCP Services: Access-consistent address space Updating time | 2 byte |
| Modbus TCP Services: I/O request interval Connections | 2 ms |
| Modbus TCP Services: number of connections per device | 12 |
| Open IE communication: TCP/IP | Yes; (only EtherNet/IP or Modbus TCP) |
| Open IE communication: SNMP | Yes |
| Open IE communication: LLDP | Yes |
| Open IE communication: ARP | Yes |
| Equidistance | Yes |
|---|---|
| shortest clock pulse | 250 µs |
| max. cycle | 4 ms |
| Jitter, max. | 10 µs |
| Substitute values connectable | Yes |
|---|---|
| Alarms: Diagnostic alarm | Yes; Parameterizable |
| Alarms: Maintenance interrupt | Yes; Parameterizable |
| Diagnoses: Diagnostic information readable | Yes |
| Diagnoses: Monitoring the supply voltage | Yes |
| Diagnoses: parameterizable | Yes |
| Diagnoses: Wire break | Yes |
| Diagnoses: Short-circuit | Yes; Outputs to M; channel by channel |
| Diagnostics indication LED: RUN LED | Yes; green LED |
| Diagnostics indication LED: ERROR LED | Yes; red LED |
| Diagnostics indication LED: MAINT LED | Yes; Yellow LED |
| Diagnostics indication LED: NS LED | Yes; green/red LED |
| Diagnostics indication LED: MS LED | Yes; green/red LED |
| Diagnostics indication LED: IO LED | Yes; red/green/yellow LEDs |
| Diagnostics indication LED: Channel status display | Yes; green LED |
| Diagnostics indication LED: for channel diagnostics | Yes; red LED |
| Diagnostics indication LED: For load voltage monitoring | Yes; green LED |
| Diagnostics indication LED: Connection display LINK TX/RX | Yes; green LED, only link |
| between the load voltages | Yes |
|---|---|
| between Ethernet and electronics | Yes |
| Potential separation channels: between the channels | No |
| Potential separation channels: between the channels and the power supply of the electronics | Yes |
| tested with: 24 V DC circuits | 707 V DC (type test) |
|---|---|
| tested with: Test voltage for interface, rms value [Vrms] | 1 500 V; According to IEEE 802.3 |
| IP degree of protection | IP65/67/69K |
|---|
| Suitable for safety-related tripping of standard modules | Yes; From FS02 |
|---|---|
| Highest safety class achievable for safety-related tripping of standard modules: Performance level according to ISO 13849-1 | PL d |
| Use in hazardous areas: Explosion protection category for gas | ATEX, UKEX, IECEx, CCCEx for Zone 2 |
| Use in hazardous areas: Explosion protection category for dust | ATEX, UKEX, IECEx, CCCEx for Zone 22 |
| signed firmware update | Yes |
|---|---|
| securely removing data | Yes |
| Ambient temperature during operation: min. | -40 °C |
|---|---|
| Ambient temperature during operation: max. | 60 °C |
| Altitude during operation relating to sea level: Ambient air temperature-barometric pressure-altitude | Up to max. 5 000 m, at installation height > 2 000 m additional restrictions |
| Design of electrical connection | 4/5-pin M12 circular connectors |
|---|---|
| Design of electrical connection for the inputs and outputs | M12, 5-pin, A-coded |
| Design of electrical connection for supply voltage | M12, 4-pin, L-coded |
| eClass | 16 27-24-26-04 |
|---|---|
| ETIM | 10 EC001599 |
| IDEA | 4 3566 |
| UNSPSC | 15 32-15-17-05 |
| Net weight | 0.809 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 1.309 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
