Part number
6ES7142-5AF00-0BA0
Model no
DQ 8x24VDC/2A
$246.33 On request Dispatch — · From TürkiyeGet a Quote
SIMATIC ET 200AL

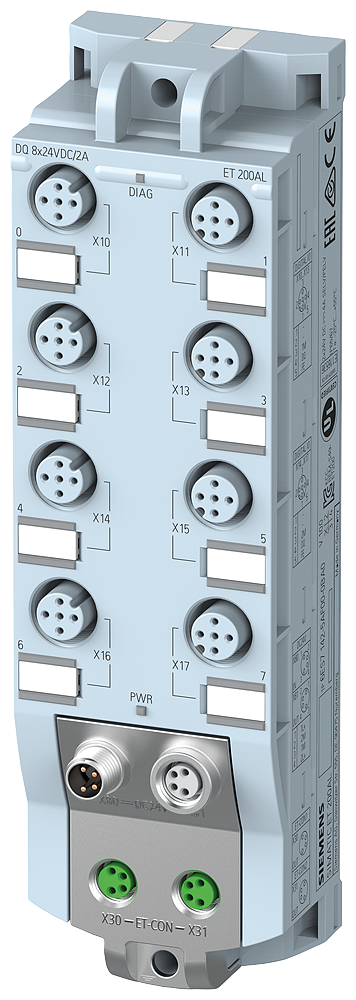

Siemens 6ES7142-5AF00-0BA0 SIMATIC ET 200AL DQ 8x24VDC/2A 8xM12 IP67 Remote I/O Module

SIMATIC ET 200AL digital output module, 8x 24V DC/2A outputs, 8xM12 connectors, IP65/67.

Rated current
2 A
Display
Green channel-status LED + green/red module diagnostics LED
EAN
4047623405900
Description

About the DQ 8x24VDC/2A

The Siemens 6ES7142-5AF00-0BA0 is a SIMATIC ET 200AL digital output module with 8 channels rated 2 A at 24 V DC, wired through 8x M12 connectors for direct field mounting. Outputs are grouped in twos across 2 load groups of 4, current-sourcing per IEC 61131 type 2, and the module is suitable for safety-related tripping of standard modules to PL d / SIL 2 from firmware FS01.

Selection Notes

The 2 A per-channel rating and 8x M12 field connectors set this module apart from a DIN-rail DQ card - it drives solenoid valves and small motor loads directly at the machine, in an IP65/67 housing, without cabinet space. Outputs split into two load groups of 4 channels each, and inductive loads are capped at 2 channels per group, a limit worth checking before wiring valve banks with more than 2 coils per group. PL d / SIL 2 safety-related tripping support from firmware FS01 lets a fail-safe CPU drive a standard actuator through this module without a dedicated F-DQ card.

Applications

Field-mounted actuator control on machines and conveyor sections - solenoid valves, pilot lamps, and small motor loads up to 2 A wired directly to the module without a cabinet-mounted DIN-rail I/O station.

Specification

Full specification

85 values · Last verified 01 Nov 2026

General information 8

Product type designation DQ 8x24VDC/2A
HW functional status FS06
Firmware version V2.0.x
Product function: I&M data Yes; I&M0 to I&M3
Engineering with: STEP 7 TIA Portal configurable/integrated from version STEP 7 V13 SP1 or higher
Engineering with: STEP 7 configurable/integrated from version V5.5 SP4 Hotfix 7 or higher
Engineering with: PROFIBUS from GSD version/GSD revision GSD as of Revision 5
Engineering with: PROFINET from GSD version/GSD revision GSDML V2.3.1

Supply voltage 9

power supply according to NEC Class 2 required No
Load voltage 1L+: Rated value (DC) 24 V
Load voltage 1L+: permissible range, lower limit (DC) 20.4 V
Load voltage 1L+: permissible range, upper limit (DC) 28.8 V
Load voltage 1L+: Reverse polarity protection Yes; against destruction; load increasing
Load voltage 2L+: Rated value (DC) 24 V
Load voltage 2L+: permissible range, lower limit (DC) 20.4 V
Load voltage 2L+: permissible range, upper limit (DC) 28.8 V
Load voltage 2L+: Reverse polarity protection Yes; against destruction; load increasing

Input current 3

Current consumption (rated value) 40 mA; 40 mA (1L+) / 35 mA (2L+); without load
from load voltage 1L+ (unswitched voltage) 4 A; Maximum value
from load voltage 2L+, max. 4 A; Maximum value
Show all 85 specifications ↓ Show less ↑65 more values in Identification, Power loss, Digital outputs, Interrupts/diagnostics/status information, Potential separation, Isolation, Degree and class of protection, Standards, approvals, certificates, Security, Ambient conditions, Connection method, Version Classification, General Product Approval Functional Saftey, Logistics.

Identification 10

Part number 6ES7142-5AF00-0BA0
Type designation DQ 8x24VDC/2A
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4047623405900
ETIM class EC001599
eCl@ss 27242604

Power loss 1

Power loss, typ. 4 W

Digital outputs 19

Number of digital outputs 8
in groups of 4; 2 load groups for 4 outputs each
Current-sourcing Yes
output type acc. to IEC 61131, type 2 Yes
Short-circuit protection Yes; per channel, electronic
Response threshold, typ. 2.8 A
Limitation of inductive shutdown voltage to Switching capacity of the outputs 2L+ (-47 V)
on lamp load, max. 10 W
Load resistance range: lower limit 12 Ω
Load resistance range: upper limit 4 kΩ
Output voltage: for signal "1", min. L+ (-0.8 V)
Output current: for signal "1" rated value 2 A
Output current: for signal "1" permissible range, max. 2 A; with inductive load to IEC 60947-5-1, DC-13 / AC-15
Output current: for signal "0" residual current, max. 0.5 mA
Switching frequency: with resistive load, max. 100 Hz
Switching frequency: with inductive load, max. 0.1 Hz; 0.25 Hz at 25 °C
Switching frequency: on lamp load, max. 1 Hz
Total current of the outputs: Current per group, max. 4 A; For inductive load max. 2 channels per group
Cable length: unshielded, max. 30 m

Interrupts/diagnostics/status information 6

Substitute values connectable Yes; channel by channel, parameterizable
Alarms: Diagnostic alarm Yes; Parameterizable
Diagnoses: Short-circuit Yes; Outputs to ground; module by module
Diagnostics indication LED: Channel status display Yes; green LED
Diagnostics indication LED: for module diagnostics Yes; green/red LED
Diagnostics indication LED: For load voltage monitoring Yes; green LED

Potential separation 5

between the load voltages Yes
Potential separation channels: between the channels, in groups of 4
Potential separation channels: between the channels and backplane bus Yes
Potential separation channels: between the channels and the power supply of the No; 4 channels are non-isolated and 4 channels are isolated from supply
electronics voltage 1L+

Isolation 1

Isolation tested with 707 V DC (type test)

Degree and class of protection 1

IP degree of protection IP65/67

Standards, approvals, certificates 2

Suitable for safety-related tripping of standard modules Yes; from FS01
Highest safety class achievable for safety-related tripping of standard modules: Performance level according to ISO 13849-1 PL d

Security 2

signed firmware update Yes
data integrity Yes

Ambient conditions 3

Ambient temperature during operation: min. -30 °C
Ambient temperature during operation: max. 55 °C
Altitude during operation relating to sea level: Ambient air temperature-barometric pressure-altitude Up to max. 5 000 m, at installation height > 2 000 m additional restrictions

Connection method 3

Design of electrical connection for the inputs and outputs M12, 5-pole
Design of electrical connection for supply voltage M8, 4-pole
ET-Connection: ET-Connection M8, 4-pin, shielded

Version Classification 4

eClass 16 27-24-26-04
ETIM 10 EC001599
IDEA 4 3566
UNSPSC 15 32-15-17-05

General Product Approval Functional Saftey 2

China RoHS Manufacturer Declara- TUEV tion
Maritime application NK / Nippon Kaiji Ky- okai

Logistics 6

Net weight 0.218 kg
Country of origin DE
Shipping weight 0.718 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 01 Nov 2026
