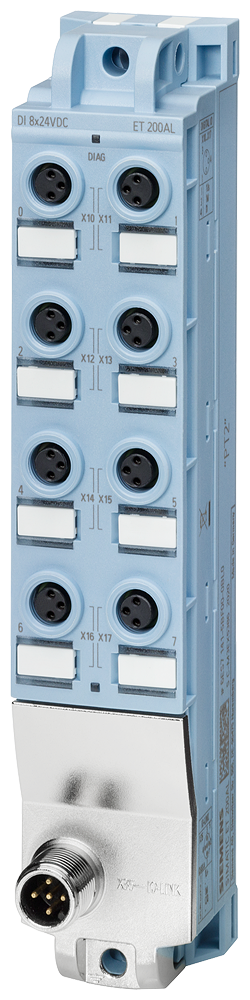

The Siemens 6ES7141-5BF00-0BL0 is a SIMATIC ET 200AL IO-Link input module with 8 channels of 24 V DC digital input, wired through 8x M8 connectors for direct field mounting. It reads sourcing (PNP) signals per IEC 61131 type 3 and reports channel data through IO-Link 1.1 at 38.4 kBd, in an IP65/67 housing built to run outside a control cabinet.
Pick this IO-Link variant over a hard-wired ET 200AL DI module when the connected sensors are IO-Link Port Class A devices: the 2.1 ms minimum cycle time and per-channel diagnostics run over the IO-Link master instead of individual wiring back to the station. The 0.7 A encoder-supply budget is shared across all 8 ports, so tally current-hungry sensors against that limit before wiring a full 8-channel load. IP65/67 sealing and a -30 to +55 degC range keep the module usable bolted directly to the machine, without an enclosure.
Distributed digital sensing on machine-mounted IO-Link networks - proximity sensors, photoelectric switches, and other IO-Link Port Class A field devices wired directly to the module without a control cabinet.
| Product type designation | IO-Link DI 8x24VDC |
|---|---|
| HW functional status | FS01 |
| Firmware version | V1.0.x |
| Vendor identification (VendorID) | 42 |
| Device identifier (DeviceID) | 229379 |
| Engineering with: IODD file | Yes |
| Load voltage 1L+: Rated value (DC) | 24 V; Supply from 1Us+ of the IO-Link master |
|---|---|
| Load voltage 1L+: permissible range, lower limit (DC) | 18 V |
| Load voltage 1L+: permissible range, upper limit (DC) | 30 V |
| Load voltage 1L+: Reverse polarity protection | Yes; Against destruction; encoder power supply outputs applied with reversed polarity |
| Current consumption (rated value) | 15 mA; without load |
|---|
| Part number | 6ES7141-5BF00-0BL0 |
|---|---|
| Type designation | IO-Link DI 8x24VDC |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047623411369 |
| ETIM class | EC001599 |
| eCl@ss | 27242604 |
| Number of outputs | 8; Supply from 1Us+ of the IO-Link master |
|---|---|
| 24 V encoder supply: Short-circuit protection | Yes; per module, electronic |
| 24 V encoder supply: Output current, max. | 0.7 A; Total current of all encoders (depending on IO-Link master supply via 1Us+) |
| Power loss, typ. | 1.5 W |
|---|
| Number of digital inputs | 8 |
|---|---|
| Sourcing/sinking input | P-reading |
| Input characteristic curve in accordance with IEC 61131, type 3 | Yes |
| Number of simultaneously controllable inputs all mounting positions: up to 55 °C, max. | 8 |
| Input voltage: Rated value (DC) | 24 V |
| Input voltage: for signal "0" | -30 to +5 V |
| Input voltage: for signal "1" | +11 to +30V |
| Input current: for signal "1", typ. | 3 mA |
| Input delay (for rated value of input voltage) for standard inputs: at "0" to "1", min. | 1.2 ms |
| Cable length: unshielded, max. | 30 m |
| Connectable encoders: 2-wire sensor | Yes |
|---|---|
| Connectable encoders: permissible quiescent current (2-wire sensor), max. | 1.5 mA |
| IO-Link protocol 1.1 | Yes |
|---|---|
| Transmission rate | 38.4 kBd (COM2) |
| Cycle time, min. | 2.1 ms |
| Size of process data, input per module | 1 byte |
| Size of process data, output per module | 0 byte |
| Supported IO-Link profiles | common profile |
| Cable length unshielded, max. | 20 m |
| Connection of IO-Link devices: Port type A | Yes |
| Alarms: Diagnostic alarm | Yes; Parameterizable |
|---|---|
| Diagnoses: short-circuit | Yes; Sensor supply to M; module by module |
| Diagnostics indication LED: Channel status display | Yes; green LED |
| Diagnostics indication LED: for module diagnostics | Yes; green/red LED |
| Potential separation channels: between the channels | No |
|---|---|
| Potential separation channels: between the channels and the power supply of the electronics | No |
| Isolation tested with | 707 V DC (type test) |
|---|
| IP degree of protection | IP65/67 |
|---|
| Ambient temperature during operation: min. | -30 °C |
|---|---|
| Ambient temperature during operation: max. | 55 °C |
| Design of electrical connection for the inputs and outputs | M8, 3-pole |
|---|---|
| Type of electrical connection for IO-Link | M12, 5-pin, A-coded |
| Width | 30 mm |
|---|---|
| Height | 159 mm |
| Depth | 40 mm |
| Weight, approx. | 124 g |
|---|
| eClass | 9 27-24-26-04 |
|---|---|
| ETIM | 10 EC001599 |
| IDEA | 4 3566 |
| UNSPSC | 15 32-15-17-05 |
| Net weight | 0.142 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 0.642 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated operational voltage of IO-Link DI 8x24VDC is 24 V AC.
The tariff (HS) code on file for IO-Link DI 8x24VDC is 85389091.
The EAN (GTIN) of IO-Link DI 8x24VDC is 4047623411369.
IO-Link DI 8x24VDC ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
