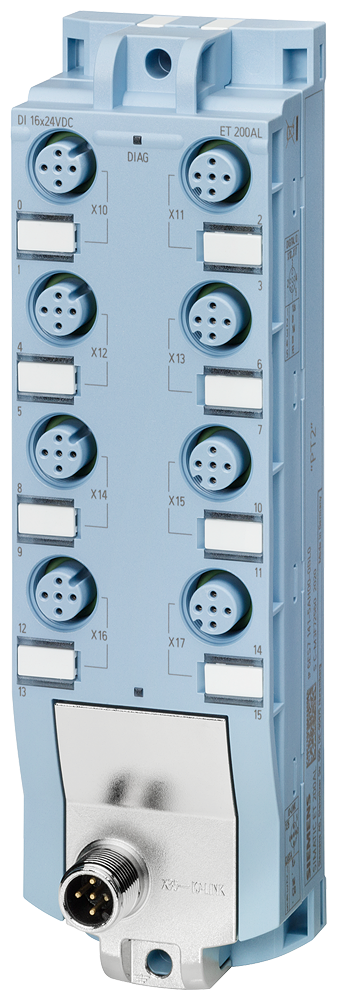

The Siemens 6ES7141-5AH00-0BL0 is a SIMATIC ET 200AL digital input module with 16 sink-type 24 V DC channels and IO-Link 1.1 Port Class A wiring through 8 M12 connectors, built for IP65/67 machine-mounted installation. It transmits 2 bytes of process data per module at a 2.5 ms minimum cycle time and operates from -30 to 55 C.
IO-Link Port Class A wiring is what separates this module from the plain non-IO-Link 16-channel/8xM12 variant: it registers on the IO-Link master with its own Vendor ID 42 / Device ID 229380, so its 16 inputs and diagnostics appear as IO-Link process and diagnostic data rather than raw I/O bits alone. Choose it when the station already runs an IO-Link master and centralized IODD-based parameterization or remote diagnostics is wanted for standard digital inputs. The verified data lists no safety-related tripping rating for this module, so it is not a substitute where PLd/SIL2 triggering from a standard module is required.
| Product type designation | IO-Link DI 16x24VDC |
|---|---|
| HW functional status | FS01 |
| Firmware version | V1.0.x |
| Vendor identification (VendorID) | 42 |
| Device identifier (DeviceID) | 229380 |
| Engineering with: IODD file | Yes |
| Load voltage 1L+: Rated value (DC) | 24 V; Supply from 1Us+ of the IO-Link master |
|---|---|
| Load voltage 1L+: permissible range, lower limit (DC) | 18 V |
| Load voltage 1L+: permissible range, upper limit (DC) | 30 V |
| Load voltage 1L+: Reverse polarity protection | Yes; Against destruction; encoder power supply outputs applied with reversed polarity |
| Current consumption (rated value) | 20 mA; without load |
|---|
| Part number | 6ES7141-5AH00-0BL0 |
|---|---|
| Type designation | IO-Link DI 16x24VDC |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047623411352 |
| ETIM class | EC001599 |
| eCl@ss | 27242604 |
| Number of outputs | 8; Supply from 1Us+ of the IO-Link master |
|---|---|
| 24 V encoder supply: Short-circuit protection | Yes; per module, electronic |
| 24 V encoder supply: Output current, max. | 0.7 A; Total current of all encoders (depending on IO-Link master supply via 1Us+) |
| Power loss, typ. | 2.4 W |
|---|
| Number of digital inputs | 16 |
|---|---|
| Sourcing/sinking input | P-reading |
| Input characteristic curve in accordance with IEC 61131, type 3 | Yes |
| Number of simultaneously controllable inputs all mounting positions: up to 55 °C, max. | 16 |
| Input voltage: Rated value (DC) | 24 V |
| Input voltage: for signal "0" | -30 to +5 V |
| Input voltage: for signal "1" | +11 to +30V |
| Input current: for signal "1", typ. | 3 mA |
| Input delay (for rated value of input voltage) for standard inputs: at "0" to "1", min. | 1.2 ms |
| Cable length: unshielded, max. | 30 m |
| Connectable encoders: 2-wire sensor | Yes |
|---|---|
| Connectable encoders: permissible quiescent current (2-wire sensor), max. | 1.5 mA |
| IO-Link protocol 1.1 | Yes |
|---|---|
| Transmission rate | 38.4 kBd (COM2) |
| Cycle time, min. | 2.5 ms |
| Size of process data, input per module | 2 byte |
| Size of process data, output per module | 0 byte |
| Supported IO-Link profiles | common profile |
| Cable length unshielded, max. | 20 m |
| Connection of IO-Link devices: Port type A | Yes |
| Alarms: Diagnostic alarm | Yes; Parameterizable |
|---|---|
| Diagnoses: Short-circuit | Yes; Sensor supply to M; module by module |
| Diagnostics indication LED: Channel status display | Yes; green LED |
| Diagnostics indication LED: for module diagnostics | Yes; green/red LED |
| Potential separation channels: between the channels | No |
|---|---|
| Potential separation channels: between the channels and the power supply of the electronics | No |
| Isolation tested with | 707 V DC (type test) |
|---|
| IP degree of protection | IP65/67 |
|---|
| Ambient temperature during operation: min. | -30 °C |
|---|---|
| Ambient temperature during operation: max. | 55 °C |
| Design of electrical connection for the inputs and outputs | M12, 5-pin, A-coded |
|---|---|
| Type of electrical connection for IO-Link | M12, 5-pin, A-coded |
| Width | 45 mm |
|---|---|
| Height | 159 mm |
| Depth | 40 mm |
| Weight, approx. | 155 g |
|---|
| eClass | 9 27-24-26-04 |
|---|---|
| ETIM | 10 EC001599 |
| IDEA | 4 3566 |
| UNSPSC | 15 32-15-17-05 |
| Net weight | 0.181 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 0.681 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
