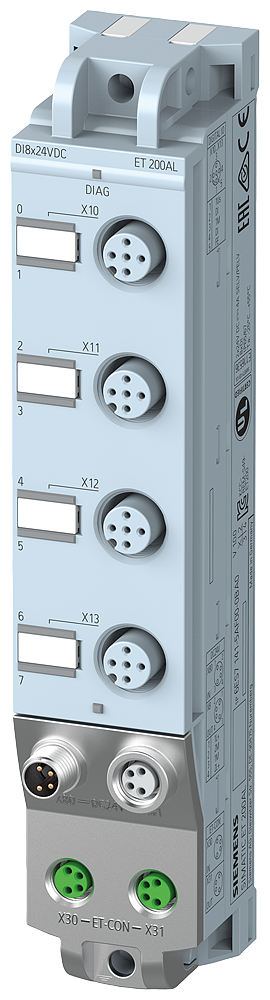

The Siemens 6ES7141-5AF00-0BA0 is a SIMATIC ET 200AL digital input module with 8 sink-type 24 V DC channels wired through 4 M12 connectors, built for IP65/67 machine-mounted installation without a control cabinet. It draws 25 mA quiescent current, supplies up to 0.7 A total to its 4 encoder outputs, and operates from -30 to 55 C.
IP65/67 M12-connectorized I/O is the reason to choose ET 200AL over a cabinet-mounted ET 200SP or ET 200pro module; it goes directly on the machine, removing the junction box between sensor and control cabinet. Support for safety-related tripping of standard modules from FS01 (PLd / Cat. 3 / SIL 2) means this standard input module can trigger a fail-safe function through an F-CPU's logic without a dedicated F-module, when the application's required PL/SIL is d or lower. The -30 to 55 C rating and up to 5000 m altitude cover most outdoor or unheated machine locations.
| Product type designation | DI 8x24VDC |
|---|---|
| HW functional status | FS06 |
| Firmware version | V2.0.x |
| Product function: I&M data | Yes; I&M0 to I&M3 |
| Engineering with: STEP 7 TIA Portal configurable/integrated from version | STEP 7 V13 SP1 or higher |
| Engineering with: STEP 7 configurable/integrated from version | V5.5 SP4 Hotfix 7 or higher |
| Engineering with: PROFIBUS from GSD version/GSD revision | GSD as of Revision 5 |
| Engineering with: PROFINET from GSD version/GSD revision | GSDML V2.3.1 |
| power supply according to NEC Class 2 required | No |
|---|---|
| Load voltage 1L+: Rated value (DC) | 24 V |
| Load voltage 1L+: permissible range, lower limit (DC) | 20.4 V |
| Load voltage 1L+: permissible range, upper limit (DC) | 28.8 V |
| Load voltage 1L+: Reverse polarity protection | Yes; Against destruction; encoder power supply outputs applied with reversed polarity |
| Current consumption (rated value) | 25 mA; without load |
|---|---|
| from load voltage 1L+ (unswitched voltage) | 4 A; Maximum value |
| from load voltage 2L+, max. | 4 A; Maximum value |
| Part number | 6ES7141-5AF00-0BA0 |
|---|---|
| Type designation | DI 8x24VDC |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047623405214 |
| ETIM class | EC001599 |
| eCl@ss | 27242604 |
| Number of outputs | 4 |
|---|---|
| 24 V encoder supply: Short-circuit protection | Yes; per module, electronic |
| 24 V encoder supply: Output current, max. | 0.7 A; Total current of all encoders |
| Power loss, typ. | 1.9 W |
|---|
| Number of digital inputs | 8 |
|---|---|
| Sourcing/sinking input | P-reading |
| Input characteristic curve in accordance with IEC 61131, type 3 | Yes |
| Number of simultaneously controllable inputs all mounting positions: up to 55 °C, max. | 8 |
| Input voltage: Rated value (DC) | 24 V |
| Input voltage: for signal "0" | -30 to +5 V |
| Input voltage: for signal "1" | +11 to +30V |
| Input current: for signal "1", typ. | 3.2 mA |
| Input delay (for rated value of input voltage) for standard inputs: at "0" to "1", min. | 1.2 ms |
| Cable length: unshielded, max. | 30 m |
| Connectable encoders: 2-wire sensor | Yes |
|---|---|
| Connectable encoders: permissible quiescent current (2-wire sensor), max. | 1.5 mA |
| Alarms: Diagnostic alarm | Yes; Parameterizable |
|---|---|
| Diagnoses: Short-circuit | Yes; Sensor supply to M; module by module |
| Diagnostics indication LED: Channel status display | Yes; green LED |
| Diagnostics indication LED: for module diagnostics | Yes; green/red LED |
| between the load voltages | Yes |
|---|---|
| Potential separation channels: between the channels | No |
| Potential separation channels: between the channels and backplane bus | Yes |
| Potential separation channels: between the channels and the power supply of the electronics | No |
| Isolation tested with | 707 V DC (type test) |
|---|
| IP degree of protection | IP65/67 |
|---|
| Suitable for safety-related tripping of standard modules | Yes; from FS01 |
|---|---|
| Highest safety class achievable for safety-related tripping of standard modules: Performance level according to ISO 13849-1 | PL d |
| signed firmware update | Yes |
|---|---|
| data integrity | Yes |
| Ambient temperature during operation: min. | -30 °C |
|---|---|
| Ambient temperature during operation: max. | 55 °C |
| Altitude during operation relating to sea level: Ambient air temperature-barometric pressure-altitude | Up to max. 5 000 m, at installation height > 2 000 m additional restrictions |
| Design of electrical connection for the inputs and outputs | M12, 5-pole |
|---|---|
| Design of electrical connection for supply voltage | M8, 4-pole |
| ET-Connection: ET-Connection | M8, 4-pin, shielded |
| Width | 30 mm |
|---|---|
| Height | 159 mm |
| eClass | 16 27-24-26-04 |
|---|---|
| ETIM | 10 EC001599 |
| IDEA | 4 3566 |
| UNSPSC | 15 32-15-17-05 |
| China RoHS Manufacturer Declara- | tion |
|---|
| Net weight | 0.164 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 0.664 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
