Part number
6ES7138-7FD00-0AB0
Model no
4F-DQ Ex(i) 17.4 V DC/40 mA
$1,313.42 On request Dispatch — · From TürkiyeGet a Quote
SIMATIC ET 200SP

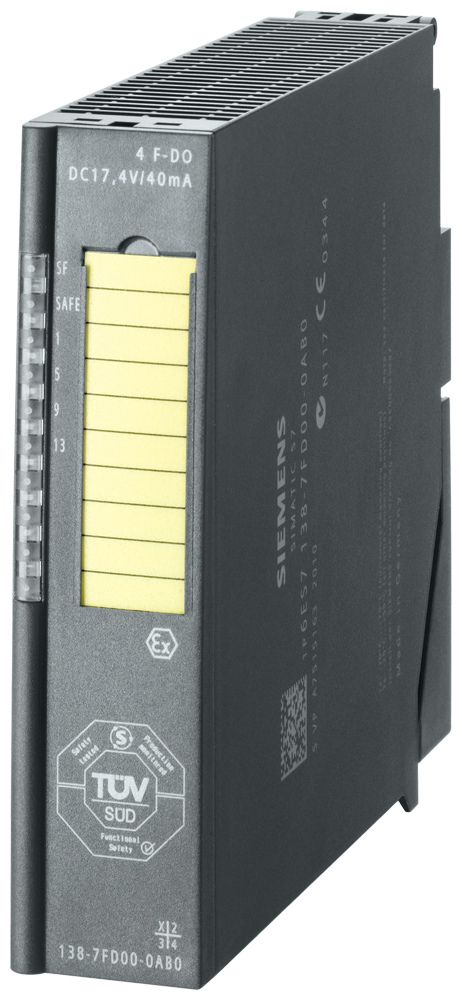

Siemens 6ES7138-7FD00-0AB0 SIMATIC ET 200iSP 4F-DO 17.4V/40mA Ex SIL3 Fail-safe Remote I/O Module

SIMATIC ET200iSP fail-safe 4-channel 17.4V/40mA digital output module, SIL3/PLe, Ex ib for Zone 1 areas.

Communication
PROFIsafe
EAN
4019169227353
Description

About the 4F-DQ Ex(i) 17.4 V DC/40 mA

The Siemens 6ES7138-7FD00-0AB0 is a fail-safe SIMATIC ET 200iSP digital output module with 4 intrinsically safe channels rated 17.4 V / 40 mA, built for Zone 1 gas areas and certified SIL 3 per IEC 61508, PLe per ISO 13849-1, and Category 4 per EN 954-1. It runs on 19.2-30 V DC and switches resistive loads up to 30 Hz.

Certifications & Standards

  • CE

Selection Notes

The 17.4 V / 40 mA output rating sizes this module for Ex ib field actuators, solenoids, relays, or indicator lamps whose intrinsically-safe entity parameters fit under that envelope; a higher-current load needs an isolating relay outside the hazardous area instead. Parallel switching of two channels is supported for load uprating when one channel's 40 mA is not enough for a single device. The SIL 3 / PLe / Category 4 rating puts the fail-safe shutdown function inside the I/O module itself, without needing an external safety relay.

Specification

Full specification

78 values · Last verified 01 Nov 2026

General information 1

Product type designation 4F-DQ Ex(i) 17.4 V DC/40 mA

Installation type/mounting 4

Rack mounting No
Front mounting Yes
Rail mounting Yes
Wall mounting/direct mounting Yes

Supply voltage 3

Type of supply voltage DC
permissible range, lower limit (DC) 19.2 V
permissible range, upper limit (DC) 30 V
Show all 78 specifications ↓ Show less ↑70 more values in Identification, Input current, Power loss, Hardware configuration, Digital outputs, Interfaces, Protocols, Interrupts/diagnostics/status information, Potential separation, Permissible potential difference, Isolation, Degree and class of protection, Standards, approvals, certificates, Connection method, Dimensions, Weights, Version Classification, Logistics.

Identification 7

Part number 6ES7138-7FD00-0AB0
Type designation 4F-DQ Ex(i) 17.4 V DC/40 mA
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
EAN 4019169227353

Input current 2

Current consumption, typ. 340 mA
from load voltage L+ (without load), max. 510 mA; int. Powerbus

Power loss 1

Power loss, max. 5.3 W

Hardware configuration 1

Fieldbus connection via separate transceiver Yes

Digital outputs 20

Type of digital output Transistor
Number of digital outputs 4
Short-circuit protection Yes
Response threshold, typ. Depending on the "short-circuit level" parameter
Controlling a digital input No
No-load voltage Uao (DC) 17.4 V
Internal resistor Ri 167 Ω
Load resistance range: lower limit 270 Ω
Load resistance range: upper limit 18 kΩ
Trend key points E: Voltage Ue (DC) 10.7 V
Trend key points E: Current Ie 40 mA
Output voltage: Type of output voltage DC
Output voltage: for signal "1", max. 17.4 V
Output current: for signal "0" residual current, max. 10 µA
Parallel switching of two outputs: for uprating Yes
Parallel switching of two outputs: for redundant control of a load No
Switching frequency: with resistive load, max. 30 Hz
Switching frequency: with inductive load, max. 2 Hz
Cable length: shielded, max. 500 m
Cable length: unshielded, max. 500 m

Interfaces 2

Number of PROFINET interfaces 0
Number of RS 485 interfaces 0

Protocols 3

Supports protocol for PROFINET IO No
PROFIsafe Yes
PROFIBUS No

Interrupts/diagnostics/status information 7

Substitute values connectable Yes
Alarms: Diagnostic alarm Yes; Parameterizable
Diagnoses: Diagnostic information readable Yes
Diagnoses: Wire break Yes
Diagnoses: Short-circuit Yes
Diagnostics indication LED: Group error SF (red) Yes
Diagnostics indication LED: Status indicator digital output (green) Yes

Potential separation 2

Potential separation digital outputs: between the channels No
Potential separation digital outputs: between the channels and backplane bus Yes

Permissible potential difference 1

between different circuits 60 V DC/30 V AC

Isolation 1

Isolation tested with 370V for 1 min

Degree and class of protection 1

IP degree of protection IP20

Standards, approvals, certificates 9

CE mark Yes
Suitable for safety functions Yes
reference designation according to IEC 81346-2 (2009) K
Highest safety class achievable in safety mode: acc. to EN 954 Cat. 4
Highest safety class achievable in safety mode: Performance level according to ISO 13849-1 PLe
Highest safety class achievable in safety mode: SIL acc. to IEC 61508 SIL 3
Use in hazardous areas: Explosion protection category for gas ATEX gas explosion protection, Zone 1
Use in hazardous areas: associated equipment (Ex ia) Yes
Use in hazardous areas: associated equipment (Ex ib) Yes

Connection method 1

Design of electrical connection Screw/spring-type terminal

Dimensions 3

Width 30 mm
Height 129 mm
Depth 136.5 mm

Weights 1

Weight, approx. 285 g

Version Classification 4

eClass 16 27-24-26-04
ETIM 10 EC001599
IDEA 4 3566
UNSPSC 15 32-15-17-05

Logistics 4

Shipping weight 0.785 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 01 Nov 2026

Documents

Documents for 6ES7138-7FD00-0AB0

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • ATEX
  • CE mark
  • Suitable for safety functions
Quick answers

Questions about the 4F-DQ Ex(i) 17.4 V DC/40 mA

What is the HS code of 4F-DQ Ex(i) 17.4 V DC/40 mA for customs?

The tariff (HS) code on file for 4F-DQ Ex(i) 17.4 V DC/40 mA is 85389091.

What is the EAN of 4F-DQ Ex(i) 17.4 V DC/40 mA?

The EAN (GTIN) of 4F-DQ Ex(i) 17.4 V DC/40 mA is 4019169227353.

Where does 4F-DQ Ex(i) 17.4 V DC/40 mA ship from, and how fast?

4F-DQ Ex(i) 17.4 V DC/40 mA ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
