Part number
6ES7138-6DB00-0BB1
Model no
TM Pulse 2x24 V
$461.61 Low stock Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
Manufacturer phase-out

Siemens has announced the end of 6ES7138-6DB00-0BB1

Once production ends, supply depends on remaining stock.

No replacement announced yet. Tell us the application and we will propose an alternative.

SIMATIC ET 200SP

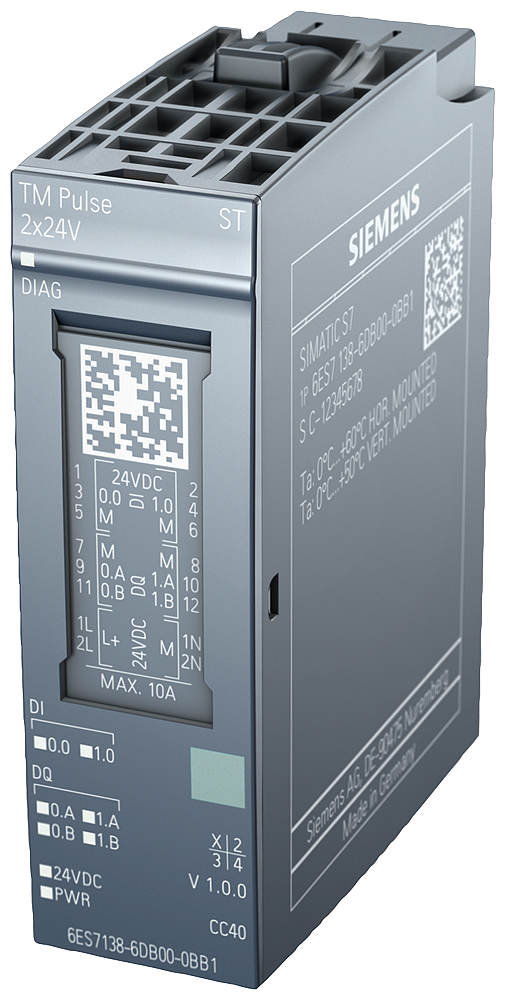

Siemens 6ES7138-6DB00-0BB1 ET 200SP TM Pulse 2x24V PWM/Pulse Output Module

SIMATIC ET 200SP TM Pulse module, 2x 24V PWM/pulse outputs, 2A/channel, for proportional valves and DC motors.

Rated current
2 A
Rated operational voltage
24 V AC
Communication
to standard PROFIBUS master, to standard PROFINET controller
EAN
4047623406334
Description

About the TM Pulse 2x24 V

The Siemens 6ES7138-6DB00-0BB1 is a SIMATIC ET 200SP TM Pulse module with 2 PWM/pulse output channels rated 2 A at 24 V DC, built for driving proportional valves and DC motors directly from the I/O station. Each channel supports pulse-width modulation up to 100 kHz in High Speed mode, current measurement, and closed-loop current control, with a shared 24 V encoder supply for feedback sensors.

Selection Notes

The 2 A/2 A channel rating with a High Speed output mode up to 100 kHz separates this module from a standard DQ module: the High Speed path derates current to 0.1 A, so it suits proportional-valve dithering and fast pulse trains rather than direct 2 A loads at high frequency, while the Standard output path holds the full 2 A at up to 10 kHz. Both channels share one 300 mA, 24 V encoder supply, so total sensor feedback current across the pair is the limiting factor when wiring two proportional valves with position feedback. Built-in current measurement and closed-loop current control on each channel remove the need for an external valve driver in ET 200SP stations that already run S7-1200/1500 or PROFINET/PROFIBUS masters.

Applications

Direct control of proportional hydraulic/pneumatic valves and small DC motors from a decentralized ET 200SP station, including dithered PWM valve drive, frequency/pulse-train output for stepper-style positioning, and closed-loop current-controlled valve actuation.

Specification

Full specification

132 values · Last verified 01 Nov 2026

General information 12

Product type designation TM Pulse 2x24 V
HW functional status From FS03
Firmware version V1.0
FW update possible Yes
usable BaseUnits BU type B1
Color code for module-specific color-coded label CC40
Product function: I&M data Yes; I&M 0
Product function: Isochronous mode Yes
Engineering with: STEP 7 TIA Portal configurable/integrated from version V13 SP1 + HSP
Engineering with: STEP 7 configurable/integrated from version V5.5 SP4 and higher
Engineering with: PROFIBUS from GSD version/GSD revision GSD Revision 5
Engineering with: PROFINET from GSD version/GSD revision GSDML V2.31

Supply voltage 6

Rated value (DC) 24 V
Load voltage L+: Rated value (DC) 24 V
Load voltage L+: permissible range, lower limit (DC) 19.2 V
Load voltage L+: permissible range, upper limit (DC) 28.8 V
Load voltage L+: Short-circuit protection Yes
Load voltage L+: Reverse polarity protection Yes; against destruction

Input current 1

Current consumption, max. 70 mA; without load
Show all 132 specifications ↓ Show less ↑113 more values in Identification, Encoder supply, Power loss, Address area, Hardware configuration, Digital inputs, Digital outputs, Interfaces, Isochronous mode, Interrupts/diagnostics/status information, Integrated Functions, Potential separation, Isolation, Standards, approvals, certificates, Ambient conditions, Version Classification, General Product Approval, Logistics.

Identification 10

Part number 6ES7138-6DB00-0BB1
Type designation TM Pulse 2x24 V
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Phase-out announced by the manufacturer
EAN 4047623406334
ETIM class EC001601
eCl@ss 27242605

Encoder supply 4

Number of outputs 2; A common 24V encoder supply for both channels
24 V encoder supply: 24 V Yes; L+ (-0.8 V)
24 V encoder supply: Short-circuit protection Yes; per module, electronic
24 V encoder supply: Output current, max. 300 mA

Power loss 1

Power loss, typ. 1.7 W

Address area 2

Address space per module: Inputs 16 byte; 8 per channel
Address space per module: Outputs 24 byte; 12 per channel

Hardware configuration 3

Automatic encoding Yes
Mechanical coding element Yes
Type of mechanical coding element type C

Digital inputs 13

Number of digital inputs 2; 1 per channel
Digital inputs, parameterizable Yes
Input characteristic curve in accordance with IEC 61131, type 3 Yes
Digital input functions, parameterizable: Freely usable digital input Yes
Digital input functions, parameterizable: HW enable for digital output Yes
Input voltage: Type of input voltage DC
Input voltage: Rated value (DC) 24 V
Input voltage: for signal "0" -5 ... +5 V
Input voltage: for signal "1" +11 to +30V
Input voltage: permissible voltage at input, min. -30 V; -5 V continuous, -30 V brief reverse polarity protection
Input voltage: permissible voltage at input, max. 30 V
Input current: for signal "1", typ. 2.5 mA
Input delay (for rated value of input voltage) for standard inputs: parameterizable Yes; none / 0.05 / 0.1 / 0.4 / 0.8 / 1.6 / 3.2 / 12.8 / 20 ms

Digital outputs 49

Type of digital output P- and M-switching
Number of digital outputs 2; 1 per channel
Current-sinking Yes
Current-sourcing Yes
Digital outputs, parameterizable Yes
Short-circuit protection Yes; electronic/thermal
Response threshold, typ. 6.8 A with Standard output, 2 A with High Speed output
Limitation of inductive shutdown voltage to -0.8 V
Controlling a digital input Yes
Accuracy of pulse duration ±100 ppm ±0.5 µs with High Speed output, ±100 ppm ±9 µs with Standard output
minimum pulse duration 1.5 µs; With High Speed output, 10 µs with Standard output
Digital output functions, parameterizable: Freely usable digital output Yes
Digital output functions, parameterizable: PWM output Yes
Digital output functions, parameterizable: Number, max. 2; 1 per channel
Digital output functions, parameterizable: Cycle duration, parameterizable Yes; Max. 85 s
Digital output functions, parameterizable: ON period, min. 0%
Digital output functions, parameterizable: ON period, max. 100 %
Digital output functions, parameterizable: Resolution of the duty cycle 0.0036 %; For S7 analog format, min. 20 ns
Digital output functions, parameterizable: Connection of a proportional valve Yes
Digital output functions, parameterizable: Dithering Yes
Digital output functions, parameterizable: Frequency adjustable Yes
Digital output functions, parameterizable: Amplitude adjustable Yes
Digital output functions, parameterizable: Current measurement Yes
Digital output functions, parameterizable: Current control Yes
Digital output functions, parameterizable: Connection of a DC motor Yes
Digital output functions, parameterizable: ON-delay Yes
Digital output functions, parameterizable: OFF-delay Yes
Digital output functions, parameterizable: Frequency output Yes
Digital output functions, parameterizable: Pulse train Yes
Digital output functions, parameterizable: Pulse output Yes
Switching capacity of the outputs: with resistive load, max. 2 A
Switching capacity of the outputs: on lamp load, max. 10 W; 1 W with High Speed output
Load resistance range: lower limit 12 Ω; 240 ohm with High Speed output
Load resistance range: upper limit 12 kΩ
Output voltage: Type of output voltage DC
Output voltage: for signal "0", max. 1 V
Output voltage: for signal "1", min. 23.2 V; L+ (-0.8 V)
Output current: for signal "1" rated value 2 A; 0.1 A with High Speed output, observe derating
Output delay with resistive load: "0" to "1", typ. 0 µs; With High Speed output, 4.5 µs with Standard output
Output delay with resistive load: "0" to "1", max. 0.8 µs; With High Speed output, 9 µs with Standard output
Output delay with resistive load: "1" to "0", typ. 0 µs; With High Speed output, 4.5 µs with Standard output
Output delay with resistive load: "1" to "0", max. 0.8 µs; With High Speed output, 9 µs with Standard output
Parallel switching of two outputs: for uprating Yes
Switching frequency: with resistive load, max. 100 kHz; With High Speed output, 10 kHz with standard output
Switching frequency: with inductive load, max. 100 kHz; With High Speed output, 10 kHz with standard output
Switching frequency: on lamp load, max. 10 Hz
Total current of the outputs: Current per channel, max. 2 A
Total current of the outputs: Current per group, max. 4 A
Total current of the outputs: Current per module, max. 4 A

Interfaces 1

Number of RS 485 interfaces 0

Isochronous mode 2

Bus cycle time (TDP), min. 250 µs; with 1 channel configuration, 375 µs with 2 channel configuration
Jitter, max. 1 µs; typically ±

Interrupts/diagnostics/status information 8

Diagnostics function Yes
Substitute values connectable Yes; Parameterizable
Alarms: Diagnostic alarm Yes
Diagnoses: Monitoring the supply voltage Yes
Diagnoses: Short-circuit Yes
Diagnostics indication LED: Monitoring of the supply voltage (PWR-LED) Yes; green PWR LED
Diagnostics indication LED: Channel status display Yes
Diagnostics indication LED: for module diagnostics Yes; green/red DIAG LED

Integrated Functions 1

Counter No

Potential separation 2

Potential separation channels: between the channels No
Potential separation channels: between the channels and backplane bus Yes

Isolation 1

Isolation tested with 707 V DC (type test)

Standards, approvals, certificates 1

Suitable for safety functions No

Ambient conditions 3

Ambient temperature during operation: horizontal installation, min. -30 °C
Ambient temperature during operation: vertical installation, min. -30 °C
Altitude during operation relating to sea level: Installation altitude above sea level, max. 5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual

Version Classification 4

eClass 16 27-24-26-05
ETIM 10 EC001601
IDEA 4 3567
UNSPSC 15 32-15-17-05

General Product Approval 2

Miscellaneous Manufacturer Declara-tion For use in hazard-
General Product Approval ous locations

Logistics 6

Net weight 0.059 kg
Country of origin DE
Shipping weight 0.559 kg
Ships from Türkiye
Dispatch 18 Nov
Stock Low stock

Source: manufacturer data · Last verified: 01 Nov 2026

Documents

Documents for 6ES7138-6DB00-0BB1

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the TM Pulse 2x24 V

What is the rated current of TM Pulse 2x24 V?

The rated current of TM Pulse 2x24 V is 2 A.

Which supply voltage is TM Pulse 2x24 V rated for?

The rated operational voltage of TM Pulse 2x24 V is 24 V AC.

What is the HS code of TM Pulse 2x24 V for customs?

The tariff (HS) code on file for TM Pulse 2x24 V is 85389091.

What is the EAN of TM Pulse 2x24 V?

The EAN (GTIN) of TM Pulse 2x24 V is 4047623406334.

Where does TM Pulse 2x24 V ship from, and how fast?

TM Pulse 2x24 V ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
