Part number
6ES7138-6AA01-0BA0
Model no
TM Count 1x24V
$273.24 In stock · 27 Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
SIMATIC ET 200SP

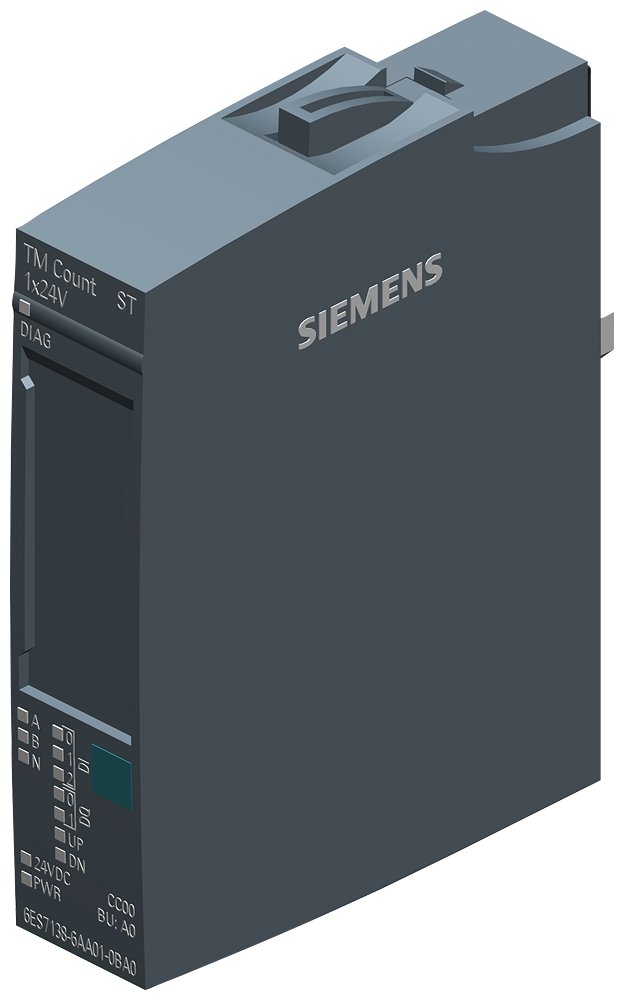

Siemens 6ES7138-6AA01-0BA0 SIMATIC ET 200SP TM Count 1x24V Counter Module 800kHz Remote I/O Module

ET 200SP TM Count 1x24V: 1 counter channel, 800kHz max, 3 DI/2 DQ, BU type A0.

Rated current
0.5 A
Rated operational voltage
24 V DC
Communication
to standard PROFIBUS master, to standard PROFINET controller
EAN
4047623410607
Description

About the TM Count 1x24V

The Siemens 6ES7138-6AA01-0BA0 is a SIMATIC ET 200SP TM Count 1x24V module with one incremental or pulse encoder counter channel running up to 800 kHz counting frequency (quadruple evaluation), plus 3 digital inputs and 2 digital outputs. It mounts on BaseUnit type A0 and supports S7-1500 Motion Control high-speed counter technology objects.

Selection Notes

This module sits alongside DI/DQ modules in an ET 200SP station specifically to bring in encoder counting without a dedicated PLC input card. The 800 kHz max counting frequency (quadruple evaluation) covers most incremental encoders used for length or position feedback; above that, Fast mode trades address space (4 bytes) for lower latency. Two onboard comparators let the counter trigger outputs directly at preset values without a program scan cycle, useful for cut-to-length or batch-count applications.

Applications

Length measurement, batch counting, and simple positioning feedback on ET 200SP remote I/O stations tied to SIMATIC S7-1500 controllers, including motion-control axes that need a hardware pulse or encoder input.

Specification

Full specification

161 values · Last verified 01 Nov 2026

General information 11

Product type designation TM Count 1x24V
Firmware version V2.0
FW update possible Yes
usable BaseUnits BU type A0
Color code for module-specific color-coded label CC00
Product function: I&M data Yes; I&M0 to I&M3
Product function: Isochronous mode Yes
Engineering with: STEP 7 TIA Portal configurable/integrated from version STEP 7 V15 SP1 or higher
Engineering with: STEP 7 configurable/integrated from version V5.6 and higher
Engineering with: PROFIBUS from GSD version/GSD revision One GSD file each, Revision 3 and 5 and higher
Engineering with: PROFINET from GSD version/GSD revision GSDML V2.34

Supply voltage 5

Rated value (DC) 24 V
Load voltage L+: Rated value (DC) 24 V
Load voltage L+: permissible range, lower limit (DC) 19.2 V
Load voltage L+: permissible range, upper limit (DC) 28.8 V
Load voltage L+: Reverse polarity protection Yes

Input current 1

Current consumption, max. 60 mA; without load
Show all 161 specifications ↓ Show less ↑144 more values in Identification, Encoder supply, Power loss, Address area, Hardware configuration, Digital inputs, Digital outputs, Encoder, Interfaces, Interrupts/diagnostics/status information, Integrated Functions, Potential separation, Isolation, Standards, approvals, certificates, Ambient conditions, Decentralized operation, Dimensions, Weights, EClass 6 27-24-26-05, General Product Approval, For use in hazard-Maritime application ous locations, Logistics.

Identification 10

Part number 6ES7138-6AA01-0BA0
Type designation TM Count 1x24V
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4047623410607
ETIM class EC001601
eCl@ss 27242605

Encoder supply 4

Number of outputs 1
24 V encoder supply: 24 V Yes; L+ (-0.8 V)
24 V encoder supply: Short-circuit protection Yes; electronic/thermal
24 V encoder supply: Output current, max. 300 mA

Power loss 1

Power loss, typ. 1 W

Address area 2

Address space per module: Inputs 16 byte; 4 bytes in Fast mode
Address space per module: Outputs 12 byte; 4 bytes for Motion Control, 0 bytes for Fast mode

Hardware configuration 3

Automatic encoding Yes
Mechanical coding element Yes
Type of mechanical coding element type B

Digital inputs 17

Number of digital inputs 3
Digital inputs, parameterizable Yes
Input characteristic curve in accordance with IEC 61131, type 3 Yes
Digital input functions, parameterizable: Gate start/stop Yes
Digital input functions, parameterizable: Capture Yes
Digital input functions, parameterizable: Synchronization Yes
Digital input functions, parameterizable: Freely usable digital input Yes
Digital input functions, parameterizable: Probe Yes
Input voltage: Rated value (DC) 24 V
Input voltage: for signal "0" -5 ... +5 V
Input voltage: for signal "1" +11 to +30V
Input voltage: permissible voltage at input, min. -30 V; -5 V continuous, -30 V brief reverse polarity protection
Input voltage: permissible voltage at input, max. 30 V
Input current: for signal "1", typ. 2.5 mA
Input delay (for rated value of input voltage) for standard inputs: parameterizable for technological functions Yes; none / 0.05 / 0.1 / 0.4 / 0.8 / 1.6 / 3.2 / 12.8 / 20 ms
Cable length: shielded, max. 1 000 m
Cable length: unshielded, max. 600 m

Digital outputs 26

Type of digital output Transistor
Number of digital outputs 2
Digital outputs, parameterizable Yes
Short-circuit protection Yes; electronic/thermal
Response threshold, typ. 1 A
Limitation of inductive shutdown voltage to L+ (-53 V)
Controlling a digital input Yes
Digital output functions, parameterizable: Switching tripped by comparison values Yes
Digital output functions, parameterizable: Freely usable digital output Yes
Switching capacity of the outputs: with resistive load, max. 0.5 A; Per digital output
Switching capacity of the outputs: on lamp load, max. 5 W
Load resistance range: lower limit 48 Ω
Load resistance range: upper limit 12 kΩ
Output voltage: for signal "1", min. 23.2 V; L+ (-0.8 V)
Output current: for signal "1" rated value 0.5 A; Per digital output
Output current: for signal "1" permissible range, max. 0.6 A; Per digital output
Output current: for signal "1" minimum load current 2 mA
Output current: for signal "0" residual current, max. 0.5 mA
Output delay with resistive load: "0" to "1", max. 50 µs
Output delay with resistive load: "1" to "0", max. 50 µs
Switching frequency: with resistive load, max. 10 kHz
Switching frequency: with inductive load, max. 0.5 Hz; Acc. to IEC 60947-5-1, DC-13; observe derating curve
Switching frequency: on lamp load, max. 10 Hz
Total current of the outputs: Current per module, max. 1 A
Cable length: shielded, max. 1 000 m
Cable length: unshielded, max. 600 m

Encoder 11

Connectable encoders: 2-wire sensor Yes
Connectable encoders: permissible quiescent current (2-wire sensor), max. 1.5 mA
Encoder signals, incremental encoder (asymmetrical): Input voltage 24 V
Encoder signals, incremental encoder (asymmetrical): Input frequency, max. 200 kHz
Encoder signals, incremental encoder (asymmetrical): Counting frequency, max. 800 kHz; with quadruple evaluation
Encoder signals, incremental encoder (asymmetrical): Cable length, shielded, max. 600 m; depending on input frequency, encoder and cable quality; max. 50 m at 200 kHz
Encoder signals, incremental encoder (asymmetrical): Signal filter, parameterizable Yes
Encoder signals, incremental encoder (asymmetrical): Incremental encoder with A/B tracks, 90° phase offset Yes
Encoder signals, incremental encoder (asymmetrical): pulse encoder Yes
Interface types: Sourcing/sinking input Yes
Interface types: Input characteristic curve in accordance with IEC 61131, type 3 Yes

Interfaces 1

Number of RS 485 interfaces 0

Interrupts/diagnostics/status information 13

Substitute values connectable Yes; Parameterizable
Alarms: Diagnostic alarm Yes
Alarms: Hardware interrupt Yes
Diagnoses: Monitoring the supply voltage Yes
Diagnoses: Wire break Yes
Diagnoses: Short-circuit Yes
Diagnoses: A/B transition error at incremental encoder Yes
Diagnoses: Group error Yes
Diagnostics indication LED: Monitoring of the supply voltage (PWR-LED) Yes; green PWR LED
Diagnostics indication LED: Channel status display Yes; green LED
Diagnostics indication LED: for module diagnostics Yes; green/red DIAG LED
Diagnostics indication LED: Status indicator forward counting (green) Yes
Diagnostics indication LED: Status indicator backward counting (green) Yes

Integrated Functions 27

Counter Yes
Number of counters 1
Counting frequency, max. 800 kHz; with quadruple evaluation
Fast mode Yes
Counting functions: Can be used with TO High_Speed_Counter Yes
Counting functions: Continuous counting Yes
Counting functions: Counter response parameterizable Yes
Counting functions: Hardware gate via digital input Yes
Counting functions: Software gate Yes
Counting functions: Event-controlled stop Yes
Counting functions: Synchronization via digital input Yes
Counting functions: Counting range, parameterizable Comparator Yes
Counting functions: Number of comparators 2
Counting functions: Direction dependency Yes
Counting functions: Can be changed from user program Yes
Position detection: Incremental acquisition Yes
Position detection: Suitable for S7-1500 Motion Control Yes
Measuring functions: Measuring time, parameterizable Yes
Measuring functions: Dynamic measurement period adjustment Yes
Measuring functions: Number of thresholds, parameterizable Measuring range 2
Measuring functions: Frequency measurement, min. 0.04 Hz
Measuring functions: Frequency measurement, max. 800 kHz
Measuring functions: Cycle duration measurement, min. 1.25 µs
Measuring functions: Cycle duration measurement, max. Accuracy 25 s
Measuring functions: Frequency measurement 100 ppm; depending on measuring interval and signal evaluation
Measuring functions: Cycle duration measurement 100 ppm; depending on measuring interval and signal evaluation
Measuring functions: Velocity measurement 100 ppm; depending on measuring interval and signal evaluation

Potential separation 1

Potential separation channels: between the channels and backplane bus Yes

Isolation 1

Isolation tested with 707 V DC (type test)

Standards, approvals, certificates 1

Suitable for safety functions No

Ambient conditions 4

Ambient temperature during operation: horizontal installation, min. -30 °C
Ambient temperature during operation: vertical installation, min. -30 °C
Altitude during operation relating to sea level: Installation altitude above sea level, max. 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual
Absolute humidity: dew point, min. -60 °C; suitable for dry room applications

Decentralized operation 6

to SIMATIC S7-300 Yes
to SIMATIC S7-400 Yes
to SIMATIC S7-1200 Yes
to SIMATIC S7-1500 Yes
to standard PROFIBUS master Yes
to standard PROFINET controller Yes

Dimensions 3

Width 15 mm
Height 73 mm
Depth 58 mm

Weights 1

Weight, approx. 45 g

EClass 6 27-24-26-05 3

ETIM 10 EC001601
IDEA 4 3567
UNSPSC 15 32-15-17-05

General Product Approval 2

Miscellaneous Manufacturer Declara-tion For use in hazard-
General Product Approval ous locations

For use in hazard-Maritime application ous locations 1

CCC-Ex NK / Nippon Kaiji Ky- okai

Logistics 6

Net weight 0.05 kg
Country of origin DE
Shipping weight 0.55 kg
Ships from Türkiye
Dispatch 18 Nov
Stock In stock

Source: manufacturer data · Last verified: 01 Nov 2026

Documents

Documents for 6ES7138-6AA01-0BA0

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the TM Count 1x24V

What is the rated current of TM Count 1x24V?

The rated current of TM Count 1x24V is 0.5 A.

Which supply voltage is TM Count 1x24V rated for?

The rated operational voltage of TM Count 1x24V is 24 V DC.

What is the HS code of TM Count 1x24V for customs?

The tariff (HS) code on file for TM Count 1x24V is 85389091.

What is the EAN of TM Count 1x24V?

The EAN (GTIN) of TM Count 1x24V is 4047623410607.

Where does TM Count 1x24V ship from, and how fast?

TM Count 1x24V ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
