Part number
6ES7137-6EA00-0BA0
Model no
CM 1x CAN ST
$444.02 On request Dispatch — · From TürkiyeGet a Quote
SIMATIC ET 200SP

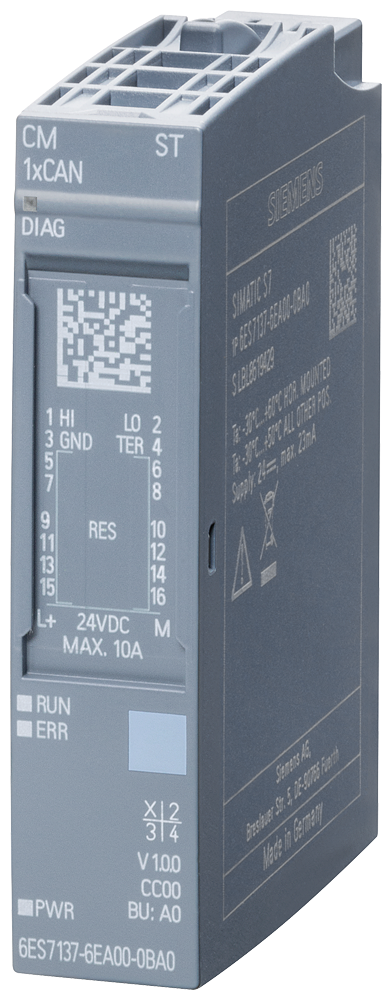

Siemens 6ES7137-6EA00-0BA0 SIMATIC ET 200SP CM CAN Gateway CANopen PLC Communication Module

SIMATIC ET 200SP CM CAN gateway, CANopen CiA301/302, 1Mbit/s, up to 60 devices, IP20.

Rated operational voltage
24 V AC
Communication
CAN 2.0A/B, CANopen CiA 301/302
EAN
4047618108908
Description

About the CM 1x CAN ST

The Siemens 6ES7137-6EA00-0BA0 is a SIMATIC ET 200SP communication module, CM CAN, that acts as a gateway to CAN 2.0A/B and CANopen networks, working as CANopen Manager or Slave per CiA 301/302. It transmits at up to 1,000 kbit/s to as many as 60 devices, with IP20 protection and 500 V AC isolation between the backplane bus and the interface.

Certifications & Standards

  • CE
  • UL
  • RCM
  • EAC
  • RoHS

Selection Notes

The 60-device limit and 128-PDO capacity size the 6ES7137-6EA00-0BA0 for a mid-sized CAN or CANopen segment integrated into an ET 200SP station rather than a large standalone CAN network. Its dual CANopen Manager/Slave capability per CiA 301/302 means the same module can either host the CAN segment from the S7-1200/S7-1500 side or act as a CANopen node on a larger master network, avoiding a separate protocol converter.

Specification

Full specification

81 values · Last verified 01 Nov 2026

General information 9

Product type designation CM 1x CAN ST
Firmware version V1.2.x
FW update possible Yes
usable BaseUnits BU type A0
Color code for module-specific color-coded label CC00
Product function: I&M data Yes; I&M0 to I&M3
Product function: Module swapping during operation (hot swapping) Yes
Product function: Isochronous mode No
Engineering with: STEP 7 TIA Portal configurable/integrated from version STEP 7 V15.1 or higher

Supply voltage 4

Rated value (DC) 24 V
permissible range, lower limit (DC) 19.2 V
permissible range, upper limit (DC) 28.8 V
Reverse polarity protection Yes

Input current 2

Current consumption, typ. 20 mA
Current consumption, max. 25 mA
Show all 81 specifications ↓ Show less ↑66 more values in Identification, Power loss, Address area, 1. Interface, Interrupts/diagnostics/status information, Potential separation, Isolation, Standards, approvals, certificates, Ambient conditions, Decentralized operation, Dimensions, Weights, EClass 9.1 27-24-26-08, Logistics.

Identification 10

Part number 6ES7137-6EA00-0BA0
Type designation CM 1x CAN ST
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4047618108908
ETIM class EC001604
eCl@ss 27242608

Power loss 1

Power loss, typ. 0.5 W

Address area 1

Address space per module: Address space per module, max. 256 byte

1. Interface 14

Interface type CAN according to CiA 303-1
Isolated Yes; 500 V AC or 707 V DC
Interface types: Number of ports 1
Interface types: Design of the connection Push-in terminal
CAN: CAN operating modes CAN Standard CAN 2.0A/B; CANopen Manager / Slave acc. to CiA
CAN: Specification acc. to CiA CiA 301 & CiA 302
CAN: Transmission rate, min. 10 kbit/s
CAN: Transmission rate, max. 1 000 kbit/s
CAN: max. number of devices 60
CAN: Number of SDOs in parallel 16; Parallel
CAN: Number of PDOs Services 128; Send / receive
CAN: Node/life-guarding Yes
CAN: Heartbeat Yes
CAN: SYNC Yes

Interrupts/diagnostics/status information 6

Alarms Yes
Diagnostics function Yes
Diagnostics indication LED: RUN LED Yes
Diagnostics indication LED: ERROR LED Yes
Diagnostics indication LED: MAINT LED No
Diagnostics indication LED: Monitoring of the supply voltage (PWR-LED) Yes; green PWR LED

Potential separation 1

between backplane bus and interface Yes

Isolation 1

Isolation tested with 707 V DC (type test)

Standards, approvals, certificates 11

CE mark Yes
UL approval Yes
RCM (formerly C-TICK) Yes
KC approval Yes; Reg. No.: R-R-S49-ET200SPCMCAN
EAC (formerly Gost-R) Yes
RoHS conformity Yes
Ecological footprint: environmental product declaration Global warming potential Yes
Ecological footprint: global warming potential, (total) [CO2 eq] 25.2 kg
Ecological footprint: global warming potential, (during production) [CO2 eq] 6.15 kg
Ecological footprint: global warming potential, (during operation) [CO2 eq] 19.4 kg
Ecological footprint: global warming potential, (after end of life cycle) [CO2 eq] -0.289 kg

Ambient conditions 3

Ambient temperature during operation: horizontal installation, min. -30 °C
Ambient temperature during operation: vertical installation, min. -30 °C
Altitude during operation relating to sea level: Installation altitude above sea level, max. 5 000 m

Decentralized operation 4

to SIMATIC S7-300 No
to SIMATIC S7-400 No
to SIMATIC S7-1200 Yes
to SIMATIC S7-1500 Yes

Dimensions 3

Width 15 mm
Height 73 mm
Depth 58 mm

Weights 1

Weight, approx. 32 g

EClass 9.1 27-24-26-08 4

eClass 9 27-24-26-08
ETIM 10 EC001604
IDEA 4 3564
UNSPSC 15 32-15-17-05

Logistics 6

Net weight 0.04 kg
Country of origin DE
Shipping weight 0.54 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 01 Nov 2026

Documents

Documents for 6ES7137-6EA00-0BA0

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE mark
  • UL approval
  • RCM (formerly C-TICK)
  • EAC (formerly Gost-R)
  • RoHS conformity
Quick answers

Questions about the CM 1x CAN ST

Which supply voltage is CM 1x CAN ST rated for?

The rated operational voltage of CM 1x CAN ST is 24 V AC.

What is the HS code of CM 1x CAN ST for customs?

The tariff (HS) code on file for CM 1x CAN ST is 85176200.

What is the EAN of CM 1x CAN ST?

The EAN (GTIN) of CM 1x CAN ST is 4047618108908.

Where does CM 1x CAN ST ship from, and how fast?

CM 1x CAN ST ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
