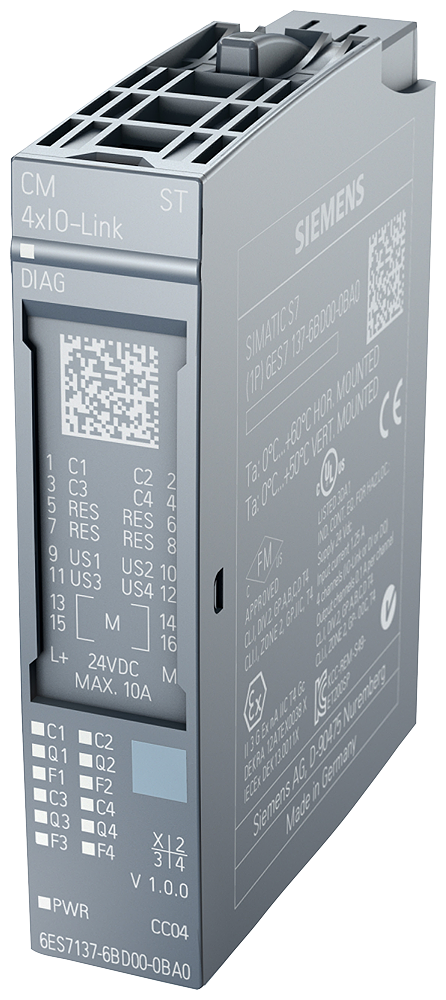

The Siemens 6ES7137-6BD00-0BA0 is a SIMATIC ET 200SP CM 4xIO-Link ST communication module, an IO-Link master with 4 simultaneously controllable ports supporting IO-Link protocol 1.0 and 1.1. It runs on a 24 V DC backplane supply, draws 45 mA without load, and provides a 700 mA rated output current per channel from its 24 V encoder supply (2.1 A max. short-circuit protected).
The 4 simultaneously controllable ports (not multiplexed) let this module poll all connected IO-Link sensors and actuators on every ET 200SP cycle without a scan-time penalty, so it fits applications that need real-time feedback from more than one IO-Link device per station. Support for both IO-Link protocol 1.0 and 1.1 means it accepts older field devices as well as current ones on the same module. The 20 m unshielded cable length limit (also applying to shielded cable per the datasheet) should be checked against actual sensor-to-module cable runs before specifying it on a large machine.
Connects IO-Link sensors and actuators - proximity switches, pressure transmitters, valve terminals - into a SIMATIC ET 200SP station, giving parameter access and diagnostics per port instead of simple binary I/O.
| Product type designation | CM 4 x IO-Link ST |
|---|---|
| HW functional status | FS20 |
| Firmware version | V2.2.2 |
| FW update possible | Yes |
| usable BaseUnits | BU type A0 |
| Color code for module-specific color-coded label | CC04 |
| Product function: I&M data | Yes; I&M0 to I&M3 |
| Product function: Isochronous mode | No; Only for PROFINET and configuration as version with FW V2.0 or V2.1 |
| Engineering with: STEP 7 TIA Portal configurable/integrated from version | STEP 7 V15 or higher |
| Engineering with: STEP 7 configurable/integrated from version | STEP 7 V5.5 or higher |
| Engineering with: PROFIBUS from GSD version/GSD revision | One GSD file each, Revision 3 and 5 and higher |
| Engineering with: PROFINET from GSD version/GSD revision | GSDML V2.3 |
| Operating mode: IO-Link | Yes |
| Operating mode: DI | Yes |
| Operating mode: DQ | Yes; max. 100 mA per channel |
| Rated value (DC) | 24 V |
|---|---|
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| power supply according to NEC Class 2 required | No |
| Current consumption, max. | 45 mA; without load |
|---|
| Part number | 6ES7137-6BD00-0BA0 |
|---|---|
| Type designation | CM 4 x IO-Link ST |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4025515082095 |
| ETIM class | EC001604 |
| eCl@ss | 27242608 |
| Number of outputs | 4 |
|---|---|
| Output current: Rated value | 700 mA; Per channel |
| 24 V encoder supply: Short-circuit protection | Yes |
| 24 V encoder supply: Output current, max. | 2.1 A |
| Power loss, typ. | 1 W |
|---|
| Automatic encoding | Yes |
|---|---|
| Electronic coding element type H | Yes |
| Cable length: unshielded, max. | 20 m; Also applies for shielded cables |
|---|
| Number of ports | 4 |
|---|---|
| of which simultaneously controllable | 4 |
| IO-Link protocol 1.0 | Yes |
| IO-Link protocol 1.1 | Yes |
| Transmission rate | 4.8 kBaud (COM1); 38.4 kBaud (COM2), 230.4 kBaud (COM3) |
| Cycle time, min. | 2 ms; dynamic, depending on user data length |
| Size of process data, input per port | 32 byte; max. |
| Size of process data, input per module | 144 byte; max. |
| Size of process data, output per port | 32 byte; max. |
| Size of process data, output per module | 128 byte; max. |
| Memory size for device parameter | 2 kbyte; for each port |
| Master backup | Yes |
| Configuration without S7-PCT | Yes |
| Cable length unshielded, max. | 20 m |
| Time Based IO: TIO IO-Link IN | No; Only for PROFINET and configuration as version with FW V2.0 or V2.1 |
| Time Based IO: TIO IO-Link OUT | No; Only for PROFINET and configuration as version with FW V2.0 or V2.1 |
| Time Based IO: TIO IO-Link IN/OUT | No; Only for PROFINET and configuration as version with FW V2.0 or V2.1 |
| Connection of IO-Link devices: Port type A | Yes |
| Connection of IO-Link devices: Port type B | Yes; 24 V DC via external terminal |
| Connection of IO-Link devices: via three-wire connection | Yes |
| Alarms: Diagnostic alarm | Yes; The port diagnosis is available in the IO-Link mode only. |
|---|---|
| Diagnoses: Monitoring the supply voltage | Yes |
| Diagnoses: Wire break | Yes |
| Diagnoses: Short-circuit | Yes |
| Diagnoses: Group error | Yes |
| Diagnostics indication LED: Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| Diagnostics indication LED: Channel status display | Yes; one green LED for channel status Qn (SIO mode) and port status Cn (IO- Link mode) per channel |
| Diagnostics indication LED: for channel diagnostics | Yes; red Fn LED |
| Diagnostics indication LED: for module diagnostics | Yes; green/red DIAG LED |
| Potential separation channels: between the channels | No |
|---|---|
| Potential separation channels: between the channels and backplane bus | Yes |
| Potential separation channels: between the channels and the power supply of the electronics | No |
| Isolation tested with | 707 V DC (type test) |
|---|
| Ecological footprint: environmental product declaration Global warming potential | Yes |
|---|---|
| Ecological footprint: global warming potential, (total) [CO2 eq] | 25.2 kg |
| Ecological footprint: global warming potential, (during production) [CO2 eq] | 6.15 kg |
| Ecological footprint: global warming potential, (during operation) [CO2 eq] | 19.4 kg |
| Ecological footprint: global warming potential, (after end of life cycle) [CO2 eq] | -0.289 kg |
| eClass | 16 27-24-26-08 |
|---|---|
| ETIM | 10 EC001604 |
| IDEA | 4 3564 |
| UNSPSC | 15 32-15-17-05 |
| Net weight | 0.04 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 0.54 kg |
| Ships from | Türkiye |
| Dispatch | 18 Nov |
| Stock | Low stock |
