Part number
6ES7136-6DC00-0CA0
Model no
F-DQ 8x24 V DC/0.5 A PP HF
$423.20 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
SIMATIC ET 200SP

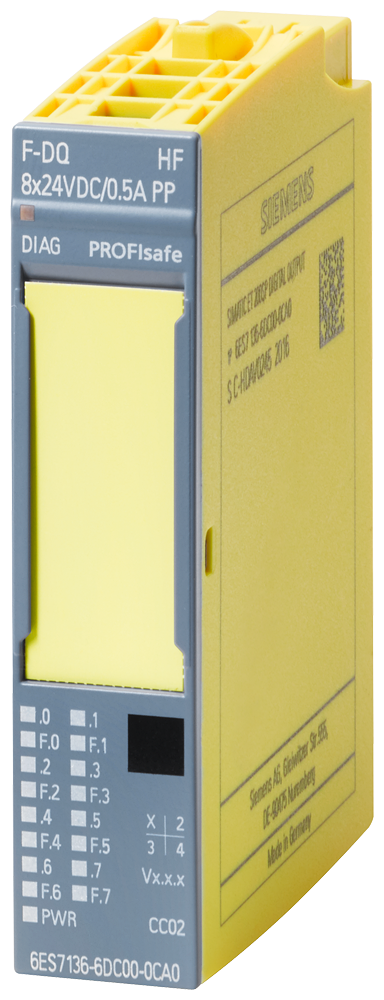

Siemens 6ES7136-6DC00-0CA0 SIMATIC ET 200SP F-DQ 8x24VDC/0.5A PP HF Fail-safe Remote I/O Module

ET 200SP fail-safe digital output module, F-DQ 8x24VDC/0.5A PP HF, PLe / SIL 3 rated.

Rated current
0.5 A
Rated operational voltage
24 V AC
EAN
4047623407164
Description

About the F-DQ 8x24 V DC/0.5 A PP HF

The Siemens 6ES7136-6DC00-0CA0 is a SIMATIC ET 200SP fail-safe digital output module (F-DQ 8x24VDC/0.5A PP HF) rated up to Performance Level e (ISO 13849-1) and SIL 3 (IEC 61508). It provides 8 transistor outputs at 24 V DC, 0.5 A per channel, for safety shutdown of actuators, with a PFH below 2.00E-09 1/h.

Certifications & Standards

  • ISO 13849-1 (PLe)
  • IEC 61508 (SIL 3)

Selection Notes

F-DQ marks it as a fail-safe digital output; PP is the push-pull output stage and HF is the High Feature variant. The PLe/SIL 3 rating qualifies this module as the final output element in a machine safety circuit — de-energizing a contactor coil or valve — without an external safety relay, provided the upstream sensor and logic meet the same or higher category. Each channel switches up to its 0.7 A typical response threshold, so it drives small DC contactor coils directly; loads above the 0.5 A rated current still need an external contactor stage. It mounts only on BU type A0 BaseUnits, so confirm BaseUnit type before adding it to an existing ET 200SP station.

Applications

Safety-related shutdown of contactors, valves, and other actuators in machine safety circuits built to ISO 13849-1 / IEC 61508, using PROFIsafe over PROFINET or PROFIBUS through the ET 200SP interface module.

Specification

Full specification

96 values · Last verified 01 Nov 2026

General information 8

Product type designation F-DQ 8x24 V DC/0.5 A PP HF
Firmware version: FW update possible Yes
usable BaseUnits BU type A0
Color code for module-specific color-coded label CC02
Product function: I&M data Yes; I&M0 to I&M3
Engineering with: STEP 7 TIA Portal configurable/integrated from version V14 SP1 with HSP 202
Engineering with: STEP 7 configurable/integrated from version V5.5 SP4 HF5
Engineering with: PROFINET from GSD version/GSD revision V2.31

Supply voltage 5

Rated value (DC) 24 V
permissible range, lower limit (DC) 19.2 V
permissible range, upper limit (DC) 28.8 V
Reverse polarity protection Yes
power supply according to NEC Class 2 required No

Input current 2

Current consumption (rated value) 75 mA; without load
Current consumption, max. 21 mA; From the backplane bus
Show all 96 specifications ↓ Show less ↑81 more values in Identification, Output voltage, Power, Power loss, Address area, Hardware configuration, Digital outputs, Interrupts/diagnostics/status information, Potential separation, Isolation, Standards, approvals, certificates, Ambient conditions, Dimensions, Weights, General Product Approval, Logistics.

Identification 10

Part number 6ES7136-6DC00-0CA0
Type designation F-DQ 8x24 V DC/0.5 A PP HF
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4047623407164
ETIM class EC001599
eCl@ss 27242604

Output voltage 1

Rated value (DC) 24 V

Power 1

Power consumption from the backplane bus 70 mW

Power loss 1

Power loss, typ. 3 W

Address area 2

Address space per module: Inputs 6 byte; 5 bytes non-RIOforFA; 6 bytes RIOforFA
Address space per module: Outputs 6 byte; 5 bytes non-RIOforFA; 6 bytes RIOforFA

Hardware configuration 2

Automatic encoding Yes
Electronic coding element type F Yes

Digital outputs 24

Type of digital output Transistor
Number of digital outputs 8
Digital outputs, parameterizable Yes
Short-circuit protection Yes
Response threshold, typ. Min. 0.7 A
Open-circuit detection No
Limitation of inductive shutdown voltage to Typ. -39 V
Controlling a digital input Yes; digital output, according to IEC 61131-2, type 0.5
Switching capacity of the outputs: with resistive load, max. 0.5 A
Switching capacity of the outputs: on lamp load, max. 2 W
Load resistance range: lower limit 48 Ω
Load resistance range: upper limit 12 000 Ω
Output voltage: for signal "1", min. 24 V; L+ (-0.5 V)
Output current: for signal "1" rated value 0.5 A
Output current: for signal "0" residual current, max. 0.5 mA
Switching frequency: with resistive load, max. 30 Hz; Symmetrical
Switching frequency: with inductive load, max. 0.1 Hz; according to IEC 60947-5-1, DC-13, symmetrical
Switching frequency: with capacitive load, max. 2 Hz; Symmetrical
Switching frequency: on lamp load, max. 10 Hz; Symmetrical
Total current of the outputs: Current per channel, max. 0.5 A; note derating data in the manual
Total current of the outputs: Current per module, max. 3 A; note derating data in the manual
Total current of the outputs (per module) horizontal installation: up to 40 °C, max. 3 A
Cable length: shielded, max. 100 m
Cable length: unshielded, max. 100 m

Interrupts/diagnostics/status information 10

Diagnostics function Yes; See Chapter "Alarms/diagnostic messages" in the manual
Substitute values connectable No
Alarms: Diagnostic alarm Yes
Alarms: Hardware interrupt No
Diagnostics indication LED: RUN LED Yes; green LED
Diagnostics indication LED: ERROR LED Yes; red LED
Diagnostics indication LED: Monitoring of the supply voltage (PWR-LED) Yes; green PWR LED
Diagnostics indication LED: Channel status display Yes; green LED
Diagnostics indication LED: for channel diagnostics Yes; red LED
Diagnostics indication LED: for module diagnostics Yes; green/red DIAG LED

Potential separation 3

Potential separation channels: between the channels No
Potential separation channels: between the channels and backplane bus Yes
Potential separation channels: between the channels and the power supply of the electronics No

Isolation 1

Isolation tested with 707 V DC (type test)

Standards, approvals, certificates 11

Suitable for safety functions Yes
Ecological footprint: environmental product declaration Global warming potential Yes
Ecological footprint: global warming potential, (total) [CO2 eq] 88.3 kg
Ecological footprint: global warming potential, (during production) [CO2 eq] 13.1 kg
Ecological footprint: global warming potential, (during operation) [CO2 eq] 76.6 kg
Ecological footprint: global warming potential, (after end of life cycle) [CO2 eq] -1.37 kg
Highest safety class achievable in safety mode: Performance level according to ISO 13849-1 PLe
Highest safety class achievable in safety mode: Category according to ISO 13849-1 Cat. 4
Highest safety class achievable in safety mode: SIL acc. to IEC 61508 Probability of failure (for service life of 20 years and repair time of 100 hours) SIL 3
Highest safety class achievable in safety mode: Low demand mode: PFDavg in accordance with SIL3 < 6.00E-05
Highest safety class achievable in safety mode: High demand/continuous mode: PFH in accordance with SIL3 < 2.00E-09 1/h

Ambient conditions 3

Ambient temperature during operation: horizontal installation, min. 0 °C
Ambient temperature during operation: vertical installation, min. 0 °C
Altitude during operation relating to sea level: Installation altitude above sea level, max. 4 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP System Manual

Dimensions 3

Width 15 mm
Height 73 mm
Depth 58 mm

Weights 1

Weight, approx. 48 g

General Product Approval 2

Miscellaneous Manufacturer Declara- tion For use in hazard-
General Product Approval ous locations

Logistics 6

Net weight 0.055 kg
Country of origin DE
Shipping weight 0.555 kg
Ships from Türkiye
Dispatch 18 Nov
Stock In stock

Source: manufacturer data · Last verified: 01 Nov 2026
