Part number
6ES7136-6BA01-0CA0
Model no
F-DI 8x24VDC HF
$327.75 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
SIMATIC ET 200SP

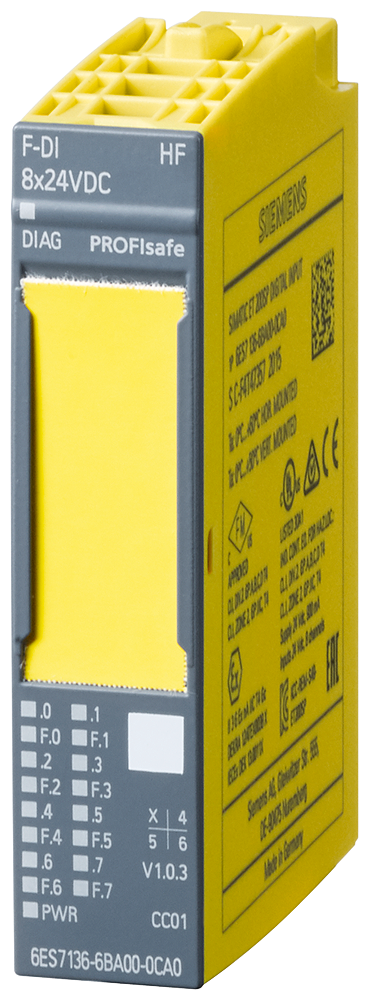

Siemens 6ES7136-6BA01-0CA0 SIMATIC ET 200SP F-DI 8x24VDC HF PLe SIL3 Fail-safe I/O Module

SIMATIC ET 200SP F-DI 8x24VDC HF fail-safe input module, 8 channels, PLe/SIL3, 24V DC.

Rated operational voltage
24 V AC
Communication
PROFINET/PROFIBUS (via GSD)
EAN
4047623411475
Description

About the F-DI 8x24VDC HF

The Siemens 6ES7136-6BA01-0CA0 is a SIMATIC ET 200SP fail-safe digital input module (F-DI 8x24VDC HF) with 8 channels, rated Performance Level e / Category 4 per ISO 13849-1 and SIL 3 per IEC 61508. It is 15 mm wide, mounts on BU type A0, and includes an integrated 24 V encoder supply across all 8 channels.

Certifications & Standards

  • ISO 13849-1
  • IEC 61508

Selection Notes

The PLe/Category 4 and SIL 3 ratings cover the input stage of most machine safety functions -- e-stop chains, guard-door interlocks, light-curtain inputs -- without needing a higher-rated module. A PFH below 1.00E-09 1/h leaves headroom in the overall SIL 3 loop budget when this module is combined with a safety logic controller and output stage. The 800 mA total encoder-supply current across 8 channels sizes it for standard 24 V interlock switches and E-stop buttons without an external supply; a module with lower per-channel current would need one.

Applications

Emergency-stop circuits, safety guard-door monitoring, and light-curtain or two-hand control inputs wired into a SIMATIC ET 200SP fail-safe station.

Specification

Full specification

93 values · Last verified 01 Nov 2026

General information 12

Product type designation F-DI 8x24VDC HF
HW functional status 04 and 12
Firmware version V3.0
FW update possible Yes
usable BaseUnits BU type A0
Color code for module-specific color-coded label CC01
Product function: I&M data Yes; I&M0 to I&M3
Engineering with: STEP 7 TIA Portal configurable/integrated from version SIMATIC Safety V20 and V21 or higher with HSP 0484
Engineering with: STEP 7 configurable/integrated from version as 6ES7136-6BA00-0CA0
Engineering with: PROFINET from GSD version/GSD revision GSDML V2.45
Operating mode: DI Yes
Operating mode: Counter Yes; pulse counting, standstill and speed monitoring

CiR - Configuration in RUN 1

Reparameterization possible in RUN No

Supply voltage 5

Rated value (DC) 24 V
permissible range, lower limit (DC) 19.2 V
permissible range, upper limit (DC) 28.8 V
Reverse polarity protection Yes
power supply according to NEC Class 2 required No
Show all 93 specifications ↓ Show less ↑75 more values in Identification, Input current, Encoder supply, Power loss, Address area, Hardware configuration, Digital inputs, Interrupts/diagnostics/status information, Potential separation, Isolation, Standards, approvals, certificates, Ambient conditions, Dimensions, Weights, General Product Approval, Logistics.

Identification 10

Part number 6ES7136-6BA01-0CA0
Type designation F-DI 8x24VDC HF
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4047623411475
ETIM class EC001599
eCl@ss 27242604

Input current 1

Current consumption, max. 40 mA; without load

Encoder supply 5

Number of outputs 8
24 V encoder supply: 24 V Yes; min. L+ (-1.5 V)
24 V encoder supply: Short-circuit protection Yes; Electronic (response threshold 0.7 A to 1.8 A)
24 V encoder supply: Output current per channel, max. 300 mA
24 V encoder supply: Output current per module, max. 800 mA; Total current of all encoders

Power loss 1

Power loss, typ. 2 W

Address area 2

Address space per module: Inputs 7 byte; S7-300/400F CPU, 6 byte
Address space per module: Outputs 5 byte; S7-300/400F CPU, 4 byte

Hardware configuration 2

Automatic encoding Yes
Electronic coding element type F Yes

Digital inputs 15

Number of digital inputs 8
Digital inputs, parameterizable Yes
Sourcing/sinking input Yes; P-reading
Input characteristic curve in accordance with IEC 61131, type 1 Yes
Digital input functions, parameterizable: Counter Yes
Digital input functions, parameterizable: Number, max. 1
Digital input functions, parameterizable: Counting frequency, max. 500 Hz
Digital input functions, parameterizable: Counting direction up/down Yes
Input voltage: Rated value (DC) 24 V
Input voltage: for signal "0" -30 to +5 V
Input voltage: for signal "1" +15 to +30 V
Input current: for signal "1", typ. 3.7 mA
Input delay (for rated value of input voltage) for standard inputs: parameterizable Yes
Cable length: shielded, max. 1 000 m
Cable length: unshielded, max. 500 m

Interrupts/diagnostics/status information 9

Diagnostics function Yes
Alarms: Diagnostic alarm Yes
Alarms: Hardware interrupt No
Diagnostics indication LED: RUN LED Yes; green LED
Diagnostics indication LED: ERROR LED Yes; red LED
Diagnostics indication LED: Monitoring of the supply voltage (PWR-LED) Yes; green PWR LED
Diagnostics indication LED: Channel status display Yes; green LED
Diagnostics indication LED: for channel diagnostics Yes; red LED
Diagnostics indication LED: for module diagnostics Yes; green/red DIAG LED

Potential separation 3

Potential separation channels: between the channels No
Potential separation channels: between the channels and backplane bus Yes
Potential separation channels: between the channels and the power supply of the electronics No

Isolation 1

Isolation tested with 707 V DC (type test)

Standards, approvals, certificates 12

Siemens Eco Profile (SEP) Siemens EcoTech
Suitable for safety functions Yes
Ecological footprint: environmental product declaration Global warming potential Yes
Ecological footprint: global warming potential, (total) [CO2 eq] 52 kg
Ecological footprint: global warming potential, (during production) [CO2 eq] 6.8 kg
Ecological footprint: global warming potential, (during operation) [CO2 eq] 45.8 kg
Ecological footprint: global warming potential, (after end of life cycle) [CO2 eq] -0.628 kg
Highest safety class achievable in safety mode: Performance level according to ISO 13849-1 PLe
Highest safety class achievable in safety mode: Category according to ISO 13849-1 Cat. 4
Highest safety class achievable in safety mode: SIL acc. to IEC 61508 Probability of failure (for service life of 20 years and repair time of 100 hours) SIL 3
Highest safety class achievable in safety mode: Low demand mode: PFDavg in accordance with SIL3 < 2.00E-05
Highest safety class achievable in safety mode: High demand/continuous mode: PFH in accordance with SIL3 < 1.00E-09 1/h

Ambient conditions 3

Ambient temperature during operation: horizontal installation, min. 0 °C
Ambient temperature during operation: vertical installation, min. 0 °C
Altitude during operation relating to sea level: Installation altitude above sea level, max. 4 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual

Dimensions 3

Width 15 mm
Height 73 mm
Depth 58 mm

Weights 1

Weight, approx. 29 g

General Product Approval 1

Miscellaneous Manufacturer Declara- tion

Logistics 6

Net weight 0.037 kg
Country of origin DE
Shipping weight 0.537 kg
Ships from Türkiye
Dispatch 18 Nov
Stock In stock

Source: manufacturer data · Last verified: 01 Nov 2026
