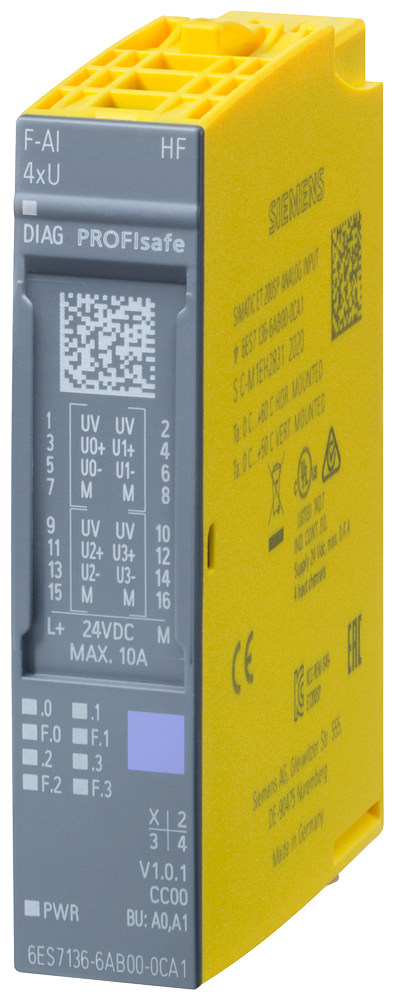

Siemens 6ES7136-6AB00-0CA1 SIMATIC ET 200SP F-AI 4xU 0-10V HF Fail-safe Remote I/O Module

SIMATIC ET 200SP F-AI 4xU 0-10V HF, 4-channel fail-safe analog input, PLe/SIL3, 16-bit.

Rated current
0.38 A
Rated operational voltage
0–10 V AC
Communication
PROFINET/PROFIsafe (via BaseUnit)
EAN
4047623410416
Description

About the F-AI 4XU 0..10V HF

The Siemens 6ES7136-6AB00-0CA1 is a SIMATIC ET 200SP fail-safe analog input module, F-AI 4xU 0..10V HF, with 4 voltage-measuring channels rated 0 to 10 V and 16-bit resolution. It achieves Performance Level e per ISO 13849-1, Category 4, and SIL 3 per IEC 61508, with a PFH below 1.00E-09 per hour.

Selection Notes

The PL e / SIL 3 rating and 0-10 V input range put the 6ES7136-6AB00-0CA1 in the safety loop for analog process values such as level or pressure transmitters feeding a safety instrumented function, not just standard monitoring. Its 16 kOhm input resistance and 0.1% basic error limit at 25 degrees C support tight trip-point accuracy; use the non-fail-safe AI energy meter or standard analog modules instead where the loop has no SIL requirement.

Specification

Full specification

99 values · Last verified 01 Nov 2026

General information 9

Product type designation F-AI 4XU 0..10V HF
Firmware version: FW update possible Yes
usable BaseUnits BU type A0, A1
Color code for module-specific color-coded label CC00
Product function: I&M data Yes; I&M0 to I&M3
Engineering with: STEP 7 TIA Portal configurable/integrated from version V16 with HSP 308
Operating mode: cyclic measurement Yes
Operating mode: Oversampling No
Operating mode: MSI No

CiR - Configuration in RUN 2

Reparameterization possible in RUN No
Calibration possible in RUN No

Supply voltage 5

Rated value (DC) 24 V
permissible range, lower limit (DC) 19.2 V
permissible range, upper limit (DC) 28.8 V
Reverse polarity protection Yes
power supply according to NEC Class 2 required No
