Part number
6ES7136-6AA00-0CA1
Model no
F-AI 4xI 0(4)..20mA 2-/4-wire HF
$826.85 In stock · 11 Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
SIMATIC ET 200SP

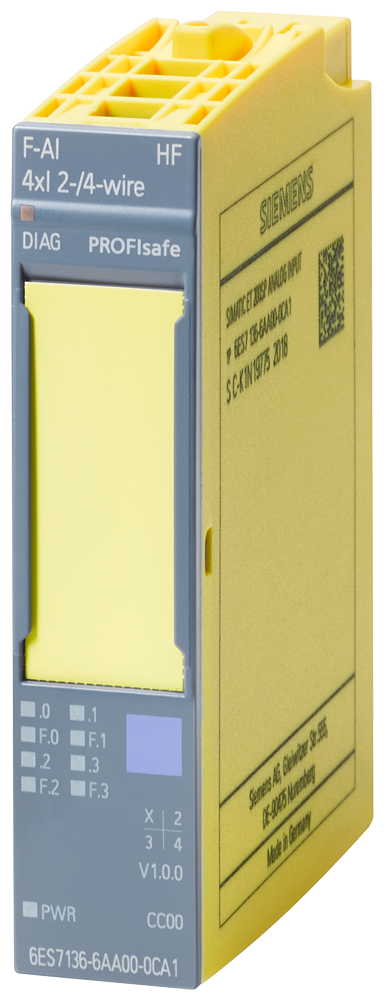

Siemens 6ES7136-6AA00-0CA1 SIMATIC ET 200SP F-AI 4xI 0(4)..20mA HF Fail-safe Remote I/O Module

SIMATIC ET 200SP fail-safe analog input module, F-AI 4xI 0(4)..20mA HF, SIL 3 / PL e, 16-bit resolution.

Rated operational voltage
24 V AC
EAN
4047623408031
Description

About the F-AI 4xI 0(4)..20mA 2-/4-wire HF

The Siemens 6ES7136-6AA00-0CA1 is a SIMATIC ET 200SP fail-safe analog input module with 4 current inputs (0/4-20 mA), rated up to SIL 3 (IEC 61508) and Performance Level e / Category 4 (ISO 13849-1). It offers 16-bit resolution, sigma-delta conversion, and channel-level wire-break and short-circuit diagnostics for safety-instrumented process loops.

Selection Notes

The F designation and SIL 3 / PL e rating make this module suitable for safety-instrumented functions reading 4-20 mA process transmitters directly into a fail-safe SIMATIC CPU, without a separate safety PLC. The 2-/4-wire connection option and 125 ohm input resistance on both the 0-20 mA and 4-20 mA ranges cover standard transmitter wiring without external burden resistors. Choose this HF (high-feature) variant when per-channel wire-break and short-circuit diagnostics are needed to meet SIL 3 diagnostic coverage; a standard, non-F AI module is sufficient where the loop is not part of a safety function.

Applications

Deployed in ET 200SP distributed I/O stations for safety-related analog measurement — pressure, level, and flow transmitters — in SIL 2/3 safety instrumented systems across process and machine safety applications.

Specification

Full specification

100 values · Last verified 01 Nov 2026

General information 6

Product type designation F-AI 4xI 0(4)..20mA 2-/4-wire HF
Firmware version: FW update possible Yes
usable BaseUnits BU type A0, A1
Color code for module-specific color-coded label CC00
Product function: I&M data Yes; I&M0 to I&M3
Engineering with: STEP 7 TIA Portal configurable/integrated from version V15 with HSP 203

CiR - Configuration in RUN 2

Reparameterization possible in RUN No
Calibration possible in RUN No

Supply voltage 5

Rated value (DC) 24 V
permissible range, lower limit (DC) 19.2 V
permissible range, upper limit (DC) 28.8 V
Reverse polarity protection Yes
power supply according to NEC Class 2 required No
Show all 100 specifications ↓ Show less ↑87 more values in Identification, Input current, Encoder supply, Power, Power loss, Address area, Hardware configuration, Analog inputs, Analog value generation for the inputs, Encoder, Errors/accuracies, Interrupts/diagnostics/status information, Potential separation, Permissible potential difference, Isolation, Standards, approvals, certificates, Ambient conditions, Dimensions, Weights, Logistics.

Identification 10

Part number 6ES7136-6AA00-0CA1
Type designation F-AI 4xI 0(4)..20mA 2-/4-wire HF
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4047623408031
ETIM class EC001596
eCl@ss 27242601

Input current 2

Current consumption (rated value) 0.38 A
Current consumption, max. 0.4 A

Encoder supply 3

24 V encoder supply: 24 V Yes; min. L+ (-1.5 V)
24 V encoder supply: Short-circuit protection Yes
24 V encoder supply: Output current, max. 300 mA; total current of all encoders/channels

Power 1

Power consumption from the backplane bus 70 mW

Power loss 1

Power loss, typ. 2 W

Address area 2

Address space per module: Inputs 14 byte; S7-300/400F CPU, 13 byte
Address space per module: Outputs 5 byte; S7-300/400F CPU, 4 byte

Hardware configuration 2

Automatic encoding Yes
Electronic coding element type F Yes

Analog inputs 8

Number of analog inputs 4
For current measurement 4
permissible input current for current input (destruction limit), max. 35 mA
Input ranges (rated values), currents: 0 to 20 mA Yes
Input ranges (rated values), currents: Input resistance (0 to 20 mA) 125 Ω
Input ranges (rated values), currents: 4 mA to 20 mA Yes
Input ranges (rated values), currents: Input resistance (4 mA to 20 mA) 125 Ω
Cable length: shielded, max. 1 000 m

Analog value generation for the inputs 10

Measurement principle Sigma Delta
Integration and conversion time/resolution per channel: Resolution with overrange (bit including sign), max. 16 bit
Integration and conversion time/resolution per channel: Integration time, parameterizable Yes
Integration and conversion time/resolution per channel: Interference voltage suppression for interference frequency f1 in Hz 50 / 60 Hz
Smoothing of measured values: Number of smoothing levels 7
Smoothing of measured values: parameterizable Yes
Smoothing of measured values: Step: None Yes; 1x conversion cycle time
Smoothing of measured values: Step: low Yes; 2x / 4x conversion cycle time
Smoothing of measured values: Step: Medium Yes; 8x / 16x conversion cycle time
Smoothing of measured values: Step: High Yes; 32x / 64x conversion cycle time

Encoder 3

Connection of signal encoders: for current measurement as 2-wire transducer Yes
Connection of signal encoders: Burden of 2-wire transmitter, max. 650 Ω
Connection of signal encoders: for current measurement as 4-wire transducer Yes

Errors/accuracies 6

Linearity error (relative to input range), (+/-) 0.1 %
Temperature error (relative to input range), (+/-) 0.023 %/K
Repeat accuracy in steady state at 25 °C (relative to input range), (+/-) 0.1 %
Operational error limit in overall temperature range: Current, relative to input range, (+/-) 2%
Basic error limit (operational limit at 25 °C): Current, relative to input range, (+/-) 0.1 %
Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency: Series mode interference (peak value of interference < rated value of input range), min. 40 dB

Interrupts/diagnostics/status information 12

Diagnostics function Yes
Alarms: Diagnostic alarm Yes
Alarms: Limit value alarm No
Diagnoses: Monitoring the supply voltage Yes
Diagnoses: Wire break Yes
Diagnoses: Short-circuit Yes
Diagnostics indication LED: RUN LED Yes; green LED
Diagnostics indication LED: ERROR LED Yes; red LED
Diagnostics indication LED: Monitoring of the supply voltage (PWR-LED) Yes; green PWR LED
Diagnostics indication LED: Channel status display Yes; green LED
Diagnostics indication LED: for channel diagnostics Yes; red LED
Diagnostics indication LED: for module diagnostics Yes; green/red DIAG LED

Potential separation 3

Potential separation channels: between the channels No
Potential separation channels: between the channels and backplane bus Yes
Potential separation channels: between the channels and the power supply of the electronics Yes

Permissible potential difference 1

between the inputs (UCM) 10 Vpp

Isolation 1

Isolation tested with 707 V DC (type test)

Standards, approvals, certificates 10

Ecological footprint: environmental product declaration Global warming potential Yes
Ecological footprint: global warming potential, (total) [CO2 eq] 88.3 kg
Ecological footprint: global warming potential, (during production) [CO2 eq] 13.1 kg
Ecological footprint: global warming potential, (during operation) [CO2 eq] 76.6 kg
Ecological footprint: global warming potential, (after end of life cycle) [CO2 eq] -1.37 kg
Highest safety class achievable in safety mode: Performance level according to ISO 13849-1 PLe
Highest safety class achievable in safety mode: Category according to ISO 13849-1 Cat. 4
Highest safety class achievable in safety mode: SIL acc. to IEC 61508 Probability of failure (for service life of 20 years and repair time of 100 hours) SIL 3
Highest safety class achievable in safety mode: Low demand mode: PFDavg in accordance with SIL3 < 5.00E-05
Highest safety class achievable in safety mode: High demand/continuous mode: PFH in accordance with SIL3 < 1.00E-09 1/h

Ambient conditions 2

Ambient temperature during operation: horizontal installation, min. 0 °C
Ambient temperature during operation: vertical installation, min. 0 °C

Dimensions 3

Width 15 mm
Height 73 mm
Depth 58 mm

Weights 1

Weight, approx. 48 g

Logistics 6

Net weight 0.057 kg
Country of origin DE
Shipping weight 0.557 kg
Ships from Türkiye
Dispatch 18 Nov
Stock In stock

Source: manufacturer data · Last verified: 01 Nov 2026
