Part number
6ES7135-6HD00-0BA1
Model no
AQ 4xU/I ST
$299.12 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
SIMATIC ET 200SP

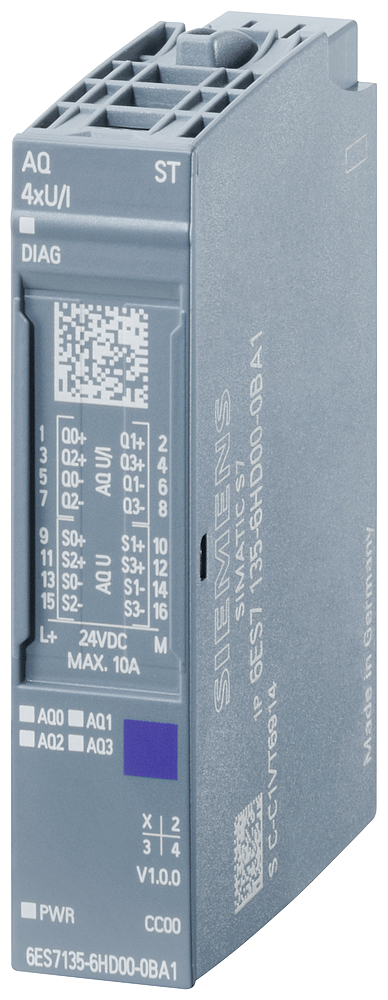

Siemens 6ES7135-6HD00-0BA1 SIMATIC ET 200SP AQ 4xU/I ST Analog Output Remote I/O Module

Siemens ET 200SP AQ 4xU/I ST analog output module, 4 voltage/current channels, 16-bit, BU type A0/A1.

Rated operational voltage
24 V DC
EAN
4025515080756
Description

About the AQ 4xU/I ST

The Siemens 6ES7135-6HD00-0BA1 is a SIMATIC ET 200SP analog output module with 4 channels, each individually configurable for voltage or current output, resolving up to 16 bit including sign across 0-10V, +/-10V, 4-20mA, and +/-20mA ranges, fitted to BU type A0 or A1 with color code CC00.

Selection Notes

Each of the 4 channels is independently parameterizable as a 0-10V, ±10V, ±5V, or 1-5V voltage output, or a 0-20mA/4-20mA/±20mA current output - the same module drives a mix of proportional valves on voltage and VFD speed references on 4-20mA without ordering separate voltage-only and current-only cards. Settling time depends on the load type: 0.1ms into a resistive load versus 1ms into a capacitive one, worth checking against the actuator's response requirement when the loop is tuned for fast setpoint changes. The 30V destruction limit at the outputs protects the module if a wiring error connects an output to a higher-voltage source during commissioning.

Applications

Drives analog actuators from ET 200SP stations - proportional valve positioners, VFD speed references, and damper/positioner setpoints - on either voltage (0-10V) or current (4-20mA) signal types per channel.

Specification

Full specification

103 values · Last verified 01 Nov 2026

General information 16

Product type designation AQ 4xU/I ST
HW functional status from FS21
Firmware version V1.1.3
FW update possible Yes
usable BaseUnits BU type A0, A1
Color code for module-specific color-coded label CC00
Product function: I&M data Yes; I&M0 to I&M3
Product function: Isochronous mode No
Product function: Output range scalable No
Engineering with: STEP 7 TIA Portal configurable/integrated from version V11 SP2 / V13
Engineering with: STEP 7 configurable/integrated from version V5.5 SP3 / -
Engineering with: PCS 7 configurable/integrated from version V8.1 SP1
Engineering with: PROFIBUS from GSD version/GSD revision One GSD file each, Revision 3 and 5 and higher
Engineering with: PROFINET from GSD version/GSD revision GSDML V2.3
Operating mode: Oversampling No
Operating mode: MSO No

CiR - Configuration in RUN 2

Reparameterization possible in RUN No
Calibration possible in RUN No

Supply voltage 4

Rated value (DC) 24 V
permissible range, lower limit (DC) 19.2 V
permissible range, upper limit (DC) 28.8 V
Reverse polarity protection Yes
Show all 103 specifications ↓ Show less ↑81 more values in Identification, Input current, Power loss, Address area, Hardware configuration, Analog outputs, Analog value generation for the outputs, Errors/accuracies, Interrupts/diagnostics/status information, Potential separation, Isolation, Standards, approvals, certificates, Ambient conditions, Dimensions, Weights, Logistics.

Identification 10

Part number 6ES7135-6HD00-0BA1
Type designation AQ 4xU/I ST
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4025515080756
ETIM class EC001596
eCl@ss 27242601

Input current 1

Current consumption, max. 150 mA

Power loss 1

Power loss, typ. 1.5 W

Address area 1

Address space per module: Address space per module, max. 8 byte; + 1 byte for QI information

Hardware configuration 3

Automatic encoding Yes
Mechanical coding element Yes
Type of mechanical coding element Type A

Analog outputs 18

Number of analog outputs 4
Voltage output, short-circuit current, max. 45 mA
Cycle time (all channels), min. 5 ms
Analog output with oversampling No
Output ranges, voltage: 0 to 10 V Yes; 15 bit
Output ranges, voltage: 1 V to 5 V Yes; 13 bit
Output ranges, voltage: -5 V to +5 V Yes; 15 bit incl. sign
Output ranges, voltage: -10 V to +10 V Yes; 16 bit incl. sign
Output ranges, current: 0 to 20 mA Yes; 15 bit
Output ranges, current: -20 mA to +20 mA Yes; 16 bit incl. sign
Output ranges, current: 4 mA to 20 mA Yes; 14 bit
Connection of actuators: for voltage output two-wire connection Yes
Connection of actuators: for voltage output four-wire connection Yes
Connection of actuators: for current output two-wire connection Yes
Load impedance (in rated range of output): with voltage outputs, min. 2 kΩ
Load impedance (in rated range of output): with current outputs, max. 500 Ω
Destruction limits against externally applied voltages and currents: Voltages at the outputs 30 V
Cable length: shielded, max. 1 000 m; 200 m for voltage output

Analog value generation for the outputs 4

Integration and conversion time/resolution per channel: Resolution with overrange (bit including sign), max. 16 bit
Settling time: for resistive load 0.1 ms
Settling time: for capacitive load 1 ms
Settling time: for inductive load 0.5 ms

Errors/accuracies 8

Linearity error (relative to output range), (+/-) 0.03 %
Temperature error (relative to output range), (+/-) 0.005 %/K
Crosstalk between the outputs, min. -50 dB
Repeat accuracy in steady state at 25 °C (relative to output range), (+/-) 0.05 %
Operational error limit in overall temperature range: Voltage, relative to output range, (+/-) 0.5 %
Operational error limit in overall temperature range: Current, relative to output range, (+/-) 0.5 %
Basic error limit (operational limit at 25 °C): Voltage, relative to output range, (+/-) 0.3 %
Basic error limit (operational limit at 25 °C): Current, relative to output range, (+/-) 0.3 %

Interrupts/diagnostics/status information 12

Diagnostics function Yes
Substitute values connectable Yes
Alarms: Diagnostic alarm Yes
Diagnoses: Monitoring the supply voltage Yes
Diagnoses: Wire break Yes; module-by-module, only for output type "current"
Diagnoses: Short-circuit Yes; module-by-module, only for output type "voltage"
Diagnoses: Group error Yes
Diagnoses: Overflow/Underflow Yes; module-wise
Diagnostics indication LED: Monitoring of the supply voltage (PWR-LED) Yes; green PWR LED
Diagnostics indication LED: Channel status display Yes; green LED
Diagnostics indication LED: for channel diagnostics No
Diagnostics indication LED: for module diagnostics Yes; green/red DIAG LED

Potential separation 3

Potential separation channels: between the channels No
Potential separation channels: between the channels and backplane bus Yes
Potential separation channels: between the channels and the power supply of the electronics Yes

Isolation 1

Isolation tested with 707 V DC (type test)

Standards, approvals, certificates 5

Ecological footprint: environmental product declaration Global warming potential Yes
Ecological footprint: global warming potential, (total) [CO2 eq] 28.6 kg
Ecological footprint: global warming potential, (during production) [CO2 eq] 5.33 kg
Ecological footprint: global warming potential, (during operation) [CO2 eq] 23.6 kg
Ecological footprint: global warming potential, (after end of life cycle) [CO2 eq] -0.343 kg

Ambient conditions 4

Ambient temperature during operation: horizontal installation, min. -30 °C; < 0 °C as of FS07
Ambient temperature during operation: vertical installation, min. -30 °C; < 0 °C as of FS07
Altitude during operation relating to sea level: Installation altitude above sea level, max. 5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual
Absolute humidity: dew point, min. -60 °C; suitable for dry room applications

Dimensions 3

Width 15 mm
Height 73 mm
Depth 58 mm

Weights 1

Weight, approx. 31 g

Logistics 6

Net weight 0.039 kg
Country of origin DE
Shipping weight 0.539 kg
Ships from Türkiye
Dispatch 18 Nov
Stock In stock

Source: manufacturer data · Last verified: 01 Nov 2026

Documents

Documents for 6ES7135-6HD00-0BA1

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the AQ 4xU/I ST

Which supply voltage is AQ 4xU/I ST rated for?

The rated operational voltage of AQ 4xU/I ST is 24 V DC.

What is the HS code of AQ 4xU/I ST for customs?

The tariff (HS) code on file for AQ 4xU/I ST is 85389091.

What is the EAN of AQ 4xU/I ST?

The EAN (GTIN) of AQ 4xU/I ST is 4025515080756.

Where does AQ 4xU/I ST ship from, and how fast?

AQ 4xU/I ST ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
