Part number
6ES7135-6HB00-0DA1
Model no
AQ 2xU/I HS
$376.74 In stock · 25 Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
SIMATIC ET 200SP

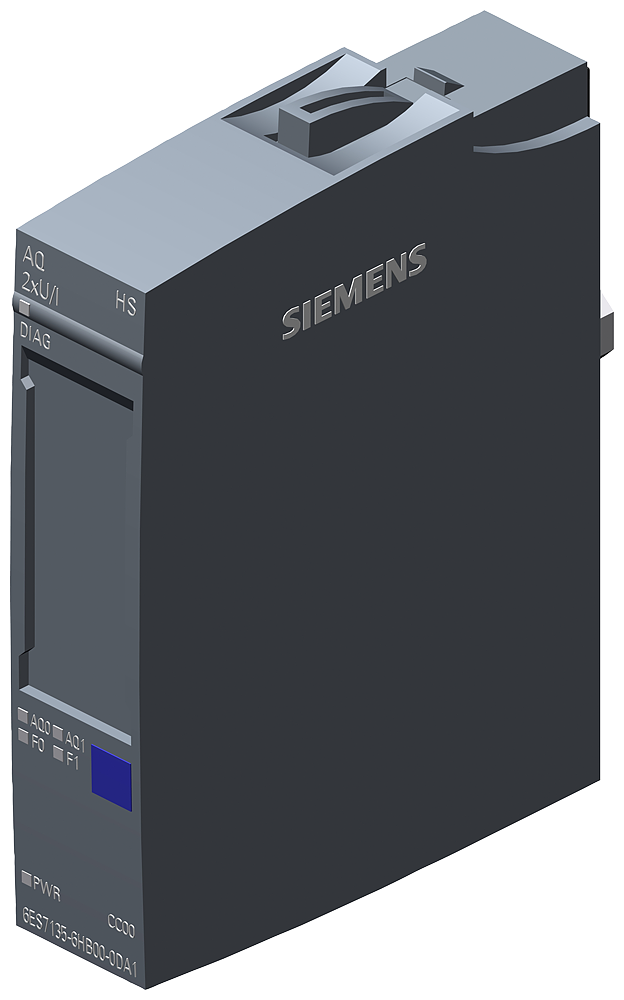

Siemens 6ES7135-6HB00-0DA1 SIMATIC ET 200SP AQ 2xU/I High Speed 16-Bit Remote I/O Module

SIMATIC ET 200SP 2-channel U/I analog output module, 16-bit, 125us cycle, oversampling

Rated operational voltage
24 V AC
Communication
PROFINET, PROFIBUS (ET 200SP backplane)
EAN
4025515082644
Description

About the AQ 2xU/I HS

The Siemens 6ES7135-6HB00-0DA1 is a SIMATIC ET 200SP analog output module with 2 high-speed channels for voltage or current output, 16-bit resolution including sign, and a 125 microsecond minimum cycle time. It mounts on BaseUnit type A0 or A1 with color code CC00, runs from a 24 V DC supply, and supports isochronous operation with oversampling up to 16 values per cycle.

Selection Notes

The high-speed (HS) designation gives this module a 125 microsecond cycle time versus the slower cycle times typical of standard analog output modules, so it fits closed-loop control loops that need fast setpoint updates, such as valve positioning or drive speed references. Oversampling mode drives up to 16 values per cycle on 2 channels, which lets a fast-changing setpoint profile run without consuming extra CPU scan cycles on the controller side.

Applications

Closed-loop analog control of valve position or drive setpoints, fast setpoint output for motion axes, and distributed analog output for ET 200SP stations on PROFINET or PROFIBUS.

Specification

Full specification

108 values · Last verified 01 Nov 2026

General information 12

Product type designation AQ 2xU/I HS
HW functional status From FS06
usable BaseUnits BU type A0, A1
Color code for module-specific color-coded label CC00
Product function: I&M data Yes; I&M0 to I&M3
Product function: Isochronous mode Yes; 125 µs
Engineering with: STEP 7 TIA Portal configurable/integrated from version V13 SP1
Engineering with: STEP 7 configurable/integrated from version V5.5 SP3 / -
Engineering with: PROFIBUS from GSD version/GSD revision GSD Revision 5
Engineering with: PROFINET from GSD version/GSD revision GSDML V2.3
Operating mode: Oversampling Yes; 2 channels per module
Operating mode: MSO No

CiR - Configuration in RUN 2

Reparameterization possible in RUN Yes
Calibration possible in RUN No

Supply voltage 4

Rated value (DC) 24 V
permissible range, lower limit (DC) 19.2 V
permissible range, upper limit (DC) 28.8 V
Reverse polarity protection Yes
Show all 108 specifications ↓ Show less ↑90 more values in Identification, Input current, Power loss, Address area, Hardware configuration, Analog outputs, Analog value generation for the outputs, Errors/accuracies, (+/-), Isochronous mode, Interrupts/diagnostics/status information, Potential separation, Isolation, Standards, approvals, certificates, Ambient conditions, Dimensions, Weights, ETIM 10 EC001596, Logistics.

Identification 10

Part number 6ES7135-6HB00-0DA1
Type designation AQ 2xU/I HS
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4025515082644
ETIM class EC001596
eCl@ss 27242601

Input current 2

Current consumption (rated value) 45 mA; without load
Current consumption, max. 90 mA; 2 channels current output 20 mA

Power loss 1

Power loss, typ. 0.9 W

Address area 1

Address space per module: Address space per module, max. 4 byte; + 1 byte for QI information (32 bytes in the oversampling operating mode)

Hardware configuration 2

Automatic encoding: Mechanical coding element Yes
Automatic encoding: Type of mechanical coding element Type A

Analog outputs 21

Number of analog outputs 2
Voltage output, short-circuit protection Yes
Voltage output, short-circuit current, max. 45 mA
Cycle time (all channels), min. 125 µs
Analog output with oversampling Yes
Values per cycle, max. 16
Resolution, min. 45 µs; (2 channels), 35 µs (1 channel)
Output ranges, voltage: 0 to 10 V Yes; 15 bit
Output ranges, voltage: 1 V to 5 V Yes; 13 bit
Output ranges, voltage: -5 V to +5 V Yes; 15 bit incl. sign
Output ranges, voltage: -10 V to +10 V Yes; 16 bit incl. sign
Output ranges, current: 0 to 20 mA Yes; 15 bit
Output ranges, current: -20 mA to +20 mA Yes; 16 bit incl. sign
Output ranges, current: 4 mA to 20 mA Yes; 14 bit
Connection of actuators: for voltage output two-wire connection Yes
Connection of actuators: for voltage output four-wire connection Yes
Connection of actuators: for current output two-wire connection Yes
Load impedance (in rated range of output): with voltage outputs, min. 2 kΩ
Load impedance (in rated range of output): with current outputs, max. 500 Ω
Destruction limits against externally applied voltages and currents: Voltages at the outputs 30 V
Cable length: shielded, max. 1 000 m; 200 m for voltage output

Analog value generation for the outputs 4

Integration and conversion time/resolution per channel: Resolution with overrange (bit including sign), max. 16 bit
Settling time: for resistive load 0.05 ms
Settling time: for capacitive load 0.05 ms; Max. 47 nF and 20 m cable length
Settling time: for inductive load 0.05 ms

Errors/accuracies 1

Output ripple (relative to output range, bandwidth 0 to 50 kHz), 0.02 %

(+/-) 8

Linearity error (relative to output range), (+/-) 0.03 %
Temperature error (relative to output range), (+/-) 0.003 %/K
Crosstalk between the outputs, max. -50 dB
Repeat accuracy in steady state at 25 °C (relative to output range), (+/-) 0.03 %
Operational error limit in overall temperature range: Voltage, relative to output range, (+/-) 0.2 %
Operational error limit in overall temperature range: Current, relative to output range, (+/-) 0.2 %
Basic error limit (operational limit at 25 °C): Voltage, relative to output range, (+/-) 0.1 %
Basic error limit (operational limit at 25 °C): Current, relative to output range, (+/-) 0.1 %

Isochronous mode 2

Execution and activation time (TCO), min. 70 µs
Bus cycle time (TDP), min. 125 µs

Interrupts/diagnostics/status information 12

Diagnostics function Yes
Substitute values connectable Yes
Alarms: Diagnostic alarm Yes
Diagnoses: Monitoring the supply voltage Yes
Diagnoses: Wire break Yes; channel-by-channel, only for output type "current"
Diagnoses: Short-circuit Yes; channel-by-channel, only for output type "voltage"
Diagnoses: Group error Yes
Diagnoses: Overflow/Underflow Yes
Diagnostics indication LED: Monitoring of the supply voltage (PWR-LED) Yes; green PWR LED
Diagnostics indication LED: Channel status display Yes; green LED
Diagnostics indication LED: for channel diagnostics Yes; red LED
Diagnostics indication LED: for module diagnostics Yes; green/red DIAG LED

Potential separation 3

Potential separation channels: between the channels No
Potential separation channels: between the channels and backplane bus Yes
Potential separation channels: between the channels and the power supply of the electronics Yes

Isolation 1

Isolation tested with 707 V DC (type test)

Standards, approvals, certificates 5

Ecological footprint: environmental product declaration Global warming potential Yes
Ecological footprint: global warming potential, (total) [CO2 eq] 28.6 kg
Ecological footprint: global warming potential, (during production) [CO2 eq] 5.33 kg
Ecological footprint: global warming potential, (during operation) [CO2 eq] 23.6 kg
Ecological footprint: global warming potential, (after end of life cycle) [CO2 eq] -0.343 kg

Ambient conditions 4

Ambient temperature during operation: horizontal installation, min. -30 °C; < 0 °C as of FS06
Ambient temperature during operation: vertical installation, min. -30 °C; < 0 °C as of FS06
Altitude during operation relating to sea level: Installation altitude above sea level, max. 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual
Absolute humidity: dew point, min. -60 °C; suitable for dry room applications

Dimensions 3

Width 15 mm
Height 73 mm
Depth 58 mm

Weights 1

Weight, approx. 31 g

ETIM 10 EC001596 3

ETIM 9 EC001596
IDEA 4 3562
UNSPSC 15 32-15-17-05

Logistics 6

Net weight 0.038 kg
Country of origin DE
Shipping weight 0.538 kg
Ships from Türkiye
Dispatch 18 Nov
Stock In stock

Source: manufacturer data · Last verified: 01 Nov 2026

Documents

Documents for 6ES7135-6HB00-0DA1

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the AQ 2xU/I HS

Which supply voltage is AQ 2xU/I HS rated for?

The rated operational voltage of AQ 2xU/I HS is 24 V AC.

What is the HS code of AQ 2xU/I HS for customs?

The tariff (HS) code on file for AQ 2xU/I HS is 85389091.

What is the EAN of AQ 2xU/I HS?

The EAN (GTIN) of AQ 2xU/I HS is 4025515082644.

Where does AQ 2xU/I HS ship from, and how fast?

AQ 2xU/I HS ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
