Part number
6ES7135-6HB00-0CA1
Model no
AQ 2xU/I HF
$308.43 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
SIMATIC ET 200SP

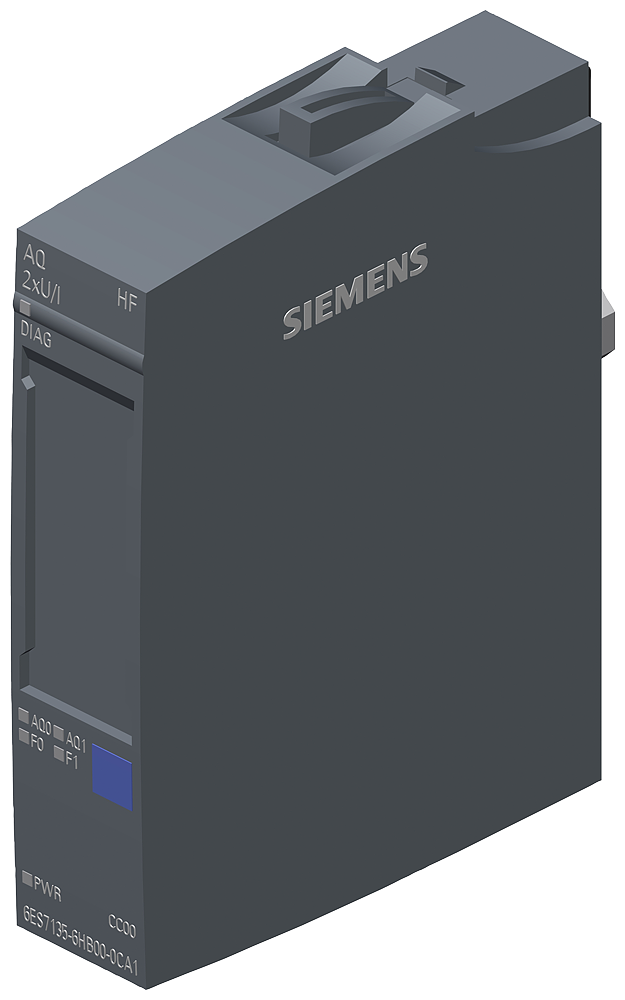

Siemens 6ES7135-6HB00-0CA1 SIMATIC ET 200SP AQ 2xU/I HF 16-Bit Analog Output Module

SIMATIC ET 200SP AQ 2xU/I HF analog output, 2 channels, up to 16-bit, isochronous mode.

Rated operational voltage
24 V AC
Communication
PROFINET/PROFIBUS (via GSD)
EAN
4047623403371
Description

About the AQ 2xU/I HF

The Siemens 6ES7135-6HB00-0CA1 is a SIMATIC ET 200SP analog output module (AQ 2xU/I HF) with 2 channels, each configurable for voltage (0-10 V, +/-10 V, 1-5 V, +/-5 V) or current (0-20 mA, 4-20 mA, +/-20 mA) output at up to 16-bit resolution. It supports isochronous mode at a 250 microsecond execution time.

Selection Notes

Both channels support voltage and current output on the same module, so one part number covers 0-10 V positioning references and 4-20 mA valve or actuator commands without stocking separate voltage-only and current-only variants. Isochronous mode with a 250 microsecond execution time matters for motion or closed-loop control synchronized to the PROFINET IRT cycle; a simple setpoint output without hard real-time timing doesn't need that configuration. The 1,000 m shielded cable length on current output versus 200 m on voltage output should drive the channel-type choice on long runs to field actuators, and the fixed 750 microsecond minimum cycle time across both channels caps the fastest possible update rate.

Applications

Analog setpoint output to VFDs and valve positioners, proportional valve control, and closed-loop process control loops on ET 200SP distributed I/O stations.

Specification

Full specification

110 values · Last verified 01 Nov 2026

General information 15

Product type designation AQ 2xU/I HF
HW functional status from FS21
Firmware version V1.0.3
FW update possible Yes
usable BaseUnits BU type A0, A1
Color code for module-specific color-coded label CC00
Product function: I&M data Yes; I&M0 to I&M3
Product function: Isochronous mode Yes; 250 µs
Engineering with: STEP 7 TIA Portal configurable/integrated from version V13 / V13
Engineering with: STEP 7 configurable/integrated from version V5.5 SP3 / -
Engineering with: PCS 7 configurable/integrated from version V8.1 SP1
Engineering with: PROFIBUS from GSD version/GSD revision GSD Revision 5
Engineering with: PROFINET from GSD version/GSD revision GSDML V2.3
Operating mode: Oversampling No
Operating mode: MSO No

CiR - Configuration in RUN 2

Reparameterization possible in RUN No
Calibration possible in RUN No

Supply voltage 4

Rated value (DC) 24 V
permissible range, lower limit (DC) 19.2 V
permissible range, upper limit (DC) 28.8 V
Reverse polarity protection Yes
Show all 110 specifications ↓ Show less ↑89 more values in Identification, Input current, Power loss, Address area, Hardware configuration, Analog outputs, Analog value generation for the outputs, Errors/accuracies, (+/-), Isochronous mode, Interrupts/diagnostics/status information, Potential separation, Isolation, Standards, approvals, certificates, Ambient conditions, Dimensions, Weights, EClass 6 27-24-26-01, Logistics.

Identification 10

Part number 6ES7135-6HB00-0CA1
Type designation AQ 2xU/I HF
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4047623403371
ETIM class EC001596
eCl@ss 27242601

Input current 2

Current consumption (rated value) 45 mA; without load
Current consumption, max. 90 mA; 2 channels current output 20 mA

Power loss 1

Power loss, typ. 0.9 W

Address area 1

Address space per module: Address space per module, max. 4 byte; + 1 byte for QI information

Hardware configuration 3

Automatic encoding Yes
Mechanical coding element Yes
Type of mechanical coding element Type A

Analog outputs 18

Number of analog outputs 2
Voltage output, short-circuit protection Yes
Voltage output, short-circuit current, max. 45 mA
Cycle time (all channels), min. 750 µs
Output ranges, voltage: 0 to 10 V Yes; 15 bit
Output ranges, voltage: 1 V to 5 V Yes; 13 bit
Output ranges, voltage: -5 V to +5 V Yes; 15 bit incl. sign
Output ranges, voltage: -10 V to +10 V Yes; 16 bit incl. sign
Output ranges, current: 0 to 20 mA Yes; 15 bit
Output ranges, current: -20 mA to +20 mA Yes; 16 bit incl. sign
Output ranges, current: 4 mA to 20 mA Yes; 14 bit
Connection of actuators: for voltage output two-wire connection Yes
Connection of actuators: for voltage output four-wire connection Yes
Connection of actuators: for current output two-wire connection Yes
Load impedance (in rated range of output): with voltage outputs, min. 2 kΩ
Load impedance (in rated range of output): with current outputs, max. 500 Ω
Destruction limits against externally applied voltages and currents: Voltages at the outputs 30 V
Cable length: shielded, max. 1 000 m; 200 m for voltage output

Analog value generation for the outputs 4

Integration and conversion time/resolution per channel: Resolution with overrange (bit including sign), max. 16 bit
Settling time: for resistive load 0.05 ms
Settling time: for capacitive load 0.05 ms; Max. 47 nF and 20 m cable length
Settling time: for inductive load 0.05 ms

Errors/accuracies 1

Output ripple (relative to output range, bandwidth 0 to 50 kHz), 0.02 %

(+/-) 8

Linearity error (relative to output range), (+/-) 0.03 %
Temperature error (relative to output range), (+/-) 0.003 %/K
Crosstalk between the outputs, max. -50 dB
Repeat accuracy in steady state at 25 °C (relative to output range), (+/-) 0.03 %
Operational error limit in overall temperature range: Voltage, relative to output range, (+/-) 0.2 %
Operational error limit in overall temperature range: Current, relative to output range, (+/-) 0.2 %
Basic error limit (operational limit at 25 °C): Voltage, relative to output range, (+/-) 0.1 %
Basic error limit (operational limit at 25 °C): Current, relative to output range, (+/-) 0.1 %

Isochronous mode 3

Execution and activation time (TCO), min. 500 µs
Bus cycle time (TDP), min. 750 µs
Jitter, max. 5 µs

Interrupts/diagnostics/status information 12

Diagnostics function Yes
Substitute values connectable Yes
Alarms: Diagnostic alarm Yes
Diagnoses: Monitoring the supply voltage Yes
Diagnoses: Wire break Yes; channel-by-channel, only for output type "current"
Diagnoses: Short-circuit Yes; channel-by-channel, only for output type "voltage"
Diagnoses: Group error Yes
Diagnoses: Overflow/Underflow Yes; channel by channel
Diagnostics indication LED: Monitoring of the supply voltage (PWR-LED) Yes; green PWR LED
Diagnostics indication LED: Channel status display Yes; green LED
Diagnostics indication LED: for channel diagnostics Yes; red LED
Diagnostics indication LED: for module diagnostics Yes; green/red DIAG LED

Potential separation 3

Potential separation channels: between the channels No
Potential separation channels: between the channels and backplane bus Yes
Potential separation channels: between the channels and the power supply of the electronics Yes

Isolation 1

Isolation tested with 707 V DC (type test)

Standards, approvals, certificates 5

Ecological footprint: environmental product declaration Global warming potential Yes
Ecological footprint: global warming potential, (total) [CO2 eq] 28.6 kg
Ecological footprint: global warming potential, (during production) [CO2 eq] 5.33 kg
Ecological footprint: global warming potential, (during operation) [CO2 eq] 23.6 kg
Ecological footprint: global warming potential, (after end of life cycle) [CO2 eq] -0.343 kg

Ambient conditions 4

Ambient temperature during operation: horizontal installation, min. -30 °C; < 0 °C as of FS04
Ambient temperature during operation: vertical installation, min. -30 °C; < 0 °C as of FS04
Altitude during operation relating to sea level: Installation altitude above sea level, max. 5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP System Manual
Absolute humidity: dew point, min. -60 °C; suitable for dry room applications

Dimensions 3

Width 15 mm
Height 73 mm
Depth 58 mm

Weights 1

Weight, approx. 31 g

EClass 6 27-24-26-01 3

ETIM 10 EC001596
IDEA 4 3562
UNSPSC 15 32-15-17-05

Logistics 6

Net weight 0.038 kg
Country of origin DE
Shipping weight 0.538 kg
Ships from Türkiye
Dispatch 18 Nov
Stock In stock

Source: manufacturer data · Last verified: 01 Nov 2026

Documents

Documents for 6ES7135-6HB00-0CA1

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the AQ 2xU/I HF

Which supply voltage is AQ 2xU/I HF rated for?

The rated operational voltage of AQ 2xU/I HF is 24 V AC.

What is the HS code of AQ 2xU/I HF for customs?

The tariff (HS) code on file for AQ 2xU/I HF is 85389091.

What is the EAN of AQ 2xU/I HF?

The EAN (GTIN) of AQ 2xU/I HF is 4047623403371.

Where does AQ 2xU/I HF ship from, and how fast?

AQ 2xU/I HF ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
