Part number
6ES7135-6GB00-0BA1
Model no
AQ 2xI ST
$221.49 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
SIMATIC ET 200SP

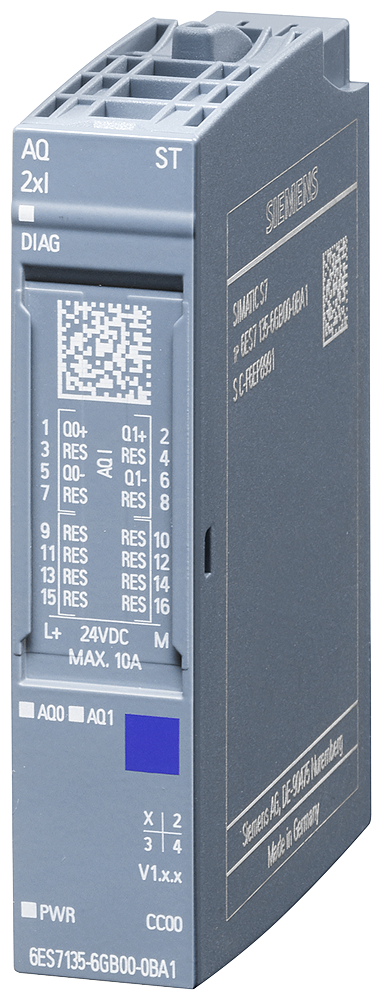

Siemens 6ES7135-6GB00-0BA1 SIMATIC ET 200SP AQ 2xI Standard 16-Bit Analog Output Module

SIMATIC ET 200SP AQ 2xI Standard analog output module: 2 channels, 16-bit, 0/4-20mA.

Rated operational voltage
24 V AC
EAN
4047623406693
Description

About the AQ 2xI ST

The Siemens 6ES7135-6GB00-0BA1 is a SIMATIC ET 200SP AQ 2xI Standard analog output module with 2 current output channels at 16-bit resolution including sign. It plugs onto BaseUnit type A0 or A1 and outputs 0-20 mA, 4-20 mA, or -20 to +20 mA per channel with a minimum cycle time of 1 ms for both channels. Module diagnostics and substitute-value output are built in.

Selection Notes

This AQ 2xI Standard module resolves current outputs to 16 bit including sign on the bipolar -20 to +20 mA range, or 14 to 15 bit on the unipolar ranges, enough for most process control loops without a high-feature module. Load impedance is capped at 500 ohm per channel, so check downstream cable and actuator resistance before wiring. It mounts on BaseUnit type A0 or A1, the same BaseUnits used across the ET 200SP standard I/O family, so it slots into an existing station without a special carrier.

Applications

Typical uses include driving 4-20 mA control valve positioners, VFD speed references, and other current-loop actuators from an ET 200SP remote I/O station on PROFINET or PROFIBUS.

Specification

Full specification

92 values · Last verified 01 Nov 2026

General information 15

Product type designation AQ 2xI ST
HW functional status from FS21
Firmware version V1.0.2
FW update possible Yes
usable BaseUnits BU type A0, A1
Color code for module-specific color-coded label CC00
Product function: I&M data Yes; I&M0 to I&M3
Product function: Isochronous mode No
Product function: Output range scalable No
Engineering with: STEP 7 TIA Portal configurable/integrated from version V13 SP1 / -
Engineering with: STEP 7 configurable/integrated from version V5.5 SP3 / -
Engineering with: PROFIBUS from GSD version/GSD revision GSD Revision 5
Engineering with: PROFINET from GSD version/GSD revision GSDML V2.3
Operating mode: Oversampling No
Operating mode: MSO No

CiR - Configuration in RUN 2

Reparameterization possible in RUN No
Calibration possible in RUN No

Supply voltage 4

Rated value (DC) 24 V
permissible range, lower limit (DC) 19.2 V
permissible range, upper limit (DC) 28.8 V
Reverse polarity protection Yes
Show all 92 specifications ↓ Show less ↑71 more values in Identification, Input current, Power loss, Address area, Hardware configuration, Analog outputs, Analog value generation for the outputs, Errors/accuracies, Interrupts/diagnostics/status information, Potential separation, Isolation, Standards, approvals, certificates, Ambient conditions, Dimensions, Weights, Logistics.

Identification 10

Part number 6ES7135-6GB00-0BA1
Type designation AQ 2xI ST
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4047623406693
ETIM class EC001596
eCl@ss 27242601

Input current 1

Current consumption, max. 110 mA

Power loss 1

Power loss, typ. 1.5 W

Address area 1

Address space per module: Address space per module, max. 4 byte; + 1 byte for QI information

Hardware configuration 3

Automatic encoding Yes
Mechanical coding element Yes
Type of mechanical coding element Type A

Analog outputs 10

Number of analog outputs 2
Cycle time (all channels), min. 1 ms
Analog output with oversampling No
Output ranges, current: 0 to 20 mA Yes; 15 bit
Output ranges, current: -20 mA to +20 mA Yes; 16 bit incl. sign
Output ranges, current: 4 mA to 20 mA Yes; 14 bit
Connection of actuators: for current output two-wire connection Yes
Load impedance (in rated range of output): with current outputs, max. 500 Ω
Destruction limits against externally applied voltages and currents: Voltages at the outputs 30 V
Cable length: shielded, max. 1 000 m

Analog value generation for the outputs 3

Integration and conversion time/resolution per channel: Resolution with overrange (bit including sign), max. 16 bit
Settling time: for resistive load 0.1 ms; Typical value
Settling time: for inductive load 0.5 ms

Errors/accuracies 8

Linearity error (relative to output range), (+/-) 0.03 %
Temperature error (relative to output range), (+/-) 0.005 %/K
Crosstalk between the outputs, min. -50 dB
Repeat accuracy in steady state at 25 °C (relative to output range), (+/-) 0.05 %
Operational error limit in overall temperature range: Voltage, relative to output range, (+/-) 0.5 %
Operational error limit in overall temperature range: Current, relative to output range, (+/-) 0.5 %
Basic error limit (operational limit at 25 °C): Voltage, relative to output range, (+/-) 0.3 %
Basic error limit (operational limit at 25 °C): Current, relative to output range, (+/-) 0.3 %

Interrupts/diagnostics/status information 11

Diagnostics function Yes
Substitute values connectable Yes
Alarms: Diagnostic alarm Yes
Diagnoses: Monitoring the supply voltage Yes
Diagnoses: Wire break Yes
Diagnoses: Group error Yes
Diagnoses: Overflow/Underflow Yes; module-wise
Diagnostics indication LED: Monitoring of the supply voltage (PWR-LED) Yes; green PWR LED
Diagnostics indication LED: Channel status display Yes; green LED
Diagnostics indication LED: for channel diagnostics No
Diagnostics indication LED: for module diagnostics Yes; green/red DIAG LED

Potential separation 3

Potential separation channels: between the channels No
Potential separation channels: between the channels and backplane bus Yes
Potential separation channels: between the channels and the power supply of the electronics Yes

Isolation 1

Isolation tested with 707 V DC (type test)

Standards, approvals, certificates 5

Ecological footprint: environmental product declaration Global warming potential Yes
Ecological footprint: global warming potential, (total) [CO2 eq] 28.6 kg
Ecological footprint: global warming potential, (during production) [CO2 eq] 5.33 kg
Ecological footprint: global warming potential, (during operation) [CO2 eq] 23.6 kg
Ecological footprint: global warming potential, (after end of life cycle) [CO2 eq] -0.343 kg

Ambient conditions 4

Ambient temperature during operation: horizontal installation, min. -30 °C; < 0 °C as of FS03
Ambient temperature during operation: vertical installation, min. -30 °C; < 0 °C as of FS03
Altitude during operation relating to sea level: Installation altitude above sea level, max. 5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP System Manual
Absolute humidity: dew point, min. -60 °C; suitable for dry room applications

Dimensions 3

Width 15 mm
Height 73 mm
Depth 58 mm

Weights 1

Weight, approx. 31 g

Logistics 6

Net weight 0.039 kg
Country of origin DE
Shipping weight 0.539 kg
Ships from Türkiye
Dispatch 18 Nov
Stock In stock

Source: manufacturer data · Last verified: 01 Nov 2026
