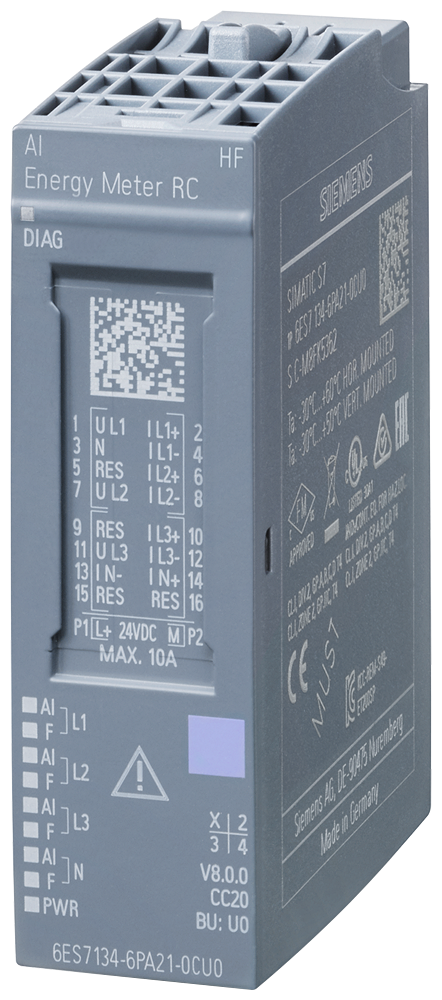

Siemens 6ES7134-6PA21-0CU0 SIMATIC ET 200SP AI Energy Meter RC HF Rogowski Remote I/O Module

% $-447.72
Siemens 6ES7134-6PA21-0CU0 ET 200SP AI Energy Meter RC HF Remote I/O Module
Siemens 6ES7134-6PA21-0CU0 ET 200SP AI Energy Meter RC HF Remote I/O Module

Siemens 6ES7134-6PA21-0CU0 SIMATIC ET 200SP AI Energy Meter RC HF Rogowski Remote I/O Module

Brand: Siemens
Reference No: 6ES7134-6PA21-0CU0
Catalog No: 6ES7134-6PA21-0CU0
Series: SIMATIC ET 200SP
Tariff Code (HS): 85389091
Rated Voltage: 3-519 V (measuring range)
Communication: PROFIBUS, PROFINET (via BaseUnit)
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$447.72

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6ES7134-6PA21-0CU0 is a SIMATIC ET 200SP analog input module, AI Energy Meter RC HF, that measures voltage, current, power and energy on up to 4 channels using Rogowski coils or a 333 mV current-voltage converter, with line analysis for THD, harmonics, and voltage dip/swell. It reaches IEC 61557-12 accuracy class 0.2 for voltage and current.

Technical Specifications

SKU 6ES7134-6PA21-0CU0
Brand Siemens
Series SIMATIC ET 200SP
Product Type Designation AI Energy Meter RC HF
Firmware Version V8.0
Usable BaseUnits BU type U0
Current Measurement Max. 4 channels, Rogowski coil or 333 mV I/U converter
Voltage Measurement With or without voltage transformer
Line Analysis THD and harmonics for current and voltage, voltage dip/swell
Rated Supply Voltage (DC) 24 V, 19.2-28.8 V range
Current Consumption 12.5 mA rated, 17 mA max.
Power Loss, typ. 400 mW
Measurable Line Voltage (phase-neutral) 3-300 V
Measurable Line Voltage (phase-phase) 6-519 V
Measurable Current Input, max. 424 mV (Rogowski/I-U converter)
Accuracy Class (voltage/current, IEC 61557-12) 0.2
Accuracy Class (active power) 0.5
Address Space 256 byte inputs, 20 byte outputs
Cable Length, max. 200 m shielded/unshielded
Cyclic Update Time, typ. 50 ms
Net Weight 0.043 kg
Country of Origin DE

Selection Notes

The Rogowski-coil input keeps installation simple against clamped conductors, and the added HF line-analysis (THD, harmonics, dip/swell) makes the 6ES7134-6PA21-0CU0 the pick over the ST variant when power-quality monitoring is needed alongside billing-grade metering. Choose the CT-input energy meter instead where a current transformer secondary circuit is already wired into the switchgear.

Technical Details

Short Description
SIMATIC ET 200SP AI Energy Meter RC HF, Rogowski coil input, THD/harmonics, class 0.2.
Rated Voltage (VAC)
3-519 V (measuring range)
Mounting Type
ET 200SP BaseUnit type U0
Catalog No
6ES7134-6PA21-0CU0
Delivery Date (Days)
10-15 days
Model Number
6ES7134-6PA21-0CU0
Tariff Code
85389091
