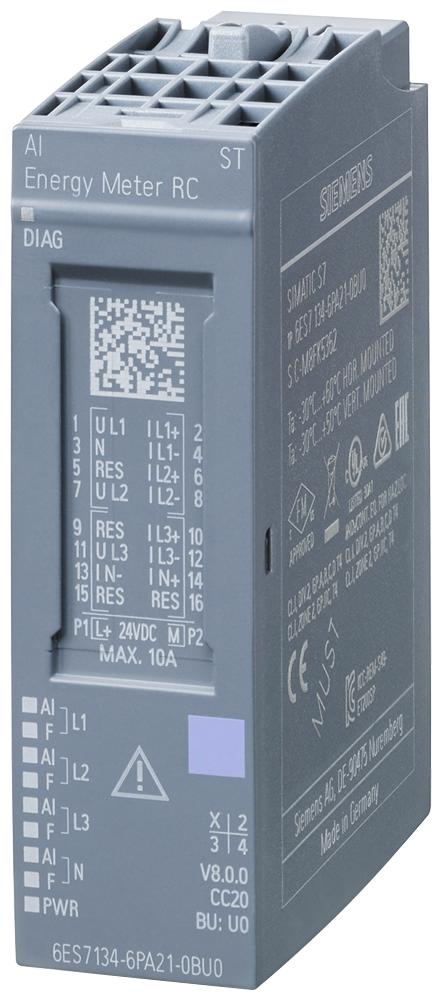

The Siemens 6ES7134-6PA21-0BU0 is a SIMATIC ET 200SP analog input module, AI Energy Meter RC ST, that measures voltage, current, power and energy using Rogowski coils or a 333 mV current-voltage converter on up to 3 phases plus neutral. It reaches IEC 61557-12 accuracy class 0.2 for voltage and current without the line-analysis functions of the HF variant.
The Rogowski-coil or 333 mV converter input on the 6ES7134-6PA21-0BU0 avoids the CT secondary wiring the CT-input energy meters need, which suits retrofits where a Rogowski coil is already clamped around the conductor. Without the HF line-analysis functions (THD, harmonics, dip/swell), this ST variant is the choice for straightforward energy and power metering rather than power-quality diagnostics.
| Product type designation | AI Energy Meter RC ST |
|---|---|
| Firmware version | V8.0 |
| FW update possible | Yes |
| usable BaseUnits | BU type U0 |
| Color code for module-specific color-coded label | CC20 |
| Supported power supply systems | TT, TN, IT |
| Product function: Voltage measurement | Yes |
| Product function: without voltage transformer | Yes |
| Product function: with voltage transformer | Yes |
| Product function: Current measurement | Yes; max. 3 + neutral conductor |
| Product function: without current transformer | No |
| Product function: with current transformer | No |
| Product function: With Rogowski coil | Yes |
| Product function: With current-voltage-converter | Yes; 333 mV interface |
| Product function: Energy measurement | Yes |
| Product function: Frequency measurement | Yes |
| Product function: Power measurement | Yes |
| Product function: Active power measurement | Yes |
| Product function: Reactive power measurement | Yes |
| Product function: Power factor measurement | Yes |
| Product function: Active factor measurement | Yes |
| Product function: Reactive power compensation | Yes |
| Product function: Line analysis | No |
| Product function: I&M data | Yes; I&M0 to I&M3 |
| Product function: Isochronous mode | No |
| Engineering with: STEP 7 TIA Portal configurable/integrated from version | STEP 7 V16 or higher with HSP |
| Engineering with: STEP 7 configurable/integrated from version | Configurable via GSD file |
| Engineering with: PROFIBUS from GSD version/GSD revision | One GSD file each, Revision 3 and 5 and higher |
| Engineering with: PROFINET from GSD version/GSD revision | V2.3 |
| Operating mode: Switching between operating modes in RUN | Yes; For module version 32 I/20 Q, it is possible to dynamically switch between 25 user data variants, 23 of which are pre-defined and 2 of which can be defined by the specific user |
| Operating mode: Cyclic measured value access | Yes |
| Operating mode: Acyclic measured value access | Yes |
| Operating mode: Fixed measured value sets | Yes |
| Operating mode: Freely definable measured value sets | Yes; For cyclic and acyclic measured value access |
| Reparameterization possible in RUN | Yes |
|---|---|
| Calibration possible in RUN | Yes |
| Mounting position | any |
|---|
| Part number | 6ES7134-6PA21-0BU0 |
|---|---|
| Type designation | AI Energy Meter RC ST |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047623411765 |
| ETIM class | EC001596 |
| eCl@ss | 27242601 |
| Rated value (DC) | 24 V |
|---|---|
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Current consumption (rated value) | 12.5 mA |
|---|---|
| Current consumption, max. | 17 mA |
| Power loss, typ. | 400 mW; 3x 230 V AC |
|---|
| Address space per module: Inputs | 256 byte |
|---|---|
| Address space per module: Outputs | 20 byte |
| Automatic encoding | Yes |
|---|---|
| Mechanical coding element | Yes |
| Type of mechanical coding element | type C |
| Selection of BaseUnit for connection variants: 2-wire connection | BU type U0 |
| Operating hours counter: present | Yes |
|---|
| Cycle time (all channels), typ. | 50 ms; Time for consistent update of all measured and calculated values (cyclic und acyclic data) |
|---|---|
| Cable length: shielded, max. | 200 m |
| Cable length: unshielded, max. | 200 m |
| Sampling frequency, max. | 2 048 kHz |
|---|
| Alarms: Diagnostic alarm | Yes |
|---|---|
| Alarms: Limit value alarm | Yes |
| Alarms: Hardware interrupt | Yes; Monitoring of up to 16 freely selectable process values (exceeding or undershooting of value) |
| Diagnoses: Supply voltage | Yes |
| Diagnoses: Hardware interrupt lost | Yes |
| Diagnoses: Parameter assignment error | Yes |
| Diagnoses: Module fault | Yes |
| Diagnoses: Channel not available | Yes |
| Diagnoses: Overflow/Underflow | Yes |
| Diagnoses: Overload current | Yes |
| Diagnostics indication LED: Monitoring of the supply voltage (PWR-LED) | Yes |
| Diagnostics indication LED: Channel status display | Yes; green LED |
| Diagnostics indication LED: for channel diagnostics | Yes; red Fn LED |
| Diagnostics indication LED: for module diagnostics | Yes; green/red DIAG LED |
| Measuring functions: Measuring procedure for voltage measurement | TRMS |
|---|---|
| Measuring functions: Measuring procedure for current measurement | TRMS |
| Measuring functions: Type of measured value acquisition | seamless |
| Measuring functions: Curve shape of voltage | Sinusoidal or distorted |
| Measuring functions: Buffering of measured variables | Yes |
| Measuring functions: Parameter length | 128 byte |
| Measuring functions: Bandwidth of measured value acquisition Measuring range | 3.2 kHz; Harmonics: 63 / 50 Hz, 52 / 60 Hz |
| Measuring functions: Frequency measurement, min. | 40 Hz |
| Measuring functions: Frequency measurement, max. Measuring inputs for voltage | 70 Hz |
| Measuring functions: Measurable line voltage between phase and neutral conductor | 277 V |
| Measuring functions: Measurable line voltage between the line conductors | 480 V |
| Measuring functions: Internal resistance line conductor and neutral conductor | 1.5 MΩ |
| Measuring functions: Power consumption per phase | 60 mW; 300 V AC |
| Measuring functions: Impulse voltage resistance 1,2/50µs | 2.5 kV |
| Measuring functions: Overvoltage category Measuring inputs for current (Rog. or I/U converter) | CAT II according to IEC 61010 Part 1 |
| Measuring functions: Measurable current at AC, max. | 424 mV |
| Measuring functions: Continuous voltage, maximum permissible | 2 V |
| Measuring functions: Rated value, short-time withstand voltage restricted to 1 s | 30 V |
| Measuring functions: Input resistance | 120 kΩ |
| Measuring functions: Zero point suppression Accuracy class according to IEC 61557-12 | Yes; 0 ... 20%, referred to the nominal current |
| Measuring functions: Measured variable voltage | 0,2 |
| Measuring functions: Measured variable current | 0,2 |
| Measuring functions: Measured variable apparent power | 0.5 |
| Measuring functions: Measured variable active power | 0.5 |
| Measuring functions: Measured variable reactive power | 1 |
| Measuring functions: Measured variable power factor | 0.5 |
| Measuring functions: Measured variable active energy | 0.5 |
| Measuring functions: Measured variable reactive energy | 1 |
| Measuring functions: Measured variable neutral current | 0,2 |
| Measuring functions: Measured variable phase angle | ±0.5 °; not covered by IEC 61557-12 |
| Measuring functions: Measured variable frequency | 0.05; only valid for the permissible voltage measuring range |
| Potential separation channels: between the channels | No |
|---|---|
| Potential separation channels: between the channels and backplane bus | Yes |
| Potential separation channels: Between the channels and load voltage L+ | Yes; Including FE |
| Isolation tested with | Between channels and backplane bus, 24 V supply: Routine test, 1 920 V AC, 2 s; between backplane bus and 24 V supply: Type test, 707 V DC |
|---|
| Ecological footprint: environmental product declaration Global warming potential | Yes |
|---|---|
| Ecological footprint: global warming potential, (total) [CO2 eq] | 9.32 kg |
| Ecological footprint: global warming potential, (during production) [CO2 eq] | 4.97 kg |
| eClass | 16 27-24-26-01 |
|---|---|
| ETIM | 10 EC001596 |
| IDEA | 4 3562 |
| UNSPSC | 15 32-15-17-05 |
| Miscellaneous Manufacturer Declara-tion | For use in hazard- |
|---|---|
| General Product Approval China RoHS | ous locations |
| Net weight | 0.043 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 0.543 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated operational voltage of AI Energy Meter RC ST is 3–519 V AC.
The tariff (HS) code on file for AI Energy Meter RC ST is 85389091.
The EAN (GTIN) of AI Energy Meter RC ST is 4047623411765.
AI Energy Meter RC ST ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
