Part number
6ES7134-6PA01-0CU0
Model no
AI Energy Meter CT HF
$448.16 On request Dispatch — · From TürkiyeGet a Quote
SIMATIC ET 200SP

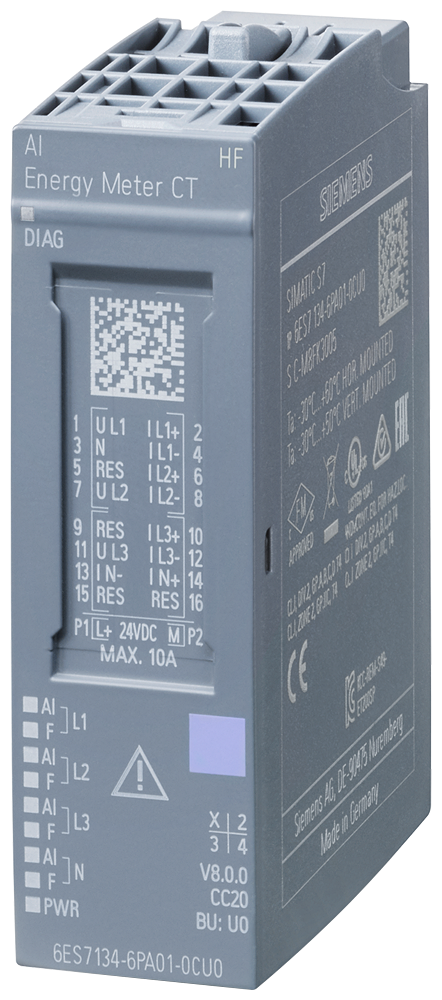

Siemens 6ES7134-6PA01-0CU0 SIMATIC ET 200SP AI Energy Meter CT HF 4-Channel Remote I/O Module

SIMATIC ET 200SP AI Energy Meter CT HF, 4-channel, 1A/5A CT input, IEC 61557-12 class 0.2.

Rated current
1 A
Rated operational voltage
3–519 V AC
Communication
PROFIBUS, PROFINET (via BaseUnit)
EAN
4047623411758
Description

About the AI Energy Meter CT HF

The Siemens 6ES7134-6PA01-0CU0 is a SIMATIC ET 200SP analog input module, AI Energy Meter CT HF, that measures voltage, current, power, energy and frequency on up to 4 channels using 1 A or 5 A current transformers. It adds line analysis with THD and harmonics measurement, achieving IEC 61557-12 accuracy class 0.2 for voltage and current.

Selection Notes

The direct 1 A/5 A current transformer input and IEC 61557-12 class 0.2 voltage/current accuracy make the 6ES7134-6PA01-0CU0 suited to feeder-level energy metering where an existing CT secondary circuit is already in place. The added line-analysis functions (THD, harmonics, voltage dip/swell detection) separate it from a basic AI Energy Meter variant without the HF suffix, so pick this module when power-quality monitoring is needed alongside billing-grade metering, not just kWh totals.

Specification

Full specification

157 values · Last verified 01 Nov 2026

General information 39

Product type designation AI Energy Meter CT HF
Firmware version V8.0
FW update possible Yes
usable BaseUnits BU type U0
Color code for module-specific color-coded label CC20
Supported power supply systems TT, TN, IT
Product function: Voltage measurement Yes
Product function: without voltage transformer Yes
Product function: with voltage transformer Yes
Product function: Current measurement Yes; Max. 4
Product function: without current transformer No
Product function: with current transformer Yes; 1 A or 5 A current transformer
Product function: With Rogowski coil No
Product function: With current-voltage-converter No
Product function: Energy measurement Yes
Product function: Frequency measurement Yes
Product function: Power measurement Yes
Product function: Active power measurement Yes
Product function: Reactive power measurement Yes
Product function: Power factor measurement Yes
Product function: Active factor measurement Yes
Product function: Reactive power compensation Yes
Product function: Line analysis Yes
Product function: Monitoring of instantaneous and half-wave values Yes
Product function: THD measurement for current and voltage Yes
Product function: Harmonics for current and voltage Yes
Product function: Voltage dip (DIP) Yes
Product function: Voltage swell Yes
Product function: I&M data Yes; I&M0 to I&M3
Product function: Isochronous mode No
Engineering with: STEP 7 TIA Portal configurable/integrated from version STEP 7 V16 or higher with HSP
Engineering with: STEP 7 configurable/integrated from version V5.5 SP3 or higher
Engineering with: PROFIBUS from GSD version/GSD revision One GSD file each, Revision 3 and 5 and higher
Engineering with: PROFINET from GSD version/GSD revision V2.3
Operating mode: Switching between operating modes in RUN Yes; For module version 32 I/20 Q, it is possible to dynamically switch between 25 user data variants, 23 of which are pre-defined and 2 of which can be defined by the specific user
Operating mode: Cyclic measured value access Yes
Operating mode: Acyclic measured value access Yes
Operating mode: Fixed measured value sets Yes
Operating mode: Freely definable measured value sets Yes; For cyclic and acyclic measured value access

CiR - Configuration in RUN 2

Reparameterization possible in RUN Yes
Calibration possible in RUN Yes

Installation type/mounting 1

Mounting position any
Show all 157 specifications ↓ Show less ↑115 more values in Identification, Supply voltage, Input current, Power loss, Address area, Hardware configuration, Time of day, Analog inputs, Analog value generation for the inputs, Interrupts/diagnostics/status information, Integrated Functions, Potential separation, Isolation, Standards, approvals, certificates, Ambient conditions, Dimensions, Weights, Other, EClass 7.1 27-24-26-01, General Product Approval, For use in hazard-Maritime application ous locations, Logistics.

Identification 10

Part number 6ES7134-6PA01-0CU0
Type designation AI Energy Meter CT HF
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4047623411758
ETIM class EC001596
eCl@ss 27242601

Supply voltage 3

Rated value (DC) 24 V
permissible range, lower limit (DC) 19.2 V
permissible range, upper limit (DC) 28.8 V

Input current 2

Current consumption (rated value) 12.5 mA
Current consumption, max. 17 mA

Power loss 1

Power loss, typ. 1.4 W; 4x 6 A input current, 3x 230 V AC

Address area 2

Address space per module: Inputs 256 byte
Address space per module: Outputs 20 byte

Hardware configuration 4

Automatic encoding Yes
Mechanical coding element Yes
Type of mechanical coding element type C
Selection of BaseUnit for connection variants: 2-wire connection BU type U0

Time of day 1

Operating hours counter: present Yes

Analog inputs 3

Cycle time (all channels), typ. 50 ms; Time for consistent update of all measured and calculated values (cyclic und acyclic data)
Cable length: shielded, max. 200 m
Cable length: unshielded, max. 200 m

Analog value generation for the inputs 1

Sampling frequency, max. 2 048 kHz

Interrupts/diagnostics/status information 15

Alarms: Diagnostic alarm Yes
Alarms: Limit value alarm Yes
Alarms: Hardware interrupt Yes; Monitoring of up to 16 freely selectable process values (exceeding or undershooting of value)
Diagnoses: Line quality Yes
Diagnoses: Supply voltage Yes
Diagnoses: Hardware interrupt lost Yes
Diagnoses: Parameter assignment error Yes
Diagnoses: Module fault Yes
Diagnoses: Channel not available Yes
Diagnoses: Overflow/Underflow Yes
Diagnoses: Overload current Yes
Diagnostics indication LED: Monitoring of the supply voltage (PWR-LED) Yes
Diagnostics indication LED: Channel status display Yes; green LED
Diagnostics indication LED: for channel diagnostics Yes; red Fn LED
Diagnostics indication LED: for module diagnostics Yes; green/red DIAG LED

Integrated Functions 41

Measuring functions: Measuring procedure for voltage measurement TRMS
Measuring functions: Measuring procedure for current measurement TRMS
Measuring functions: Type of measured value acquisition seamless
Measuring functions: Curve shape of voltage Sinusoidal or distorted
Measuring functions: Buffering of measured variables Yes
Measuring functions: Parameter length 128 byte
Measuring functions: Bandwidth of measured value acquisition Measuring range 3.2 kHz; Harmonics: 63 / 50 Hz, 52 / 60 Hz
Measuring functions: Frequency measurement, min. 40 Hz
Measuring functions: Frequency measurement, max. Measuring inputs for voltage 70 Hz
Measuring functions: Measurable line voltage between phase and neutral conductor 277 V
Measuring functions: Measurable line voltage between the line conductors 480 V
Measuring functions: Internal resistance line conductor and neutral conductor 1.5 MΩ
Measuring functions: Power consumption per phase 60 mW; 300 V AC
Measuring functions: Impulse voltage resistance 1,2/50µs 2.5 kV
Measuring functions: Measurement category for voltage measurement in accordance with IEC 61010-2-030 Measuring inputs for current CAT II
Measuring functions: measurable relative current (AC), min. 1 %; Relative to measuring range; 1 A, 5 A
Measuring functions: measurable relative current (AC), max. 120 %; Relative to the secondary rated current 5 A
Measuring functions: Continuous current with AC, maximum permissible 5 A; 6 A permanent thermal overload
Measuring functions: Apparent power consumption per phase for measuring range 5 A 0.6 V·A
Measuring functions: Rated value short-time withstand current restricted to 1 s 100 A
Measuring functions: Input resistance measuring range 0 to 5 A 25 mΩ; At the terminal
Measuring functions: Surge strength 10 A; for 1 minute
Measuring functions: Zero point suppression Accuracy class according to IEC 61557-12 0 ... 20%, referred to the nominal current
Measuring functions: Measured variable voltage 0,2
Measuring functions: Measured variable current 0,2
Measuring functions: Measured variable apparent power 0.5
Measuring functions: Measured variable active power 0.5
Measuring functions: Measured variable reactive power 1
Measuring functions: Measured variable power factor 0.5
Measuring functions: Measured variable active energy 0.5
Measuring functions: Measured variable reactive energy 1
Measuring functions: Measured variable neutral current 0,2
Measuring functions: Measured variable phase angle ±0.5 °; not covered by IEC 61557-12
Measuring functions: Measured variable frequency 0.05; only valid for the permissible voltage measuring range
Measuring functions: Measured variable harmonic 1
Measuring functions: Measured variable THDU 1
Measuring functions: Measured variable THDI Accuracy class line analysis acc. to IEC 61000-4-30 1
Measuring functions: Measured variable voltage interruption Class S
Measuring functions: Measured variable voltage dip and swell Class S
Measuring functions: Measured variable harmonic voltage Class S
Measuring functions: Measured variable harmonic current Class S

Potential separation 3

Potential separation channels: between the channels No
Potential separation channels: between the channels and backplane bus Yes
Potential separation channels: Between the channels and load voltage L+ Yes; Including FE

Isolation 1

Isolation tested with Between channels and backplane bus, 24 V supply: Routine test, 1 920 V AC, 2 s; between backplane bus and 24 V supply: Type test, 707 V DC

Standards, approvals, certificates 5

Ecological footprint: environmental product declaration Global warming potential Yes
Ecological footprint: global warming potential, (total) [CO2 eq] 9.32 kg
Ecological footprint: global warming potential, (during production) [CO2 eq] 4.97 kg
Ecological footprint: global warming potential, (during operation) [CO2 eq] 4.79 kg
Ecological footprint: global warming potential, (after end of life cycle) [CO2 eq] -0.449 kg

Ambient conditions 4

Ambient temperature during operation: horizontal installation, min. -30 °C
Ambient temperature during operation: vertical installation, min. -30 °C
Altitude during operation relating to sea level: Installation altitude above sea level, max. 3 000 m; Restrictions for installation altitudes > 2 000 m, see manual
Absolute humidity: dew point, min. -60 °C; suitable for dry room applications

Dimensions 3

Width 20 mm
Height 73 mm
Depth 58 mm

Weights 1

Weight, approx. 45 g

Other 2

Data for selecting a voltage transformer: Secondary side, max. 300 V
Data for selecting a current transformer: Burden power current transformer x/1A, min. As a function of cable length and cross section, see device manual

EClass 7.1 27-24-26-01 4

eClass 6 27-24-26-01
ETIM 10 EC001596
IDEA 4 3562
UNSPSC 15 32-15-17-05

General Product Approval 2

Miscellaneous Manufacturer Declara-tion For use in hazard-
General Product Approval China RoHS ous locations

For use in hazard-Maritime application ous locations 1

FM NK / Nippon Kaiji Ky- okai

Logistics 6

Net weight 0.055 kg
Country of origin DE
Shipping weight 0.555 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 01 Nov 2026
