Part number
6ES7134-6JF00-0CA1
Model no
AI 8xRTD/TC 2-wire HF
$444.02 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
SIMATIC ET 200SP

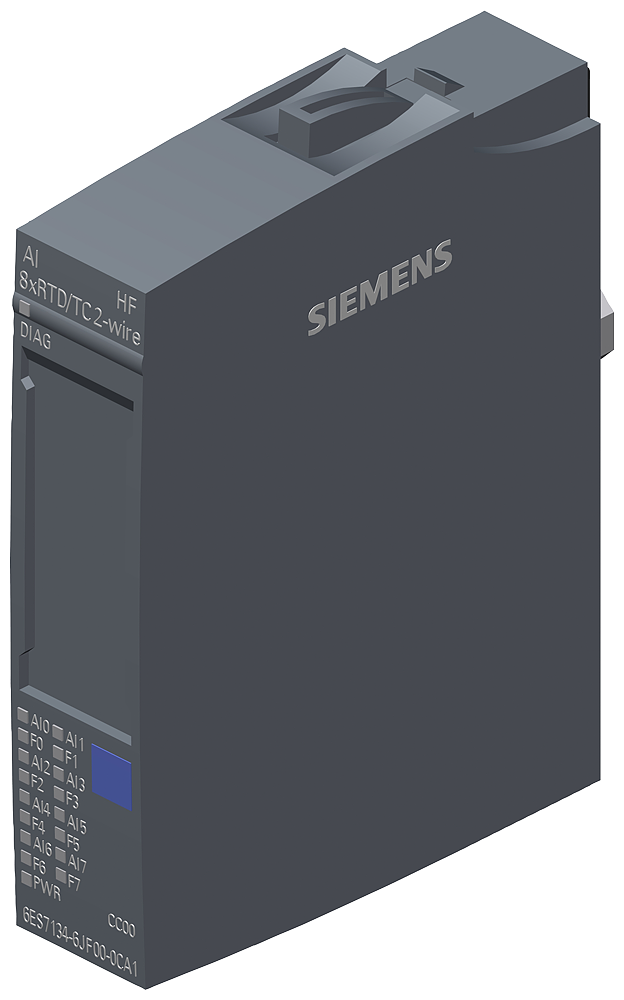

Siemens 6ES7134-6JF00-0CA1 SIMATIC ET 200SP AI 8xRTD/TC 2-Wire HF 16-Bit Analog Input Module

SIMATIC ET 200SP AI 8xRTD/TC 2-wire HF module, 8 channels, 16-bit, +/-0.01% linearity.

Rated operational voltage
24 V AC
Communication
PROFINET/PROFIBUS (via GSD)
EAN
4047623403388
Description

About the AI 8xRTD/TC 2-wire HF

The Siemens 6ES7134-6JF00-0CA1 is a SIMATIC ET 200SP analog input module (AI 8xRTD/TC 2-wire HF) with 8 channels for RTD and thermocouple sensors in 2-wire connection, 16-bit resolution, and +/-0.01% linearity error. It accepts Pt100/Pt1000/Ni100 resistance thermometers and thermocouple types B, C, E, J, K, L, N, R, S, T, and U.

Selection Notes

The 2-wire connection needs fewer terminal points than a 4-wire RTD module but does not compensate for lead resistance -- use it when cable runs are short relative to the sensor's own resistance, and step up to the 4-wire HF variant in the same family for long runs or high-accuracy Pt100 measurement. Four independently parameterizable reference-channel groups let one module mix thermocouple types across channels without rewiring the temperature-compensation source group by group. The 200 m shielded cable length drops to 50 m for thermocouples, a limit worth checking against actual sensor routing before specifying this module on a large distributed station.

Applications

Process temperature monitoring in furnaces, extruders, and tanks; RTD and thermocouple measurement on ET 200SP distributed I/O stations; thermal process validation and calibration checks where multiple sensor types share one rack position.

Specification

Full specification

152 values · Last verified 01 Nov 2026

General information 16

Product type designation AI 8xRTD/TC 2-wire HF
HW functional status FS22 or higher
Firmware version V3.0.0
FW update possible Yes
usable BaseUnits BU type A0, A1
Color code for module-specific color-coded label CC00
Product function: I&M data Yes; I&M0 to I&M3
Product function: Isochronous mode No
Product function: Measuring range scalable Yes
Engineering with: STEP 7 TIA Portal configurable/integrated from version V21 HSP0495 / integrated as of V21.1
Engineering with: STEP 7 configurable/integrated from version V5.7 SP3 HF3 with HSP0348 V2.0 / integrated as of V5.8
Engineering with: PCS 7 configurable/integrated from version V10.1
Engineering with: PROFIBUS from GSD version/GSD revision One GSD file each, Revision 3 and 5 and higher
Engineering with: PROFINET from GSD version/GSD revision GSDML V2.45
Operating mode: Oversampling No
Operating mode: MSI Yes

CiR - Configuration in RUN 2

Reparameterization possible in RUN Yes
Calibration possible in RUN Yes

Supply voltage 4

Rated value (DC) 24 V
permissible range, lower limit (DC) 19.2 V
permissible range, upper limit (DC) 28.8 V
Reverse polarity protection Yes
Show all 152 specifications ↓ Show less ↑130 more values in Identification, Input current, Power loss, Address area, Hardware configuration, Analog inputs, Analog value generation for the inputs, Encoder, Errors/accuracies, Interrupts/diagnostics/status information, Potential separation, Permissible potential difference, Isolation, Standards, approvals, certificates, Security, Ambient conditions, Version Classification, Logistics.

Identification 10

Part number 6ES7134-6JF00-0CA1
Type designation AI 8xRTD/TC 2-wire HF
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4047623403388
ETIM class EC001596
eCl@ss 27242601

Input current 2

Current consumption (rated value) 34 mA
Current consumption, max. 35 mA

Power loss 1

Power loss, typ. 0.75 W

Address area 1

Address space per module: Address space per module, max. 16 byte; + 1 byte for QI information

Hardware configuration 4

Automatic encoding Yes
Mechanical coding element Yes
Type of mechanical coding element Type A
Selection of BaseUnit for connection variants: 2-wire connection BU type A0, A1

Analog inputs 54

Number of analog inputs 8
For voltage measurement 8
permissible input voltage for voltage input (destruction limit), max. 30 V
Constant measurement current for resistance-type transmitter, typ. 2 mA
Cycle time (all channels), min. Sum of the basic conversion times and additional processing times (depending on the parameterization of the active channels)
Technical unit for temperature measurement adjustable Yes; °C/°F/K
Input ranges (rated values), voltages: -1 V to +1 V Yes; 16 bit incl. sign
Input ranges (rated values), voltages: Input resistance (-1 V to +1 V) 1 MΩ
Input ranges (rated values), voltages: -250 mV to +250 mV Yes; 16 bit incl. sign
Input ranges (rated values), voltages: Input resistance (-250 mV to +250 mV) 1 MΩ
Input ranges (rated values), voltages: -50 mV to +50 mV Yes; 16 bit incl. sign
Input ranges (rated values), voltages: Input resistance (-50 mV to +50 mV) 1 MΩ
Input ranges (rated values), voltages: -80 mV to +80 mV Yes; 16 bit incl. sign
Input ranges (rated values), voltages: Input resistance (-80 mV to +80 mV) 1 MΩ
Input ranges (rated values), thermocouples: Type B Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples: Input resistance (Type B) 1 MΩ
Input ranges (rated values), thermocouples: Type C Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples: Type E Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples: Type J Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples: Type K Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples: Type L Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples: Type N Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples: Type R Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples: Type S Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples: Type T Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples: Type U Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples: Type TXK/TXK(L) to GOST Yes; 16 bit incl. sign
Input ranges (rated values), resistance thermometer: Ni 100 Yes; 16 bit incl. sign
Input ranges (rated values), resistance thermometer: Input resistance (Ni 100) 1 MΩ
Input ranges (rated values), resistance thermometer: Ni 1000 Yes; 16 bit incl. sign
Input ranges (rated values), resistance thermometer: LG-Ni 1000 Yes; 16 bit incl. sign
Input ranges (rated values), resistance thermometer: Ni 120 Yes; 16 bit incl. sign
Input ranges (rated values), resistance thermometer: Ni 200 Yes; 16 bit incl. sign
Input ranges (rated values), resistance thermometer: Ni 500 Yes; 16 bit incl. sign
Input ranges (rated values), resistance thermometer: Pt 100 Yes; 16 bit incl. sign
Input ranges (rated values), resistance thermometer: Pt 1000 Yes; 16 bit incl. sign
Input ranges (rated values), resistance thermometer: Pt 200 Yes; 16 bit incl. sign
Input ranges (rated values), resistance thermometer: Pt 500 Yes; 16 bit incl. sign
Input ranges (rated values), resistors: 0 to 150 ohms Yes; 15 bit
Input ranges (rated values), resistors: Input resistance (0 to 150 ohms) 1 MΩ
Input ranges (rated values), resistors: 0 to 300 ohms Yes; 15 bit
Input ranges (rated values), resistors: Input resistance (0 to 300 ohms) 1 MΩ
Input ranges (rated values), resistors: 0 to 600 ohms Yes; 15 bit
Input ranges (rated values), resistors: Input resistance (0 to 600 ohms) 1 MΩ
Input ranges (rated values), resistors: 0 to 3000 ohms Yes; 15 bit
Input ranges (rated values), resistors: 0 to 6000 ohms Yes; 15 bit
Input ranges (rated values), resistors: PTC Yes; 15 bit
Input ranges (rated values), resistors: Input resistance (PTC) 1 MΩ
Thermocouple (TC) Temperature compensation: Parameterizable Yes
Thermocouple (TC) Temperature compensation: Reference channel of the module Yes
Thermocouple (TC) Temperature compensation: internal comparison point Yes; with BaseUnit type A1
Thermocouple (TC) Temperature compensation: Number of reference channel groups 4; Group 0 to 3
Thermocouple (TC) Temperature compensation: fixed reference temperature Yes
Cable length: shielded, max. 200 m; 50 m with thermocouples

Analog value generation for the inputs 12

Measurement principle integrating (Sigma-Delta)
Integration and conversion time/resolution per channel: Resolution with overrange (bit including sign), max. 16 bit
Integration and conversion time/resolution per channel: Integration time, parameterizable Yes
Basic conversion time, including integration time (ms): additional processing time for wire-break check 2 ms; In the ranges resistance thermometers, resistors and thermocouples
Basic conversion time, including integration time (ms): Interference voltage suppression for interference frequency f1 in Hz 16.6 / 50 / 60 Hz
Basic conversion time, including integration time (ms): Conversion time (per channel) 180 / 60 / 50 / (67.5 / 22.5 / 18.75) ms
Smoothing of measured values: Number of smoothing levels 4
Smoothing of measured values: parameterizable Yes
Smoothing of measured values: Step: None Yes
Smoothing of measured values: Step: low Yes; 4x smoothing
Smoothing of measured values: Step: Medium Yes; 8x smoothing
Smoothing of measured values: Step: High Yes; 16x smoothing

Encoder 2

Connection of signal encoders: for voltage measurement Yes
Connection of signal encoders: for resistance measurement with two-wire connection Yes

Errors/accuracies 9

Linearity error (relative to input range), (+/-) 0.01 %; ±0.1 % for resistance thermometers and resistance
Temperature error (relative to input range), (+/-) 0.0009 %/K; ±0.005 % / K at thermocouple
Crosstalk between the inputs, min. -50 dB
Repeat accuracy in steady state at 25 °C (relative to input range), (+/-) 0.05 %
Operational error limit in overall temperature range: Voltage, relative to input range, (+/-) 0.1 %
Operational error limit in overall temperature range: Resistance, relative to input range, (+/-) 0.1 %
Basic error limit (operational limit at 25 °C): Voltage, relative to input range, (+/-) 0.05 %
Basic error limit (operational limit at 25 °C): Resistance, relative to input range, (+/-) 0.05 %
Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency: Series mode interference (peak value of interference < rated value of input range), min. 70 dB; With conversion time 67.5 / 22.5 / 18.75 ms: 40 dB

Interrupts/diagnostics/status information 12

Diagnostics function Yes
Alarms: Diagnostic alarm Yes
Alarms: Limit value alarm Yes; two upper and two lower limit values in each case
Diagnoses: Monitoring the supply voltage Yes
Diagnoses: Wire break Yes; channel by channel
Diagnoses: Short-circuit No
Diagnoses: Group error Yes
Diagnoses: Overflow/Underflow Yes; channel by channel
Diagnostics indication LED: Monitoring of the supply voltage (PWR-LED) Yes; green PWR LED
Diagnostics indication LED: Channel status display Yes; green LED
Diagnostics indication LED: for channel diagnostics Yes; red LED
Diagnostics indication LED: for module diagnostics Yes; green/red DIAG LED

Potential separation 3

Potential separation channels: between the channels No
Potential separation channels: between the channels and backplane bus Yes
Potential separation channels: between the channels and the power supply of the electronics Yes

Permissible potential difference 1

between the inputs (UCM) 10 V DC

Isolation 1

Isolation tested with 707 V DC (type test)

Standards, approvals, certificates 5

Ecological footprint: environmental product declaration Global warming potential Yes
Ecological footprint: global warming potential, (total) [CO2 eq] 9.32 kg
Ecological footprint: global warming potential, (during production) [CO2 eq] 4.97 kg
Ecological footprint: global warming potential, (during operation) [CO2 eq] 4.79 kg
Ecological footprint: global warming potential, (after end of life cycle) [CO2 eq] -0.449 kg

Security 1

signed firmware update Yes; Firmware V3.0.0 or higher

Ambient conditions 2

Ambient temperature during operation: horizontal installation, min. -30 °C
Ambient temperature during operation: vertical installation, min. -30 °C

Version Classification 4

eClass 16 27-24-26-01
ETIM 10 EC001596
IDEA 4 3562
UNSPSC 15 32-15-17-05

Logistics 6

Net weight 0.039 kg
Country of origin DE
Shipping weight 0.539 kg
Ships from Türkiye
Dispatch 18 Nov
Stock In stock

Source: manufacturer data · Last verified: 01 Nov 2026

Documents

Documents for 6ES7134-6JF00-0CA1

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the AI 8xRTD/TC 2-wire HF

Which supply voltage is AI 8xRTD/TC 2-wire HF rated for?

The rated operational voltage of AI 8xRTD/TC 2-wire HF is 24 V AC.

What is the HS code of AI 8xRTD/TC 2-wire HF for customs?

The tariff (HS) code on file for AI 8xRTD/TC 2-wire HF is 85389091.

What is the EAN of AI 8xRTD/TC 2-wire HF?

The EAN (GTIN) of AI 8xRTD/TC 2-wire HF is 4047623403388.

Where does AI 8xRTD/TC 2-wire HF ship from, and how fast?

AI 8xRTD/TC 2-wire HF ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
