Part number
6ES7134-6JD00-0CA1
Model no
AI 4xRTD/TC 2-/3-/4-wire HF
$299.12 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
SIMATIC ET 200SP

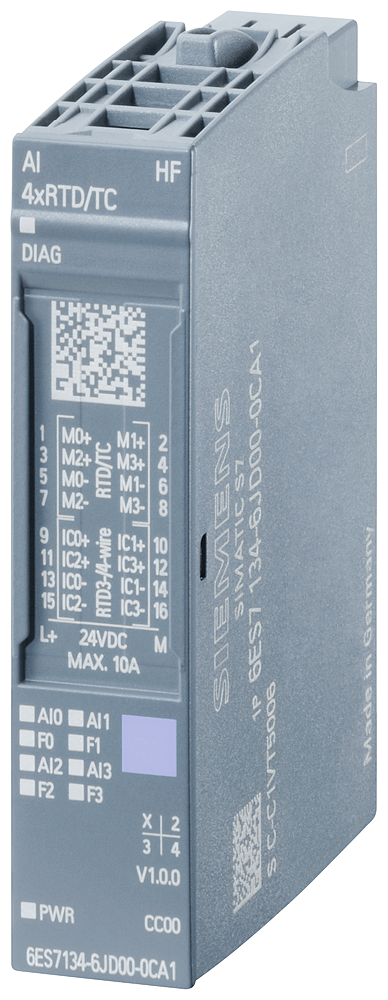

Siemens 6ES7134-6JD00-0CA1 SIMATIC ET 200SP AI 4xRTD/TC 2-/3-/4-Wire HF 16-Bit Analog Input Module

ET 200SP analog input module, AI 4xRTD/TC, 4 channels, 16-bit, 2-/3-/4-wire, HF (calibration in RUN).

Rated operational voltage
24 V AC
Communication
PROFIBUS DP / PROFINET IO (via ET 200SP interface module)
EAN
4025515080817
Description

About the AI 4xRTD/TC 2-/3-/4-wire HF

The Siemens 6ES7134-6JD00-0CA1 is a SIMATIC ET 200SP analog input module (AI 4xRTD/TC 2-/3-/4-wire HF) with 4 universal channels at 16-bit resolution, accepting resistance thermometers, thermocouples, resistors, and mV inputs on the same channel set. It draws 24 V DC and supports calibration and reparameterization while the station is in RUN.

Selection Notes

The HF designation adds calibration-in-RUN and reparameterization-in-RUN over a Basic-Feature AI module — pick this variant when the RTD/TC loop needs recalibrating without stopping the controller, for example periodic sensor-drift correction on a running line. The universal 4-channel input accepts RTD types (Pt100, Pt1000, Ni100, and others), thermocouple types B, C, E, J, K, L, N, R, S, T, U, and mV/resistance ranges on the same channel set, so one module covers mixed sensor types on a skid instead of separate RTD-only and TC-only cards.

Applications

Temperature monitoring on process skids, furnaces, motor bearings, and HVAC loops wired via 2-, 3-, or 4-wire RTDs or thermocouples into an ET 200SP remote I/O station.

Specification

Full specification

154 values · Last verified 01 Nov 2026

General information 16

Product type designation AI 4xRTD/TC 2-/3-/4-wire HF
HW functional status FS22 or higher
Firmware version V3.0.0
FW update possible Yes
usable BaseUnits BU type A0, A1
Color code for module-specific color-coded label CC00
Product function: I&M data Yes; I&M0 to I&M3
Product function: Isochronous mode No
Product function: Measuring range scalable Yes
Engineering with: STEP 7 TIA Portal configurable/integrated from version V21 HSP0495 / integrated as of V21.1
Engineering with: STEP 7 configurable/integrated from version V5.7 SP3 HF3 with HSP0348 V2.0 / integrated as of V5.8
Engineering with: PCS 7 configurable/integrated from version V10.1
Engineering with: PROFIBUS from GSD version/GSD revision One GSD file each, Revision 3 and 5 and higher
Engineering with: PROFINET from GSD version/GSD revision GSDML V2.45
Operating mode: Oversampling No
Operating mode: MSI Yes

CiR - Configuration in RUN 2

Reparameterization possible in RUN Yes
Calibration possible in RUN Yes

Supply voltage 4

Rated value (DC) 24 V
permissible range, lower limit (DC) 19.2 V
permissible range, upper limit (DC) 28.8 V
Reverse polarity protection Yes
Show all 154 specifications ↓ Show less ↑132 more values in Identification, Input current, Power loss, Address area, Hardware configuration, Analog inputs, Analog value generation for the inputs, Encoder, Errors/accuracies, Interrupts/diagnostics/status information, Potential separation, Permissible potential difference, Isolation, Standards, approvals, certificates, Security, Ambient conditions, Version Classification, General Product Approval EMV For use in hazardous locations, Logistics.

Identification 10

Part number 6ES7134-6JD00-0CA1
Type designation AI 4xRTD/TC 2-/3-/4-wire HF
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4025515080817
ETIM class EC001596
eCl@ss 27242601

Input current 2

Current consumption (rated value) 34 mA
Current consumption, max. 35 mA

Power loss 1

Power loss, typ. 0.75 W

Address area 1

Address space per module: Address space per module, max. 8 byte; + 1 byte for QI information

Hardware configuration 5

Automatic encoding Yes
Mechanical coding element Yes
Type of mechanical coding element Type A
Selection of BaseUnit for connection variants: 2-wire connection BU type A0, A1
Selection of BaseUnit for connection variants: 3-wire connection BU type A0, A1

Analog inputs 55

Number of analog inputs 4
For voltage measurement 4
permissible input voltage for voltage input (destruction limit), max. 30 V
Constant measurement current for resistance-type transmitter, typ. 0.7 mA; 1.7 mA for Cu10 sensors
Cycle time (all channels), min. Sum of the basic conversion times and additional processing times (depending on the parameterization of the active channels); for line compensation in case of a three-wire connection, an additional cycle is necessary
Technical unit for temperature measurement adjustable Yes; °C/°F/K
Input ranges (rated values), voltages: -1 V to +1 V Yes; 16 bit incl. sign
Input ranges (rated values), voltages: Input resistance (-1 V to +1 V) 1 MΩ
Input ranges (rated values), voltages: -250 mV to +250 mV Yes; 16 bit incl. sign
Input ranges (rated values), voltages: Input resistance (-250 mV to +250 mV) 1 MΩ
Input ranges (rated values), voltages: -50 mV to +50 mV Yes; 16 bit incl. sign
Input ranges (rated values), voltages: Input resistance (-50 mV to +50 mV) 1 MΩ
Input ranges (rated values), voltages: -80 mV to +80 mV Yes; 16 bit incl. sign
Input ranges (rated values), voltages: Input resistance (-80 mV to +80 mV) 1 MΩ
Input ranges (rated values), thermocouples: Type B Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples: Input resistance (Type B) 1 MΩ
Input ranges (rated values), thermocouples: Type C Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples: Type E Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples: Type J Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples: Type K Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples: Type L Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples: Type N Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples: Type R Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples: Type S Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples: Type T Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples: Type U Yes; 16 bit incl. sign
Input ranges (rated values), thermocouples: Type TXK/TXK(L) to GOST Yes; 16 bit incl. sign
Input ranges (rated values), resistance thermometer: Cu 10 Yes; 16 bit incl. sign
Input ranges (rated values), resistance thermometer: Input resistance (Cu 10) 1 MΩ
Input ranges (rated values), resistance thermometer: Ni 100 Yes; 16 bit incl. sign
Input ranges (rated values), resistance thermometer: Ni 1000 Yes; 16 bit incl. sign
Input ranges (rated values), resistance thermometer: LG-Ni 1000 Yes; 16 bit incl. sign
Input ranges (rated values), resistance thermometer: Ni 120 Yes; 16 bit incl. sign
Input ranges (rated values), resistance thermometer: Ni 200 Yes; 16 bit incl. sign
Input ranges (rated values), resistance thermometer: Ni 500 Yes; 16 bit incl. sign
Input ranges (rated values), resistance thermometer: Pt 100 Yes; 16 bit incl. sign
Input ranges (rated values), resistance thermometer: Pt 1000 Yes; 16 bit incl. sign
Input ranges (rated values), resistance thermometer: Pt 200 Yes; 16 bit incl. sign
Input ranges (rated values), resistance thermometer: Pt 500 Yes; 16 bit incl. sign
Input ranges (rated values), resistors: 0 to 150 ohms Yes; 15 bit
Input ranges (rated values), resistors: Input resistance (0 to 150 ohms) 1 MΩ
Input ranges (rated values), resistors: 0 to 300 ohms Yes; 15 bit
Input ranges (rated values), resistors: Input resistance (0 to 300 ohms) 1 MΩ
Input ranges (rated values), resistors: 0 to 600 ohms Yes; 15 bit
Input ranges (rated values), resistors: Input resistance (0 to 600 ohms) 1 MΩ
Input ranges (rated values), resistors: 0 to 3000 ohms Yes; 15 bit
Input ranges (rated values), resistors: 0 to 6000 ohms Yes; 15 bit
Input ranges (rated values), resistors: PTC Yes; 15 bit
Input ranges (rated values), resistors: Input resistance (PTC) 1 MΩ
Thermocouple (TC) Temperature compensation: Parameterizable Yes
Thermocouple (TC) Temperature compensation: Reference channel of the module Yes
Thermocouple (TC) Temperature compensation: internal comparison point Yes; with BaseUnit type A1
Thermocouple (TC) Temperature compensation: Number of reference channel groups 4; Group 0 to 3
Thermocouple (TC) Temperature compensation: fixed reference temperature Yes
Cable length: shielded, max. 200 m; 50 m with thermocouples

Analog value generation for the inputs 12

Measurement principle integrating (Sigma-Delta)
Integration and conversion time/resolution per channel: Resolution with overrange (bit including sign), max. 16 bit
Integration and conversion time/resolution per channel: Integration time, parameterizable Yes
Basic conversion time, including integration time (ms): additional processing time for wire-break check 2 ms; In the ranges resistance thermometers, resistors and thermocouples
Basic conversion time, including integration time (ms): Interference voltage suppression for interference frequency f1 in Hz 16.6 / 50 / 60 Hz
Basic conversion time, including integration time (ms): Conversion time (per channel) 180 / 60 / 50 / (67.5 / 22.5 / 18.75) ms
Smoothing of measured values: Number of smoothing levels 4
Smoothing of measured values: parameterizable Yes
Smoothing of measured values: Step: None Yes
Smoothing of measured values: Step: low Yes; 4x smoothing
Smoothing of measured values: Step: Medium Yes; 8x smoothing
Smoothing of measured values: Step: High Yes; 16x conversion time

Encoder 2

Connection of signal encoders: for voltage measurement Yes
Connection of signal encoders: for resistance measurement with two-wire connection Yes

Errors/accuracies 9

Linearity error (relative to input range), (+/-) 0.01 %; ±0.1 % for resistance thermometers and resistance
Temperature error (relative to input range), (+/-) 0.0009 %/K; ±0.005 % / K at thermocouple
Crosstalk between the inputs, min. -50 dB
Repeat accuracy in steady state at 25 °C (relative to input range), (+/-) 0.05 %
Operational error limit in overall temperature range: Voltage, relative to input range, (+/-) 0.1 %
Operational error limit in overall temperature range: Resistance, relative to input range, (+/-) 0.1 %
Basic error limit (operational limit at 25 °C): Voltage, relative to input range, (+/-) 0.05 %
Basic error limit (operational limit at 25 °C): Resistance, relative to input range, (+/-) 0.05 %
Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency: Series mode interference (peak value of interference < rated value of input range), min. 70 dB

Interrupts/diagnostics/status information 12

Diagnostics function Yes
Alarms: Diagnostic alarm Yes
Alarms: Limit value alarm Yes; two upper and two lower limit values in each case
Diagnoses: Monitoring the supply voltage Yes
Diagnoses: Wire break Yes; channel by channel
Diagnoses: Short-circuit No
Diagnoses: Group error Yes
Diagnoses: Overflow/Underflow Yes; channel by channel
Diagnostics indication LED: Monitoring of the supply voltage (PWR-LED) Yes; green PWR LED
Diagnostics indication LED: Channel status display Yes; green LED
Diagnostics indication LED: for channel diagnostics Yes; red LED
Diagnostics indication LED: for module diagnostics Yes; green/red DIAG LED

Potential separation 3

Potential separation channels: between the channels No
Potential separation channels: between the channels and backplane bus Yes
Potential separation channels: between the channels and the power supply of the electronics Yes

Permissible potential difference 1

between the inputs (UCM) 10 V DC

Isolation 1

Isolation tested with 707 V DC (type test)

Standards, approvals, certificates 5

Ecological footprint: environmental product declaration Global warming potential Yes
Ecological footprint: global warming potential, (total) [CO2 eq] 9.32 kg
Ecological footprint: global warming potential, (during production) [CO2 eq] 4.97 kg
Ecological footprint: global warming potential, (during operation) [CO2 eq] 4.79 kg
Ecological footprint: global warming potential, (after end of life cycle) [CO2 eq] -0.449 kg

Security 1

signed firmware update Yes; firmware V3.0.0 or higher

Ambient conditions 1

Ambient temperature during operation: horizontal installation, min. -30 °C; < 0 °C as of FS08

Version Classification 4

eClass 16 27-24-26-01
ETIM 10 EC001596
IDEA 4 3562
UNSPSC 15 32-15-17-05

General Product Approval EMV For use in hazardous locations 1

Manufacturer Declara-tion FM CCC-Ex

Logistics 6

Net weight 0.039 kg
Country of origin DE
Shipping weight 0.539 kg
Ships from Türkiye
Dispatch 18 Nov
Stock In stock

Source: manufacturer data · Last verified: 01 Nov 2026

Documents

Documents for 6ES7134-6JD00-0CA1

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the AI 4xRTD/TC 2-/3-/4-wire HF

Which supply voltage is AI 4xRTD/TC 2-/3-/4-wire HF rated for?

The rated operational voltage of AI 4xRTD/TC 2-/3-/4-wire HF is 24 V AC.

What is the HS code of AI 4xRTD/TC 2-/3-/4-wire HF for customs?

The tariff (HS) code on file for AI 4xRTD/TC 2-/3-/4-wire HF is 85389091.

What is the EAN of AI 4xRTD/TC 2-/3-/4-wire HF?

The EAN (GTIN) of AI 4xRTD/TC 2-/3-/4-wire HF is 4025515080817.

Where does AI 4xRTD/TC 2-/3-/4-wire HF ship from, and how fast?

AI 4xRTD/TC 2-/3-/4-wire HF ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.

Guides

Guides for PLC & controllers

All guides for PLC & controllers
Reviews

Customer reviews

Series

Siemens SIMATIC ET 200SP

Brand
Siemens
Series
SIMATIC ET 200SP
$299.12 In stock · 18 Nov
Quote

Get a Quote

AI 4xRTD/TC 2-/3-/4-wire HF

Genuine parts

Genuine, factory-sealed parts

Siemens · 6ES7134-6JD00-0CA1

Every part on Stoklink is new, unused and made by the manufacturer named on the page.

Condition
New and unused, in the manufacturer's factory-sealed packaging.
Sourced from
Siemens and its authorised distributors.
Warranty
The manufacturer's warranty applies.
If a part is not genuine
We refund the full amount.

Added to cart Could not add to cart

View cart
