Part number
6ES7134-6GF00-0AA1
Model no
AI 8xI 2-/4-wire BA
$310.50 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
SIMATIC ET 200SP

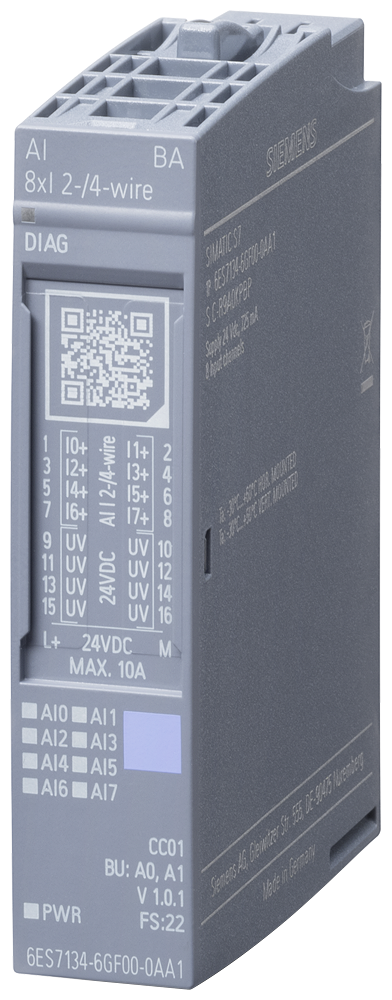

Siemens 6ES7134-6GF00-0AA1 SIMATIC ET 200SP AI 8xI 2-/4-Wire Basic 16-Bit Analog Input Module

ET 200SP analog input module, AI 8xI, 8 current channels, 2-/4-wire, 16-bit, Basic Feature.

Rated operational voltage
24 V AC
EAN
4047623405511
Description

About the AI 8xI 2-/4-wire BA

The Siemens 6ES7134-6GF00-0AA1 is a SIMATIC ET 200SP analog input module (AI 8xI 2-/4-wire Basic) with 8 single-ended current-input channels at 16-bit resolution, supporting 0-20 mA, 4-20 mA, and -20/+20 mA ranges. It draws 24 V DC and provides an integrated 24 V, 0.7 A encoder supply for connected 2-wire transmitters.

Selection Notes

The Basic-Feature designation means fixed channel diagnostics without calibration-in-RUN — pick the HF variant instead where the loop needs periodic recalibration without stopping the controller. The built-in 0.7 A / 24 V encoder supply lets each channel power its own 2-wire loop transmitter directly from the module, removing the need for a separate 24 V distribution terminal on the BaseUnit.

Applications

Reading 4-20 mA process transmitters (pressure, level, flow) into an ET 200SP station where transmitter loop power is sourced from the module itself.

Specification

Full specification

119 values · Last verified 01 Nov 2026

General information 15

Product type designation AI 8xI 2-/4-wire BA
HW functional status FS23 or higher
Firmware version V2.0.0
FW update possible Yes
usable BaseUnits BU type A0, A1
Color code for module-specific color-coded label CC01
Product function: I&M data Yes; I&M0 to I&M3
Product function: Isochronous mode No
Product function: Measuring range scalable No
Engineering with: STEP 7 TIA Portal configurable/integrated from version TIA Portal V21
Engineering with: STEP 7 configurable/integrated from version V5.7 SP3
Engineering with: PROFIBUS from GSD version/GSD revision One GSD file each, Revision 3 and 5 and higher
Engineering with: PROFINET from GSD version/GSD revision GSDML V2.45
Operating mode: Oversampling No
Operating mode: MSI No

CiR - Configuration in RUN 2

Reparameterization possible in RUN No
Calibration possible in RUN No

Supply voltage 4

Rated value (DC) 24 V
permissible range, lower limit (DC) 19.2 V
permissible range, upper limit (DC) 28.8 V
Reverse polarity protection Yes
Show all 119 specifications ↓ Show less ↑98 more values in Identification, Input current, Encoder supply, Power loss, Address area, Hardware configuration, Analog inputs, Analog value generation for the inputs, Encoder, Errors/accuracies, Interrupts/diagnostics/status information, Potential separation, Isolation, Standards, approvals, certificates, Security, Ambient conditions, Dimensions, Weights, EClass 16 27-24-26-01, General Product Approval EMV For use in hazardous locations, Logistics.

Identification 10

Part number 6ES7134-6GF00-0AA1
Type designation AI 8xI 2-/4-wire BA
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4047623405511
ETIM class EC001596
eCl@ss 27242601

Input current 2

Current consumption (rated value) 25 mA
Current consumption, max. 725 mA

Encoder supply 3

24 V encoder supply: 24 V Yes
24 V encoder supply: Short-circuit protection Yes
24 V encoder supply: Output current, max. 0.7 A; total current of all encoders/channels

Power loss 1

Power loss, typ. 0.7 W

Address area 1

Address space per module: Address space per module, max. 16 byte

Hardware configuration 6

Automatic encoding Yes
Mechanical coding element Yes
Type of mechanical coding element Type A
Selection of BaseUnit for connection variants: 1-wire connection BU type A0, A1
Selection of BaseUnit for connection variants: 2-wire connection BU type A0, A1
Selection of BaseUnit for connection variants: 4-wire connection BU type A0, A1 + potential distributor module

Analog inputs 11

Number of analog inputs 8; Single-ended
For current measurement 8
permissible input current for current input (destruction limit), max. 50 mA
Cycle time (all channels), min. 1 ms; per channel
Input ranges (rated values), currents: 0 to 20 mA Yes
Input ranges (rated values), currents: Input resistance (0 to 20 mA) 100 Ω; 15 bit
Input ranges (rated values), currents: -20 mA to +20 mA Yes
Input ranges (rated values), currents: Input resistance (-20 mA to +20 mA) 100 Ω; 16 bit incl. sign
Input ranges (rated values), currents: 4 mA to 20 mA Yes
Input ranges (rated values), currents: Input resistance (4 mA to 20 mA) 100 Ω; 15 bit
Cable length: shielded, max. 200 m

Analog value generation for the inputs 10

Integration and conversion time/resolution per channel: Resolution with overrange (bit including sign), max. 16 bit
Integration and conversion time/resolution per channel: Integration time, parameterizable Yes
Integration and conversion time/resolution per channel: Interference voltage suppression for interference frequency f1 in Hz 16.67 / 50 / 60 / 4 800 (16.67 / 50 / 60)
Integration and conversion time/resolution per channel: Conversion time (per channel) 180 / 60 / 50 / 0.625 (67.5 / 22.5 / 18.75) ms
Smoothing of measured values: Number of smoothing levels 4
Smoothing of measured values: parameterizable Yes
Smoothing of measured values: Step: None Yes
Smoothing of measured values: Step: low Yes; 4x smoothing
Smoothing of measured values: Step: Medium Yes; 8x smoothing
Smoothing of measured values: Step: High Yes; 16x smoothing

Encoder 4

Connection of signal encoders: for voltage measurement No
Connection of signal encoders: for current measurement as 2-wire transducer Yes
Connection of signal encoders: Burden of 2-wire transmitter, max. 650 Ω
Connection of signal encoders: for current measurement as 4-wire transducer Yes

Errors/accuracies 7

Linearity error (relative to input range), (+/-) 0.01 %
Temperature error (relative to input range), (+/-) 0.005 %/K
Crosstalk between the inputs, min. 50 dB
Repeat accuracy in steady state at 25 °C (relative to input range), (+/-) 0.05 %
Operational error limit in overall temperature range: Current, relative to input range, (+/-) 0.5 %
Basic error limit (operational limit at 25 °C): Current, relative to input range, (+/-) 0.3 %
Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency: Series mode interference (peak value of interference < rated value of input range), min. 70 dB; With conversion time 67.5 / 22.5 / 18.75 ms: 40 dB

Interrupts/diagnostics/status information 12

Diagnostics function Yes
Alarms: Diagnostic alarm Yes
Alarms: Limit value alarm No
Diagnoses: Monitoring the supply voltage Yes
Diagnoses: Wire break Yes; at 4 to 20 mA
Diagnoses: Short-circuit Yes; Sensor supply to M; module by module
Diagnoses: Group error Yes
Diagnoses: Overflow/Underflow Yes; module-wise
Diagnostics indication LED: Monitoring of the supply voltage (PWR-LED) Yes; green LED
Diagnostics indication LED: Channel status display Yes; green LED
Diagnostics indication LED: for channel diagnostics No
Diagnostics indication LED: for module diagnostics Yes; green/red DIAG LED

Potential separation 3

Potential separation channels: between the channels No
Potential separation channels: between the channels and backplane bus Yes
Potential separation channels: between the channels and the power supply of the electronics No

Isolation 1

Isolation tested with 707 V DC (type test)

Standards, approvals, certificates 5

Ecological footprint: environmental product declaration Global warming potential Yes
Ecological footprint: global warming potential, (total) [CO2 eq] 9.32 kg
Ecological footprint: global warming potential, (during production) [CO2 eq] 4.97 kg
Ecological footprint: global warming potential, (during operation) [CO2 eq] 4.79 kg
Ecological footprint: global warming potential, (after end of life cycle) [CO2 eq] -0.449 kg

Security 3

signed firmware update Yes; firmware V2.0.0 or higher
securely removing data Yes; firmware V2.0.0 or higher
data integrity Yes; firmware V2.0.0 or higher

Ambient conditions 4

Ambient temperature during operation: horizontal installation, min. -30 °C; < 0 °C as of FS04
Ambient temperature during operation: vertical installation, min. -30 °C; < 0 °C as of FS04
Altitude during operation relating to sea level: Installation altitude above sea level, max. 5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual
Absolute humidity: dew point, min. -60 °C; suitable for dry room applications

Dimensions 3

Width 15 mm
Height 73 mm
Depth 58 mm

Weights 1

Weight, approx. 31 g

EClass 16 27-24-26-01 4

eClass 14 27-24-26-01
ETIM 10 EC001596
IDEA 4 3562
UNSPSC 15 32-15-17-05

General Product Approval EMV For use in hazardous locations 1

Manufacturer Declara-tion FM CCC-Ex

Logistics 6

Net weight 0.036 kg
Country of origin DE
Shipping weight 0.536 kg
Ships from Türkiye
Dispatch 18 Nov
Stock In stock

Source: manufacturer data · Last verified: 01 Nov 2026

Documents

Documents for 6ES7134-6GF00-0AA1

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the AI 8xI 2-/4-wire BA

Which supply voltage is AI 8xI 2-/4-wire BA rated for?

The rated operational voltage of AI 8xI 2-/4-wire BA is 24 V AC.

What is the HS code of AI 8xI 2-/4-wire BA for customs?

The tariff (HS) code on file for AI 8xI 2-/4-wire BA is 85389091.

What is the EAN of AI 8xI 2-/4-wire BA?

The EAN (GTIN) of AI 8xI 2-/4-wire BA is 4047623405511.

Where does AI 8xI 2-/4-wire BA ship from, and how fast?

AI 8xI 2-/4-wire BA ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
