Part number
6ES7134-6GB00-0BA1
Model no
AI 2xI 2-/4-wire ST
$196.65 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
SIMATIC ET 200SP

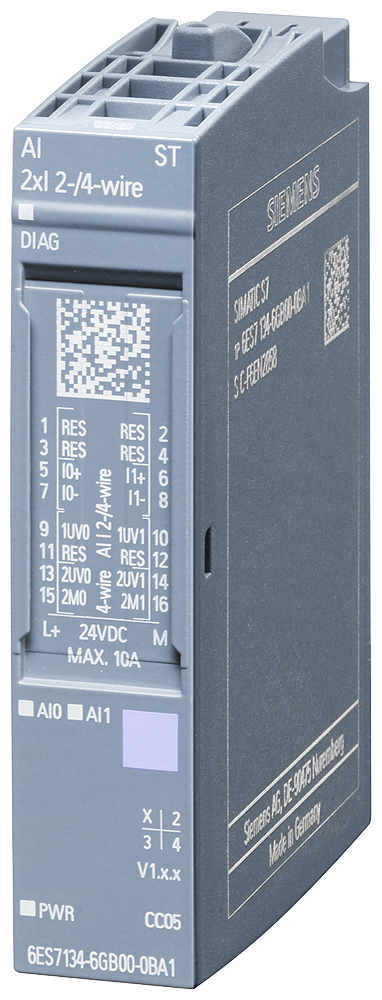

Siemens 6ES7134-6GB00-0BA1 SIMATIC ET 200SP AI 2xI 2-/4-Wire ST Remote I/O Module

Siemens ET 200SP AI 2xI 2-/4-wire ST analog input module, 2 current inputs, 16-bit, BU type A0/A1, CC05.

Rated operational voltage
24 V DC
EAN
4047623406655
Description

About the AI 2xI 2-/4-wire ST

The Siemens 6ES7134-6GB00-0BA1 is a SIMATIC ET 200SP analog input module with 2 current inputs wireable as 2-wire or 4-wire transducers, resolving up to 16 bit including sign over 0-20 mA, 4-20 mA, or -20/+20 mA ranges, fitted to BU type A0 or A1 with color code CC05.

Selection Notes

The 2-/4-wire designation means this module accepts either passive 2-wire loop-powered transmitters, drawing their supply from the module's 50 mA encoder output, or active 4-wire transmitters with their own supply, drawing from the separate 200 mA encoder output. Both wiring types land on the same 2 channels, so the choice is made per channel at commissioning rather than at ordering. The Sigma-Delta converter trades conversion time for noise rejection: 500 µs per channel with the filter off for fast loops, up to 180 ms at the 16.6 Hz setting for line-frequency-noisy 4-20 mA runs in electrically noisy cabinets. At ±0.3% basic error and ±0.01% linearity error, the module holds enough accuracy for standard process-transmitter feedback (pressure, level, flow) without needing a higher-accuracy analog card.

Applications

Reads 4-20 mA and 0-20 mA process transmitters on ET 200SP stations - pressure, level, flow, and temperature transmitters - in both 2-wire loop-powered and 4-wire actively supplied configurations.

Specification

Full specification

119 values · Last verified 01 Nov 2026

General information 15

Product type designation AI 2xI 2-/4-wire ST
HW functional status FS22 or higher
Firmware version V2.0.0
FW update possible Yes
usable BaseUnits BU type A0, A1
Color code for module-specific color-coded label CC05
Product function: I&M data Yes; I&M0 to I&M3
Product function: Isochronous mode No
Product function: Measuring range scalable No
Engineering with: STEP 7 TIA Portal configurable/integrated from version V21 HSP0492 / integrated as of V21.1
Engineering with: STEP 7 configurable/integrated from version V5.7 SP3 HF3 with HSP0348 V2.0 / integrated as of V5.8
Engineering with: PROFIBUS from GSD version/GSD revision One GSD file each, Revision 3 and 5 and higher
Engineering with: PROFINET from GSD version/GSD revision GSDML V2.45
Operating mode: Oversampling No
Operating mode: MSI No

CiR - Configuration in RUN 2

Reparameterization possible in RUN Yes
Calibration possible in RUN No

Supply voltage 4

Rated value (DC) 24 V
permissible range, lower limit (DC) 19.2 V
permissible range, upper limit (DC) 28.8 V
Reverse polarity protection Yes
Show all 119 specifications ↓ Show less ↑98 more values in Identification, Input current, Encoder supply, Power loss, Address area, Hardware configuration, Analog inputs, Analog value generation for the inputs, Encoder, Errors/accuracies, Interrupts/diagnostics/status information, Potential separation, Permissible potential difference, Isolation, Standards, approvals, certificates, Security, Ambient conditions, Dimensions, Version Classification, Logistics.

Identification 10

Part number 6ES7134-6GB00-0BA1
Type designation AI 2xI 2-/4-wire ST
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4047623406655
ETIM class EC001596
eCl@ss 27242601

Input current 2

Current consumption (rated value) 37.5 mA
Current consumption, max. 245 mA

Encoder supply 6

24 V encoder supply: 24 V Yes
24 V encoder supply: Short-circuit protection Yes
24 V encoder supply: Output current, max. 50 mA; Total current for both channels (two-wire)
Additional 24 V encoder supply: 24 V Yes
Additional 24 V encoder supply: Short-circuit protection Yes; module-wise
Additional 24 V encoder supply: Output current, max. 200 mA; Total current for both channels (four-wire)

Power loss 1

Power loss, typ. 0.9 W

Address area 1

Address space per module: Address space per module, max. 4 byte; + 1 byte for QI information

Hardware configuration 6

Automatic encoding Yes
Mechanical coding element Yes
Type of mechanical coding element Type A
Selection of BaseUnit for connection variants: 1-wire connection BU type A0, A1
Selection of BaseUnit for connection variants: 2-wire connection BU type A0, A1
Selection of BaseUnit for connection variants: 4-wire connection BU type A0, A1

Analog inputs 11

Number of analog inputs 2
For current measurement 2
permissible input current for current input (destruction limit), max. 50 mA
Cycle time (all channels), min. 500 µs
Input ranges (rated values), currents: 0 to 20 mA Yes; 15 bit
Input ranges (rated values), currents: Input resistance (0 to 20 mA) 130 Ω; 90 ohms with two wires
Input ranges (rated values), currents: -20 mA to +20 mA Yes; 16 bit incl. sign
Input ranges (rated values), currents: Input resistance (-20 mA to +20 mA) 130 Ω
Input ranges (rated values), currents: 4 mA to 20 mA Yes; 15 bit
Input ranges (rated values), currents: Input resistance (4 mA to 20 mA) 130 Ω; 90 ohms with two wires
Cable length: shielded, max. 1 000 m

Analog value generation for the inputs 11

Measurement principle Sigma Delta
Integration and conversion time/resolution per channel: Resolution with overrange (bit including sign), max. 16 bit
Integration and conversion time/resolution per channel: Integration time, parameterizable Yes
Integration and conversion time/resolution per channel: Interference voltage suppression for interference frequency f1 in Hz 16.6 / 50 / 60 Hz / off
Integration and conversion time/resolution per channel: Conversion time (per channel) 50 ms @ 60 Hz, 60 ms @ 50 Hz, 180 ms @ 16.6 Hz, 500 µs without filter
Smoothing of measured values: Number of smoothing levels 4
Smoothing of measured values: parameterizable Yes
Smoothing of measured values: Step: None Yes; 1x conversion time
Smoothing of measured values: Step: low Yes; 4x conversion time
Smoothing of measured values: Step: Medium Yes; 8x conversion time
Smoothing of measured values: Step: High Yes; 16x conversion time

Encoder 3

Connection of signal encoders: for current measurement as 2-wire transducer Yes
Connection of signal encoders: Burden of 2-wire transmitter, max. 650 Ω
Connection of signal encoders: for current measurement as 4-wire transducer Yes

Errors/accuracies 7

Linearity error (relative to input range), (+/-) 0.01 %
Temperature error (relative to input range), (+/-) 0.005 %/K
Crosstalk between the inputs, min. -50 dB
Repeat accuracy in steady state at 25 °C (relative to input range), (+/-) 0.05 %
Operational error limit in overall temperature range: Current, relative to input range, (+/-) 0.5 %
Basic error limit (operational limit at 25 °C): Current, relative to input range, (+/-) 0.3 %
Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency: Series mode interference (peak value of interference < rated value of input range), min. 70 dB

Interrupts/diagnostics/status information 12

Diagnostics function Yes
Alarms: Diagnostic alarm Yes
Alarms: Limit value alarm No
Diagnoses: Monitoring the supply voltage Yes
Diagnoses: Wire break Yes; at 4 to 20 mA
Diagnoses: Short-circuit Yes; Short-circuit of the encoder supply
Diagnoses: Group error Yes
Diagnoses: Overflow/Underflow Yes
Diagnostics indication LED: Monitoring of the supply voltage (PWR-LED) Yes; green PWR LED
Diagnostics indication LED: Channel status display Yes; green LED
Diagnostics indication LED: for channel diagnostics No
Diagnostics indication LED: for module diagnostics Yes; green/red DIAG LED

Potential separation 3

Potential separation channels: between the channels No
Potential separation channels: between the channels and backplane bus Yes
Potential separation channels: between the channels and the power supply of the electronics Yes

Permissible potential difference 1

between the inputs (UCM) 10 Vpp

Isolation 1

Isolation tested with 707 V DC (type test)

Standards, approvals, certificates 5

Ecological footprint: environmental product declaration Global warming potential Yes
Ecological footprint: global warming potential, (total) [CO2 eq] 9.32 kg
Ecological footprint: global warming potential, (during production) [CO2 eq] 4.97 kg
Ecological footprint: global warming potential, (during operation) [CO2 eq] 4.79 kg
Ecological footprint: global warming potential, (after end of life cycle) [CO2 eq] -0.449 kg

Security 1

signed firmware update Yes; firmware V2.0.0 or higher

Ambient conditions 4

Ambient temperature during operation: horizontal installation, min. -30 °C; < 0 °C as of FS04
Ambient temperature during operation: vertical installation, min. -30 °C; < 0 °C as of FS04
Altitude during operation relating to sea level: Installation altitude above sea level, max. 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual
Absolute humidity: dew point, min. -60 °C; suitable for dry room applications

Dimensions 3

Width 15 mm
Height 73 mm
Depth 58 mm

Version Classification 4

eClass 16 27-24-26-01
ETIM 10 EC001596
IDEA 4 3562
UNSPSC 15 32-15-17-05

Logistics 6

Net weight 0.039 kg
Country of origin DE
Shipping weight 0.539 kg
Ships from Türkiye
Dispatch 18 Nov
Stock In stock

Source: manufacturer data · Last verified: 01 Nov 2026
