Siemens 6ES7132-6HC50-0BU0 SIMATIC ET 200SP RQ CO 3x120VDC-230VAC/5A ST Remote I/O Module

% $-91.99

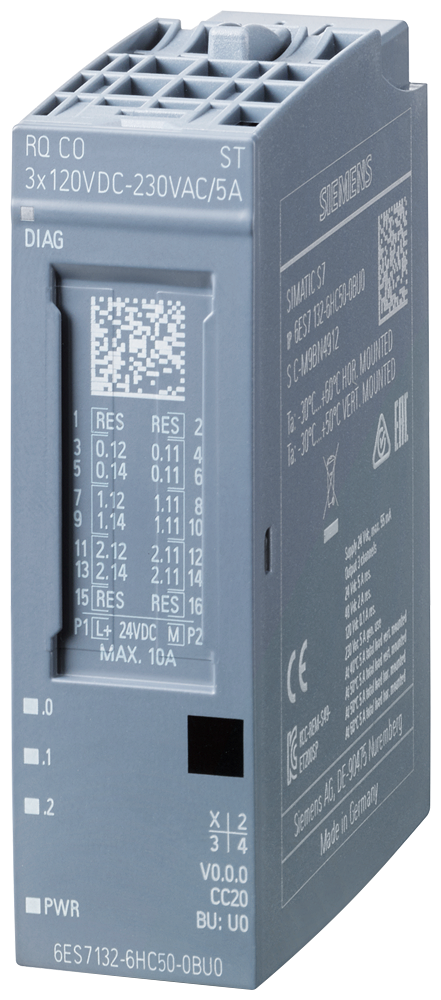

Siemens 6ES7132-6HC50-0BU0 SIMATIC ET 200SP relay module - 3x CO 5A
Siemens 6ES7132-6HC50-0BU0 SIMATIC ET 200SP relay module - 3x CO 5A

Siemens 6ES7132-6HC50-0BU0 SIMATIC ET 200SP RQ CO 3x120VDC-230VAC/5A ST Remote I/O Module

Brand: Siemens
Reference No: 6ES7132-6HC50-0BU0
Catalog No: 6ES7132-6HC50-0BU0
Series: SIMATIC ET 200SP
Tariff Code (HS): 85389091
Rated Current: 5
Rated Voltage: 24-230
Communication: PROFINET, PROFIBUS (via GSD)
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$91.99

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6ES7132-6HC50-0BU0 is a SIMATIC ET 200SP relay module with 3 isolated changeover contacts rated 5 A resistive at 24-120 V DC or 24-230 V AC. It runs on a 24 V DC supply, mounts on BU type U0, and reports supply-voltage diagnostics with a rated 1,000,000 operating cycles per relay.

Technical Specifications

Catalog No 6ES7132-6HC50-0BU0
SKU 6ES7132-6HC50-0BU0
Brand Siemens
Series SIMATIC ET 200SP
Product type designation RQ 3x120VDC-230VAC/5A CO ST
Digital outputs 3, relay, changeover, isolated contacts
Rated switching voltage (DC) 24-120 V DC
Rated switching voltage (AC) 24-230 V AC
Switching capacity, resistive load, max. 5 A
Switching capacity, inductive load, max. 2 A
Thermal continuous current, max. 5 A
Max power switched 1385 VA / 150 W
Number of operating cycles, max. 1,000,000
Supply voltage (DC) 24 V, 19.2-28.8 V range
Reverse polarity protection Yes
Switching frequency, resistive load, max. 2 Hz
External relay protection Miniature fuse, max. 6.3 A tripping current, 1500 A breaking capacity
Power loss, typ. 1.6 W
BaseUnit BU type U0
Address space, outputs 1 byte
Diagnostics Diagnostic alarm, supply voltage monitoring
Ambient temperature, horizontal -30 to 60 degC
Ambient temperature, vertical -30 to 50 degC
Dimensions (W x H x D) 20 x 73 x 58 mm
Weight, approx. 40 g

Selection Notes

The 3 isolated changeover contacts let each channel switch a different voltage domain on the same module, which is the reason to pick this relay variant over a transistor DQ module when the load circuit needs galvanic isolation or a mix of AC and DC loads on one BaseUnit slot. Rate the external miniature fuse to the module's 6.3 A quick-response spec, since the relay contacts themselves carry no internal short-circuit protection beyond that fuse.

Technical Details

Short Description
SIMATIC ET 200SP relay module, 3x isolated CO contacts, 5A, 24-120VDC/24-230VAC, BU type U0.
Rated Current (Ampere)
5
Rated Voltage (VAC)
24-230
Mounting Type
BU type U0 (ET 200SP BaseUnit)
Catalog No
6ES7132-6HC50-0BU0
Delivery Date (Days)
10-15 days
Model Number
6ES7132-6HC50-0BU0
Tariff Code
85389091
