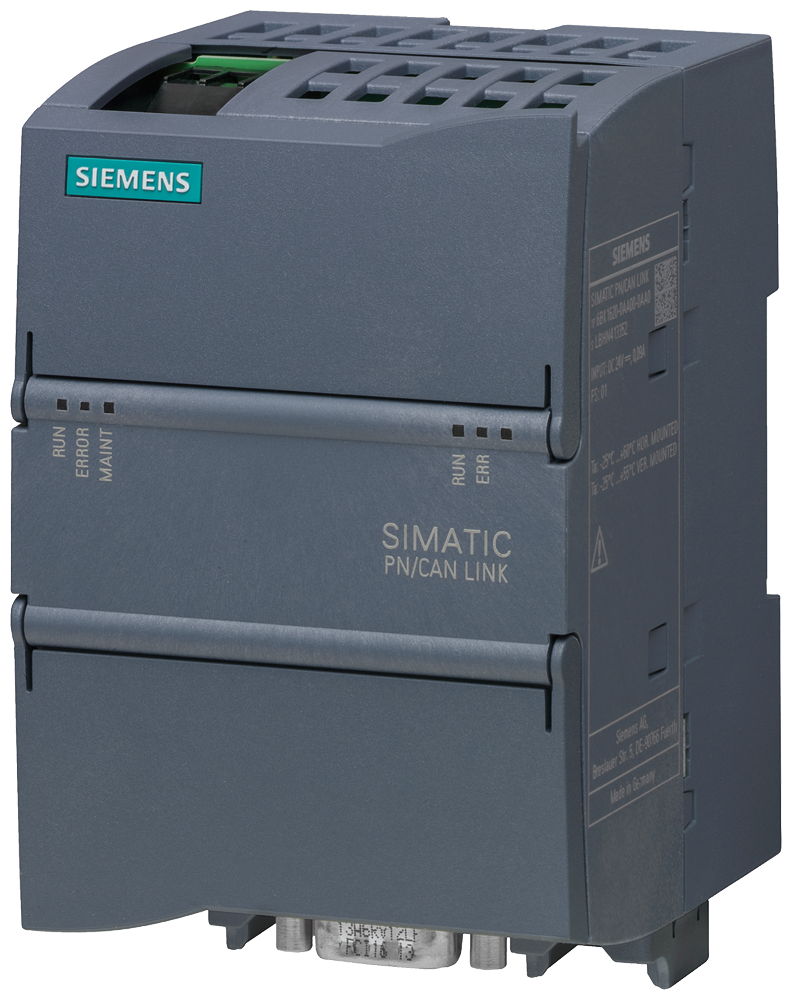

SIMATIC MICRO-DRIVESiemens 6BK1620-0AA00-0AA0 PN/CAN LINK PROFINET-to-CANopen Gateway IP20 PLC Communication Module
Siemens 6BK1620-0AA00-0AA0 SIMATIC PN/CAN LINK gateway, PROFINET to CAN 2.0A/B / CANopen CiA 301/302, 24V DC, IP20, DIN rail.
Description
About the PN/CAN Link
About the PN/CAN Link
The Siemens 6BK1620-0AA00-0AA0 SIMATIC PN/CAN LINK is a PROFINET-to-CAN gateway that bridges a PROFINET IO controller to CAN 2.0A/B or CANopen CiA 301/302 networks. It acts as CANopen Manager or Slave, runs on 24 V DC, mounts on DIN rail, and provides a 2-port PROFINET switch plus isolated 9-pin sub-D CAN interface for up to 126 devices at up to 1,000 kbit/s.
Certifications & Standards
- CE
- UL
- cULus
- RCM
- KC
- EAC
- PNO
- RoHS
Selection Notes
Choose this module when a PROFINET IO controller needs to reach a CAN 2.0A/B or CANopen segment, since it acts as CANopen Manager or Slave rather than a passive protocol converter. Node/life-guarding, heartbeat, and SYNC services are supported, so it fits CANopen networks that rely on those monitoring mechanisms. The 2-port integrated PROFINET switch means it can sit in a line topology without an extra switch, and I&M data (I&M0 to I&M3) supports asset tracking through TIA Portal from STEP 7 V14 upward.
Applications
Used to connect legacy CAN or CANopen field devices, such as sensors, drives, or third-party controllers, into a PROFINET-based SIMATIC automation architecture without replacing the CAN-side equipment. Suited to machine retrofits where a PROFINET backbone is added but CANopen actuators or I/O stay in place, and to panel builds needing CANopen Manager functionality from a PROFINET PLC.
Specification
Full specification
General information 8
| Product type designation | PN/CAN Link |
|---|---|
| Firmware version | V2.4.0 |
| FW update possible | Yes |
| Vendor identification (VendorID) | ID 03 00 00 53h acc. to CiA |
| Product function: I&M data | Yes; I&M0 to I&M3 |
| Product function: Isochronous mode | No |
| Engineering with: STEP 7 TIA Portal configurable/integrated from version | STEP 7 V14 or higher |
| Engineering with: PROFINET from GSD version/GSD revision | GSDML V2.4.x |
Installation type/mounting 5
| Mounting | DIN rail, wall mounting, portrait mounting |
|---|---|
| Mounting position | any |
| Recommended mounting position | Horizontal |
| Rail mounting | Yes |
| Control cabinet installation | Yes |
Supply voltage 8
| Type of supply voltage | DC |
|---|---|
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Overvoltage protection | Yes |
| Short-circuit protection | Yes |
| Mains buffering: Mains/voltage failure stored energy time | 10 ms |
Show all 109 specifications ↓ Show less ↑88 more values in Identification, Input current, Power loss, Interfaces, 1. Interface, 2. Interface, Interrupts/diagnostics/status information, Potential separation, Degree and class of protection, Standards, approvals, certificates, Ambient conditions, Dimensions, Weights, Logistics.
Identification 10
| Part number | 6BK1620-0AA00-0AA0 |
|---|---|
| Type designation | PN/CAN Link |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4025515739609 |
| ETIM class | EC001423 |
| eCl@ss | 27242208 |
Input current 2
| Current consumption (rated value) | 0.09 A |
|---|---|
| Current consumption, max. | 0.11 A |
Power loss 1
| Power loss, typ. | 2.2 W |
|---|
Interfaces 6
| Supports protocol for PROFINET IO: automatic detection of transmission rate | No |
|---|---|
| Supports protocol for PROFINET IO: Transmission rate, max. | 100 Mbit/s |
| Supports protocol for PROFINET IO: Number of RJ45 ports | 2 |
| Supports protocol for PROFINET IO: Number of FC (FastConnect) connections | 2 |
| PROFINET functions: Assignment of the IP address, supported | Yes |
| PROFINET functions: Assignment of the device name, supported | Yes |
1. Interface 14
| Interface type | CAN according to CiA 303-1 |
|---|---|
| Isolated | Yes; 500 V AC or 707 V DC |
| Interface types: Number of ports | 1 |
| Interface types: Design of the connection | 9-pin sub D socket |
| CAN: CAN operating modes | CAN Standard CAN 2.0A/B; CANopen Manager / Slave acc. to CiA |
| CAN: Specification acc. to CiA | CiA 301 & CiA 302 |
| CAN: Transmission rate, min. | 50 kbit/s |
| CAN: Transmission rate, max. | 1 000 kbit/s |
| CAN: max. number of devices | 126 |
| CAN: Number of SDOs in parallel | 16; Parallel |
| CAN: Number of PDOs Services | 512; Send / receive |
| CAN: Node/life-guarding | Yes |
| CAN: Heartbeat | Yes |
| CAN: SYNC | Yes |
2. Interface 7
| Interface type | PROFINET |
|---|---|
| Isolated | Yes; 1 500 V AC or 2 250 V DC |
| Interface types: RJ 45 (Ethernet) | Yes |
| Interface types: Number of ports | 2 |
| Interface types: integrated switch | Yes |
| Protocols: PROFINET IO Device | Yes |
| Protocols: Open IE communication | Yes |
Interrupts/diagnostics/status information 8
| Status indicator | Yes |
|---|---|
| Alarms | Yes |
| Diagnostics function | Yes |
| Diagnostics indication LED: RUN LED | Yes |
| Diagnostics indication LED: ERROR LED | Yes |
| Diagnostics indication LED: MAINT LED | Yes |
| Diagnostics indication LED: LINK LED | Yes |
| Diagnostics indication LED: RX/TX LED | Yes |
Potential separation 1
| Potential separation exists | Yes |
|---|
Degree and class of protection 1
| IP degree of protection | IP20 |
|---|
Standards, approvals, certificates 19
| CE mark | Yes |
|---|---|
| UL approval | Yes |
| cULus | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| EAC (formerly Gost-R) | Yes |
| PNO certificate | Yes |
| RoHS conformity | Yes |
| Ecological footprint: environmental product declaration Global warming potential | Yes |
| Ecological footprint: global warming potential, (total) [CO2 eq] | 50.8 kg |
| Ecological footprint: global warming potential, (during production) [CO2 eq] | 14.4 kg |
| Ecological footprint: global warming potential, (during operation) [CO2 eq] | 36.8 kg |
| Ecological footprint: global warming potential, (after end of life cycle) [CO2 eq] | -0.52 kg |
| Marine approval: Germanischer Lloyd (GL) | Yes |
| Marine approval: American Bureau of Shipping (ABS) | Yes |
| Marine approval: Bureau Veritas (BV) | Yes |
| Marine approval: Det Norske Veritas (DNV) | Yes |
| Marine approval: Lloyds Register of Shipping (LRS) | Yes |
| Marine approval: Nippon Kaiji Kyokai (Class NK) | Yes |
Ambient conditions 9
| Ambient temperature during operation: horizontal installation, min. | -25 °C |
|---|---|
| Ambient temperature during operation: vertical installation, min. | -25 °C |
| Ambient temperature during operation: ceiling installation, min. | -25 °C |
| Ambient temperature during operation: ceiling installation, max. | 45 °C |
| Ambient temperature during operation: floor installation, min. | -25 °C |
| Ambient temperature during operation: floor installation, max. | 45 °C |
| Ambient temperature during storage/transportation: min. | -40 °C |
| Ambient temperature during storage/transportation: max. | 85 °C |
| Relative humidity: Operation, max. | 95 % |
Dimensions 3
| Width | 70 mm |
|---|---|
| Height | 112 mm |
| Depth | 75 mm |
Weights 1
| Weight, approx. | 212 g |
|---|
Logistics 6
| Net weight | 0.264 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 0.764 kg |
| Ships from | Türkiye |
| Dispatch | 13 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6BK1620-0AA00-0AA0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE mark
- UL approval
- cULus
- RCM (formerly C-TICK)
- KC approval
- EAC (formerly Gost-R)
- PNO certificate
- RoHS conformity
- Germanischer Lloyd (GL)
- American Bureau of Shipping (ABS)
Quick answers
Questions about the PN/CAN Link
What is the rated current of PN/CAN Link?
The rated current of PN/CAN Link is 0.09 A.
Which supply voltage is PN/CAN Link rated for?
The rated operational voltage of PN/CAN Link is 24 V AC.
What is the HS code of PN/CAN Link for customs?
The tariff (HS) code on file for PN/CAN Link is 85176200.
What is the EAN of PN/CAN Link?
The EAN (GTIN) of PN/CAN Link is 4025515739609.
Where does PN/CAN Link ship from, and how fast?
PN/CAN Link ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
