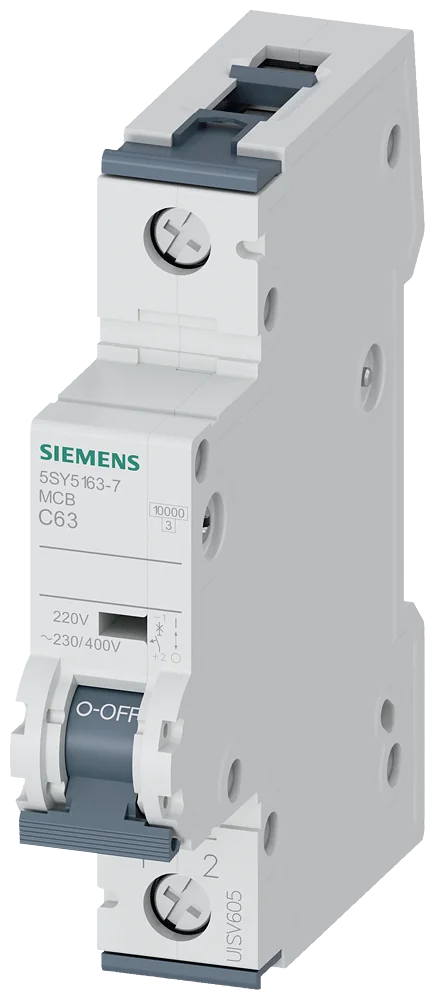

Siemens 5SY5163-7 5SY5 1P 63A 10kA 400V C-Curve Miniature Circuit Breaker

The Siemens 5SY5163-7 is a single-pole miniature circuit breaker (MCB) from the SENTRON 5SY5 series, rated 63 A with a C tripping characteristic and 10 kA breaking capacity (IEC 60947-2 / EN 60898-1) at 400 V AC. Designed for overload and short-circuit protection of cables and equipment in final distribution circuits, it mounts on a standard 35 mm DIN rail and occupies 1 modular width unit(s).

Technical Specifications

Certifications & Standards

• IEC 60947-2
• EN 60898-1

Applications & Use Cases

The 5SY5163-7 provides C-characteristic protection suited for mixed loads with moderate inrush such as motors, transformers and control circuits. At 63 A and 10 kA breaking capacity, it is dimensioned for final subcircuit protection in commercial, residential and light-industrial distribution boards conforming to IEC 60947-2.

DIN-rail mounting and 1-module width allow high-density installation in standard consumer units and panelboards. Halogen-free construction and sealable toggle support fire-safety and lock-out requirements in institutional and infrastructure applications.
