Siemens 5SV8704-0KK Residual Current Device

Siemens 5SV8704-0KK 5SV8 250A Residual Current Device

Name: Siemens 5SV8704-0KK 5SV8 250A Residual Current Device
Brand: Siemens
SKU: 5SV8704-0KK
Price: 244.07 USD
Availability: InStock
Rating: 5.0 (10 reviews)

Brand: Siemens

Reference No: 5SV8704-0KK

Catalog No: 5SV8704-0KK

Series: 5SV8

Rated Current: 250A

Stock: 19

Delivery time: 1-2 business day(s)

Shipping Origin: Türkiye EXW

$244.07

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

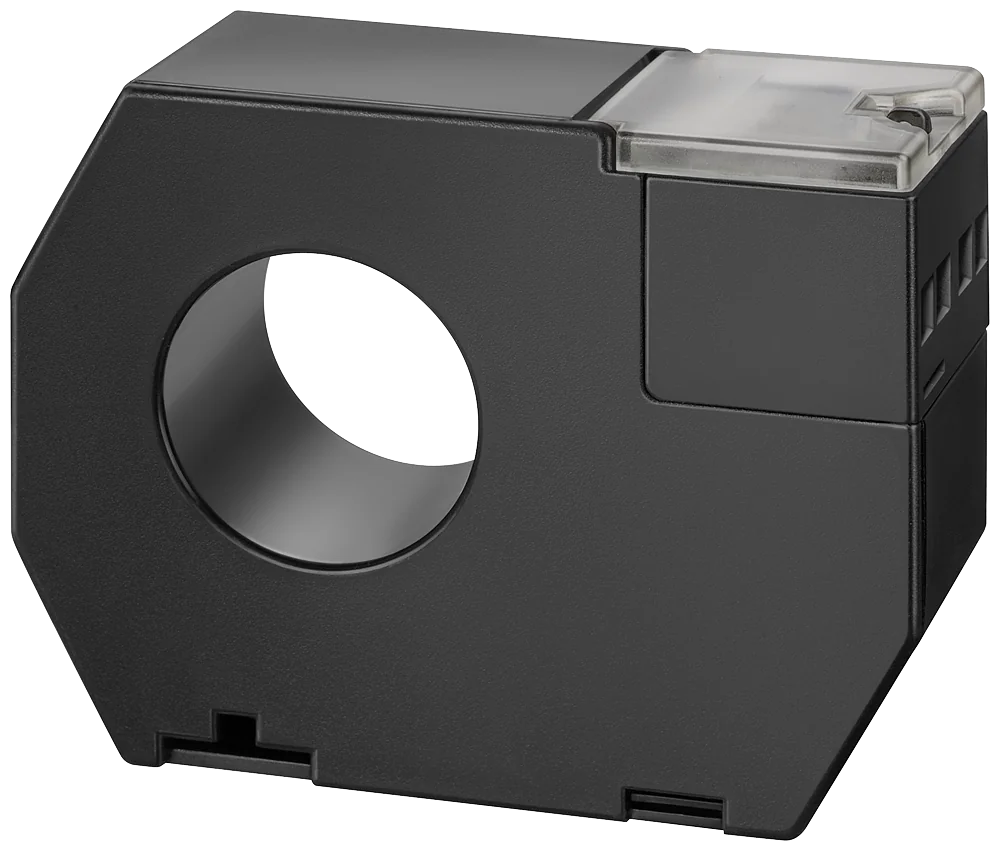

The Siemens 5SV8704-0KK is a summation current transformer from the SENTRON/SIRIUS 5SV8 series. Summation current transformer 105 mm. Supplied by Stoklink for industrial and commercial low-voltage applications.

Technical Specifications

SKU	5SV8704-0KK
Brand	Siemens
Series	5SV8
Product Type	Residual Current Device
Product brand name	SENTRON
Product designation	summation current transformer
Design of the product	type A
Residual current (Idn) minimum	100 mA
Internal diameter of summation current transformer	105 mm
Wire length maximum	10 m
Protection class IP at connection all terminals	IP20
Type of voltage of the operating voltage for actuation	AC
Surge voltage resistance rated value	4 kV
Maximum	720 V
Minimum	50 Hz
Operational current rated value	250 A
At AC at 50 Hz rated value maximum	720 V
At AC at 60 Hz rated value maximum	720 V
Suitability for use	for AC power system
Product function error memory	No
Type of connectable conductor cross-sections	0.13 mm² 2.1 mm²
Type of electrical connection	screw terminal
Weight	0.512 kg
Country of Origin	ES

Applications & Use Cases

The Siemens 5SV8704-0KK is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 5SV8 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Technical Details

Rated Current (Ampere)

250A

Catalog No

5SV8704-0KK

Delivery Date (Days)

1-2 days

Model Number

5SV8
