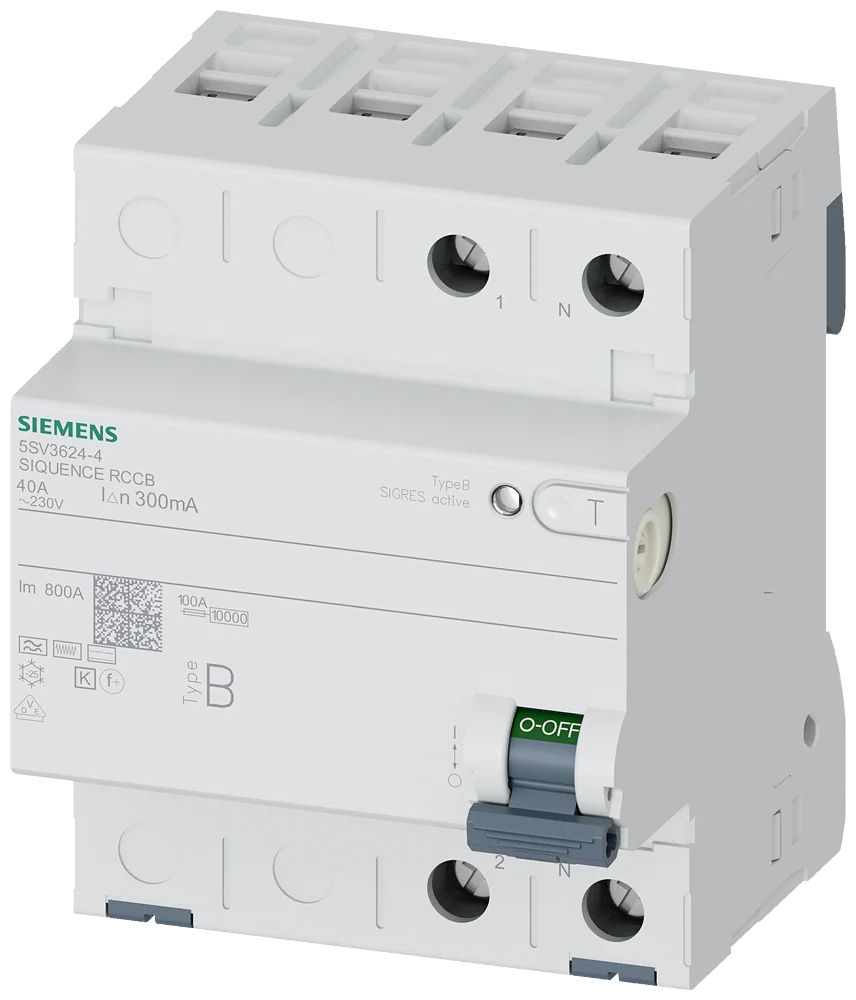

Siemens 5SV3624-4 Residual Current Device

Siemens 5SV3624-4 5SV3 40A 2P 230V Residual Current Device

Name: Siemens 5SV3624-4 5SV3 40A 2P 230V Residual Current Device
Brand: Siemens
SKU: 5SV3624-4
Price: 536.68 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Siemens

Reference No: 5SV3624-4

Catalog No: 5SV3624-4

Series: 5SV3

Rated Current: 40A

Rated Voltage: 230V

Poles: 2

Stock: 0

Delivery time: 1-2 business day(s)

Shipping Origin: Türkiye EXW

$536.68

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Siemens 5SV3624-4 is a residual current operated circuit breaker from the SENTRON/SIRIUS 5SV3 series. Residual current operated circuit breaker, 2-pole, type B, short-time-delayed, In: 40 A, 300 mA, Un AC: 230 V SIGRES: harsh environmental conditions extended test interval. Supplied by Stoklink for industrial and commercial low-voltage applications.

Technical Specifications

SKU	5SV3624-4
Brand	Siemens
Series	5SV3
Product Type	Residual Current Device
Product brand name	SENTRON
Product designation	Residual current operated circuit breaker
Design of the product	Short-time delayed
Product type designation	5SV3
Product version	SIGRES (harsh ambient conditions)
Number of poles	2
Size of installation devices according to DIN 43880	1
Mechanical service life (operating cycles) typical	10 000
Short-circuit current rating	10 kA
Switching function short-term delayed	Yes
Degree of pollution	2
Insulation voltage (Ui) rated value	2 000 V
Tripping fault current rated value	300 mA
Let-through current permissible	7 500 A
I2t value permissible	70 000 A²·s
Supply voltage for testing equipment minimum	70 V
Value range of the supply voltage frequency	50/60 Hz
Value range of the operating frequency	50/60 Hz
Weight	0.377 kg
Country of Origin	DE

Applications & Use Cases

The Siemens 5SV3624-4 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 5SV3 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Technical Details

Rated Current (Ampere)

40A

Rated Voltage (VAC)

230V

Catalog No

5SV3624-4

Number of Poles

Delivery Date (Days)

1-2 days

Model Number

5SV3
