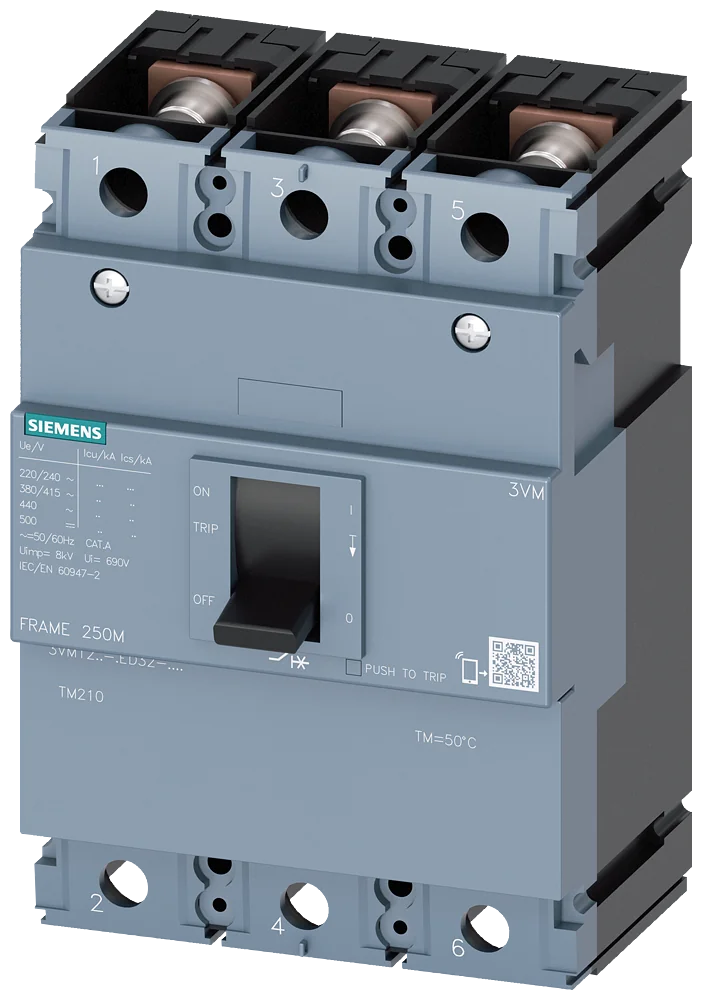

Siemens 3VM1220-4ED32-0AA0 3VM1 3P 200A 36kA 415V TM210 LI Molded Case Circuit Breaker

The Siemens 3VM1220-4ED32-0AA0 is a three-pole molded case circuit breaker (MCCB) from the SENTRON 3VM1 series, rated 200 A with a breaking capacity of 36 kA (Icu) at 415 V AC (utilisation class S). It is equipped with the TM210 LI thermal-magnetic trip unit providing overload (L) and instantaneous short-circuit (I) protection. Rated for distribution and motor-feeder protection in low-voltage switchgear up to 500 V AC.

Technical Specifications

Certifications & Standards

• IEC 60947-2

Applications & Use Cases

At 200 A rated current and 36 kA breaking capacity, the 3VM1220-4ED32-0AA0 is dimensioned for feeder, sub-distribution and motor-circuit protection in low-voltage main and sub-distribution boards. The TM210 LI trip unit provides fixed overload and short-circuit protection matched to the rated current.

The IEC Frame enclosure supports fixed mounting in form-separated switchgear (form 2–4) and accepts a range of Siemens 3VA accessories — auxiliary and alarm switches, shunt and undervoltage releases, rotary and motor operators — for adaptation to the specific installation and control scheme.
