- Part number
- 3SE7141-1EG10
- Model no
- 3SE7
Description
About the 3SE7
About the 3SE7

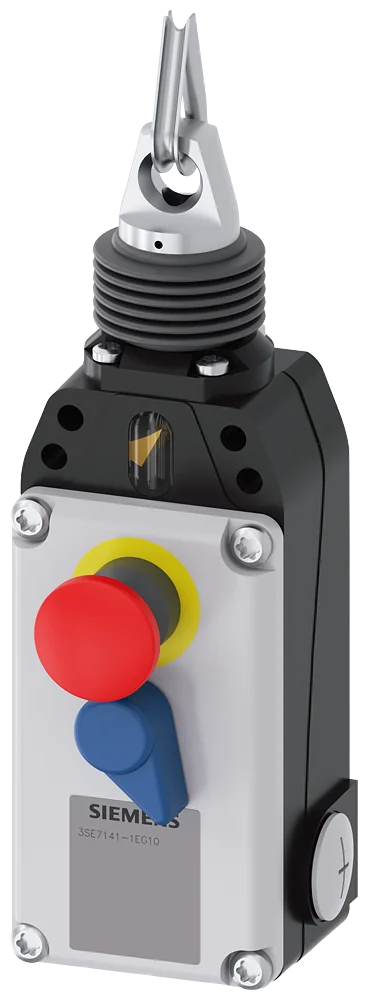

The Siemens 3SE7141-1EG10 is a safety switch from the SENTRON/SIRIUS 3SE7 series. Cable-operated switch with emergency stop Metal housing IP67, 3 xM20 x1.5; Slow-action contacts 1 NO+3 NC Latching according to EN ISO 13850, with rotate-to-unlatch mechanism, for wire lengths up to 75 m. Supplied by Stoklink for industrial and commercial low-voltage applications.
Applications & Use Cases
The Siemens 3SE7141-1EG10 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3SE7 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.
Specification
Full specification
General 3
| product brand name | SIRIUS |
|---|---|
| product designation | cable-operated switch |
| product type designation | 3SE7 |
General technical data 12
| product function EMERGENCY STOP function | Yes |
|---|---|
| product component light source | No |
| insulation voltage rated value | 250 V |
| degree of pollution | class 3 |
| surge voltage resistance rated value | 2.5 kV |
| protection class IP | IP67 |
| mechanical service life (operating cycles) typical | 100 000 |
| thermal current | 2 A |
| reference code according to IEC 81346-2 | S |
| continuous current of the DIAZED fuse link gG | 2 A |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| SVHC substance name | Lead CAS-No. 7439-92-1 |
Ambient conditions 6
| ambient temperature during operation | -25 ... +70 °C |
|---|---|
| number of NC contacts for auxiliary contacts | 3 |
| number of NO contacts for auxiliary contacts | 1 |
| operational current at AC-15: at 240 V rated value | 6 A |
| operational current at DC-13: at 24 V rated value | 2 A |
| operational current at DC-13: at 250 V rated value | 0.25 A |
Show all 59 specifications ↓ Show less ↑38 more values in Identification, Enclosure, Display, Installation/ mounting/ dimensions, Connections/ Terminals, Safety related data, Logistics.
Identification 10
| Part number | 3SE7141-1EG10 |
|---|---|
| Type designation | 3SE7 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4011209653580 |
| ETIM class | EC002033 |
| eCl@ss | 27270607 |
Enclosure 6
| material of the enclosure | metal |
|---|---|
| material of the enclosure cover | Plastic |
| product component EMERGENCY STOP device | Yes |
| color: of the enclosure | black |
| color: of the enclosure top part | grey |
| coating of the enclosure | painted |
Display 5
| product function status display | Yes |
|---|---|
| circuit principle | Slow-action function |
| material of the contact | Silver |
| number of switching contacts safety-related | 3 |
| cable entry type | 3x M20 x 1,5 |
Installation/ mounting/ dimensions 4
| fastening method | screw fixing |
|---|---|
| height | 201 mm |
| width | 67 mm |
| depth | 83 mm |
Connections/ Terminals 4
| type of electrical connection | screw terminal |
|---|---|
| type of connectable conductor cross-sections: solid | 2x (0.5 ... 2.5 mm2) |
| type of connectable conductor cross-sections: finely stranded with core end processing | 2x (0.5 ... 2.5 mm2) |
| type of connectable conductor cross-sections: for AWG cables solid | 2x (20 ... 14) |
Logistics 7
| Net weight | 0.81 kg |
|---|---|
| Package dimensions | 271 × 118 × 103 mm |
| Country of origin | DE |
| Shipping weight | 1.31 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 31 Oct 2026
Documents
Documents for 3SE7141-1EG10
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the 3SE7
What is the rated current of 3SE7?
The rated current of 3SE7 is 6 A.
What is the EAN of 3SE7?
The EAN (GTIN) of 3SE7 is 4011209653580.
Where does 3SE7 ship from, and how fast?
3SE7 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
