Part number
3SE7120-1BF00
Model no
3SE7
$161.68 In stock · 36 Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
3SE7

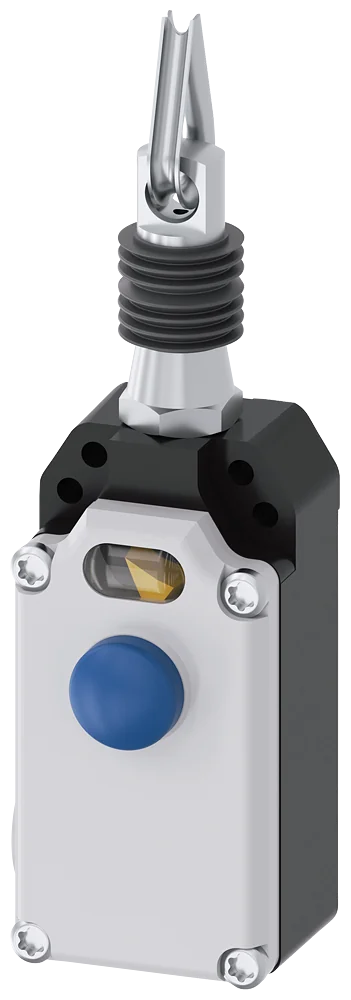

Siemens 3SE7120-1BF00 3SE7 6A Safety Switch

Rated current
6 A
EAN
4011209567856
Description

About the 3SE7

The Siemens 3SE7120-1BF00 is a safety switch from the SENTRON/SIRIUS 3SE7 series. Cable-operated switch Metal enclosure, 2x M20 x1.5; 2NC, with latching EN ISO 13850 and pushbutton release for wire lengths up to 5 m. Supplied by Stoklink for industrial and commercial low-voltage applications.

Applications & Use Cases

The Siemens 3SE7120-1BF00 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3SE7 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Specification

Full specification

59 values · Last verified 31 Oct 2026

General 3

product brand name SIRIUS
product designation cable-operated switch
product type designation 3SE7

General technical data 11

product function EMERGENCY STOP function Yes
product component light source No
insulation voltage rated value 400 V
degree of pollution class 3
surge voltage resistance rated value 6 kV
protection class IP IP65
mechanical service life (operating cycles) typical 100 000
thermal current 6 A
reference code according to IEC 81346-2 S
continuous current of the DIAZED fuse link gG 6 A
Substance Prohibitance (day/month/year) 07/01/2006

Ambient conditions 7

ambient temperature during operation -25 ... +70 °C
number of NC contacts for auxiliary contacts 2
number of NO contacts for auxiliary contacts 0
operational current at AC-15: at 240 V rated value 6 A
operational current at AC-15: at 400 V rated value 6 A
operational current at DC-13: at 24 V rated value 3 A
operational current at DC-13: at 250 V rated value 0.27 A
Show all 59 specifications ↓ Show less ↑38 more values in Identification, Enclosure, Display, Installation/ mounting/ dimensions, Connections/ Terminals, Safety related data, Logistics.

Identification 10

Part number 3SE7120-1BF00
Type designation 3SE7
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4011209567856
ETIM class EC002033
eCl@ss 27270607

Enclosure 6

material of the enclosure metal
material of the enclosure cover Plastic
product component EMERGENCY STOP device No
color: of the enclosure black
color: of the enclosure top part grey
coating of the enclosure painted

Display 5

product function status display Yes
circuit principle Jump function
material of the contact Silver
number of switching contacts safety-related 2
cable entry type 2x M20 x 1,5

Installation/ mounting/ dimensions 4

fastening method screw fixing
height 171 mm
width 52 mm
depth 54 mm

Connections/ Terminals 4

type of electrical connection screw terminal
type of connectable conductor cross-sections: solid 2x (0.5 ... 2.5 mm2)
type of connectable conductor cross-sections: finely stranded with core end processing 2x (0.5 ... 2.5 mm2)
type of connectable conductor cross-sections: for AWG cables solid 2x (20 ... 14)

Logistics 7

Net weight 0.399 kg
Package dimensions 185 × 80 × 70 mm
Country of origin DE
Shipping weight 0.899 kg
Ships from Türkiye
Dispatch 18 Nov
Stock In stock

Source: manufacturer data · Last verified: 31 Oct 2026

Documents

Documents for 3SE7120-1BF00

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the 3SE7

What is the rated current of 3SE7?

The rated current of 3SE7 is 6 A.

What is the EAN of 3SE7?

The EAN (GTIN) of 3SE7 is 4011209567856.

Where does 3SE7 ship from, and how fast?

3SE7 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
