Part number
3SE6614-4CA01
Model no
3SE66
$90.97 In stock · 36 Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
3SE6

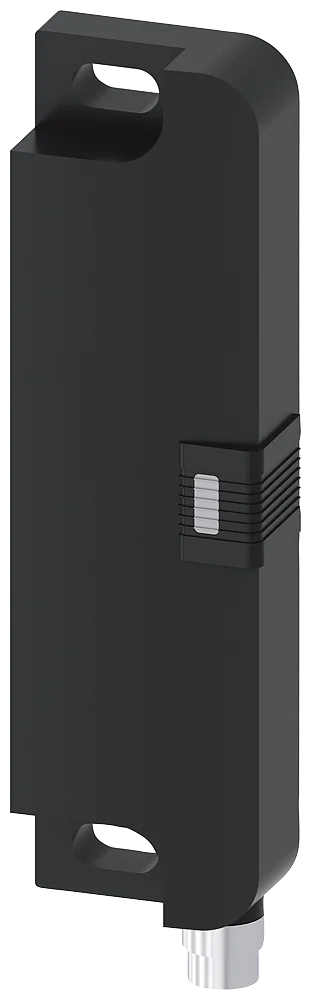

Siemens 3SE6614-4CA01 3SE6 Safety Switch

product brand name
SIRIUS
product designation
Magnetically operated switch
design of the product
Rectangular sensor unit
product type designation
3SE66
suitability for use safety-related circuits
Yes
EAN
4047621002613
Description

About the 3SE66

The Siemens 3SE6614-4CA01 is a safety switch from the SENTRON/SIRIUS 3SE6 series. Magnetically operated switch contact block 25 x 88 mm, for left-hinged door, contacts: safety contacts 2 NC, with M8 plug, 4-pole, with combi connection screw/latching connection, with LED, the matching solenoid 3SE6714-2CA or offset by 90° 3SE6724-2CA. Supplied by Stoklink for industrial and commercial low-voltage applications.

Applications & Use Cases

The Siemens 3SE6614-4CA01 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3SE6 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Specification

Full specification

67 values · Last verified 31 Oct 2026

General 5

product brand name SIRIUS
product designation Magnetically operated switch
design of the product Rectangular sensor unit
product type designation 3SE66
suitability for use safety-related circuits Yes

General technical data 14

product function: positive opening No
product function: control function for downstream devices No
product function: cross-circuit/short-circuit recognition Yes
type of voltage of the operating voltage DC
protection class IP IP67
shock resistance according to IEC 60068-2-27 Sinusoidal half-wave 30 g / 11 ms
vibration resistance according to IEC 60068-2-6 10 ... 55 Hz: 1 mm
reference code according to IEC 81346-2 S
Substance Prohibitance (day/month/year) 07/01/2006
SVHC substance name Lead CAS-No. 7439-92-1
height of the sensor 25 mm
length of the sensor 13 mm
width of the sensor 88 mm
material of the active sensor area Plastic, glass-fiber reinforced thermoplastic

Ambient conditions 1

ambient temperature during operation -25 ... +70 °C
Show all 67 specifications ↓ Show less ↑47 more values in Identification, Control circuit/ Control, Enclosure, Actuator, Display, Contact, Installation/ mounting/ dimensions, Connections/ Terminals, Inputs/ Outputs, Safety related data, ISO 13849, IEC 61508, Logistics.

Identification 10

Part number 3SE6614-4CA01
Type designation 3SE66
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4047621002613
ETIM class EC000030
eCl@ss 27270601

Control circuit/ Control 8

type of voltage DC
operating voltage rated value 24 V
operational current rated value 10 mA
operating power rated value 0.24 W
number of NC contacts for auxiliary contacts 2
number of NC contacts safety-related 2
number of NO contacts for auxiliary contacts 0
number of NO contacts safety-related 0

Enclosure 2

material of the enclosure Plastic, glass-fiber reinforced thermoplastic
opening direction of the door left

Actuator 1

design of the actuating element magnet

Display 1

evaluation unit required yes

Contact 6

switching frequency 5 Hz
assured operating distance OFF 17 mm
assured operating distance ON 7 mm
design of the switching function NC contact
number of switching contacts for signaling function 0
safety-related 0

Installation/ mounting/ dimensions 1

fastening method screw fixing

Connections/ Terminals 1

type of electrical connection M8 connector, 4-pole

Inputs/ Outputs 4

number of semiconductor outputs: for signaling function 0
number of semiconductor outputs: safety-related 0
as NC contact: safety-related instantaneous contact 2
as NC contact: as NO contact safety-related instantaneous contact 0

ISO 13849 1

performance level (PL) according to EN ISO 13849-1 e

IEC 61508 2

Safety Integrity Level (SIL) according to IEC 61508 3
T1 value for proof test interval or service life according to IEC 61508 20 a

Logistics 7

Net weight 0.04 kg
Package dimensions 95 × 25 × 10 mm
Country of origin DE
Shipping weight 0.54 kg
Ships from Türkiye
Dispatch 18 Nov
Stock In stock

Source: manufacturer data · Last verified: 31 Oct 2026

Documents

Documents for 3SE6614-4CA01

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the 3SE66

What is the EAN of 3SE66?

The EAN (GTIN) of 3SE66 is 4047621002613.

Where does 3SE66 ship from, and how fast?

3SE66 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
