Part number
3SE6415-1BB01
Model no
3SE64
$764.04 On request Dispatch — · From TürkiyeGet a Quote
3SE6

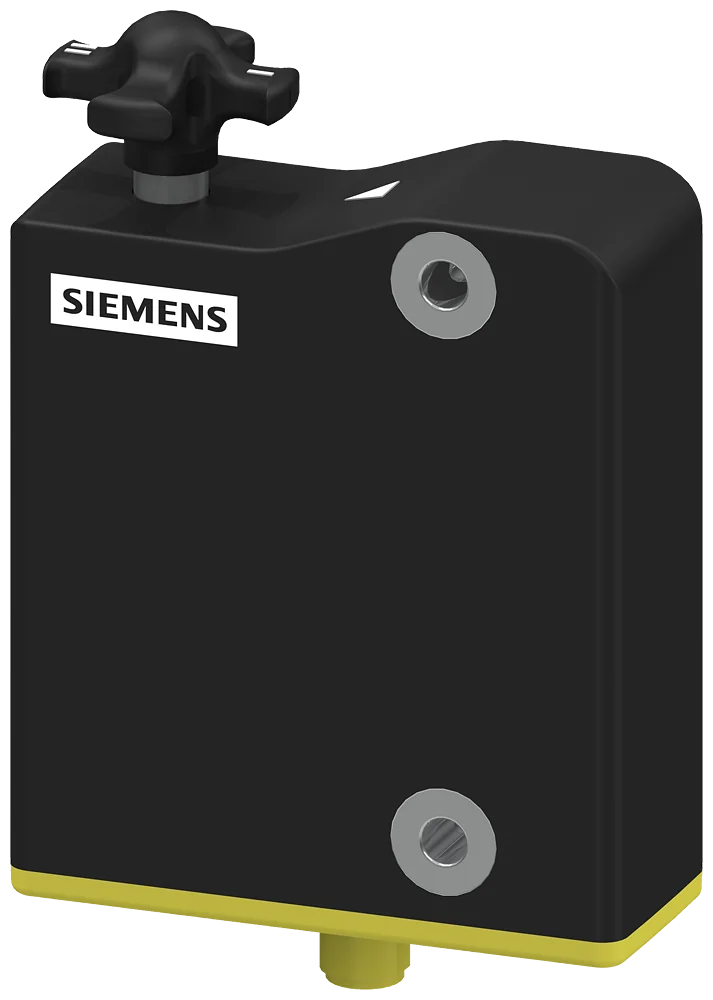

Siemens 3SE6415-1BB01 3SE6 24V Safety Switch

Rated operational voltage
24 V AC
EAN
4047621095394
Description

About the 3SE64

The Siemens 3SE6415-1BB01 is a safety switch from the SENTRON/SIRIUS 3SE6 series. RFID safety switch with tumbler, plastic, quiescent current principle, tumbler monitoring, 24 V DC, with auxiliary release, IP69, locking force 1150 N, family-encoded, diagnostics output, M12 plug 8-pole, 3 LEDs for display of the operating states, 3 directions of actuation, latching force with turnstile adjustable: 25 N or 50 N, hygienic design, actuator 3SE6410-1AC01 to be ordered separately. Supplied by Stoklink for industrial and commercial low-voltage applications.

Certifications & Standards

  • EN 60529

Applications & Use Cases

The Siemens 3SE6415-1BB01 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3SE6 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Specification

Full specification

134 values · Last verified 31 Oct 2026

General 5

product brand name SIRIUS
product category Non-contact safety switch
product designation RFID safety switch with tumbler
design of the product rectangular sensor unit
product type designation 3SE64

Product Function 4

product function: positive opening No
product function: control function for downstream devices No
product function: cross-circuit/short-circuit recognition Yes
suitability for use safety-related circuits Yes

General technical data 19

product feature family-coded, catch 25N/50N
product feature suitable for series connection Yes
locking force 1 500 N
according to EN ISO 14119 1 150 N
design of the RFID coding universal coding
insulation voltage rated value 32 V
degree of pollution according to EN 60664-1 3
overvoltage category Class III
surge voltage resistance rated value 0.8 kV
no-load current rated value 100 mA
protection class IP IP66 in accordance with EN 60529 IP67 in accordance with EN 60529 IP69 in accordance with EN 60529
shock resistance: according to IEC 60068-2-27 30 g / 11 ms
vibration resistance according to IEC 60068-2-6 10 ... 150 Hz, amplitude 0.35 mm
switching frequency 0.5 Hz
mechanical service life (operating cycles) typical 1 000 000
note when used as door stop: ≥ 50,000 switching cycles (door masses ≤ 5 kg and actuating speed ≤ 0.5 m/s)
relative ON period [%] of magnet coil 100 %
reference code according to IEC 81346-2 B
Substance Prohibitance (day/month/year) 07/01/2006
Show all 134 specifications ↓ Show less ↑106 more values in Identification, Sensor, Ambient conditions, Control circuit/ Control, Main circuit, Enclosure, Display, Contact, Installation/ mounting/ dimensions, Connections/ Terminals, Supply voltage, Inputs/ Outputs, Communication/ Protocol, Safety related data, IEC 62061, ISO 13849, IEC 61508, Logistics.

Identification 10

Part number 3SE6415-1BB01
Type designation 3SE64
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4047621095394
ETIM class EC002593
eCl@ss 27270611

Sensor 3

height of the sensor 35 mm
length of the sensor 120 mm
width of the sensor 87.5 mm

Ambient conditions 6

installation altitude at height above sea level maximum 2 000 m
ambient temperature: during operation 0 ... 60 °C
ambient temperature: during storage and transport -10 ... +90 °C
operating resource protection class according to IEC 61140 III
relative humidity during operation maximum 93 %
note non-condensing, non-icing

Control circuit/ Control 3

current consumption of magnet coil rated value 100 mA
pickup current peak of magnet coil 250 mA
duration of pickup current peak 200 ms

Main circuit 2

operating voltage rated value 24 V
operational current rated value 250 mA

Enclosure 8

design of the housing special design
material of the enclosure plastic, fiberglass reinforced thermoplast, self-extinguishing
Actuator: Product equipment auxiliary release of guard locking Yes
Actuator: product feature latching Yes
locking mechanism design quiescent current principle
detent force adjustable 1 25 N
detent force adjustable 2 50 N
angular offset between guard locking and actuator maximum 2°

Display 2

product function status display Yes
display version as status display by LED 3 LEDs

Contact 4

circuit principle spring-actuated lock (closed-circuit principle)
operating distance 2 mm
assured operating distance OFF 20 mm
assured operating distance ON 1 mm

Installation/ mounting/ dimensions 4

fastening method screw fixing
design of the thread of the screw for securing the equipment 2x M6
tightening torque of fixing screw minimum 6 N·m
tightening torque of fixing screw maximum 7 N·m

Connections/ Terminals 10

type of electrical connection M12 plug, 8-pole, A-coded
wire length maximum 200 m
contact assignment: of socket 1 at PIN 1 A1 supply voltage Ub
contact assignment: of socket 1 at PIN 2 X1 safety input 1
contact assignment: of socket 1 at PIN 3 A2 GND
contact assignment: of socket 1 at PIN 4 OSSD1 safety output 1
contact assignment: of socket 1 at PIN 5 OUT diagnostic output
contact assignment: of the bushing 1 at PIN 6 X2 safety input 2
contact assignment: of the bushing 1 at PIN 7 OSSD2 safety output 2
contact assignment: of the bushing 1 at PIN 8 IN magnet controller

Supply voltage 4

type of voltage of the supply voltage DC
supply voltage rated value 24 V
supply voltage 26.4 ... 20.4 V
fuse protection type for external auxiliary power supply required 2 A gG

Inputs/ Outputs 19

input voltage at safety-related digital input: for signal at DC -3 ... +5 V
input current at digital input for signal typical 10 mA
input current at safety-related digital input for signal typical 5 mA
number of semiconductor outputs: for signaling function 1
number of semiconductor outputs: safety-related 2
design of the contactless switching element safety-related short-circuit proof, sourcing output
type of diagnostic output short-circuit proof, sourcing output
dark period at safety-related digital output maximum 0.5 ms
dark period test duration: at digital input maximum 5 ms
dark period test duration: at safety-related digital input maximum 1 ms
dark period test interval: at digital input minimum 40 ms
dark period test interval: at safety-related digital input minimum 100 ms
dark period test interval: at safety-related digital output maximum 1 000 ms
residual current at digital output with signal maximum 0.5 mA
voltage drop: at safety-related output maximum 2 V
voltage drop: at diagnostic output maximum 2 V
output current minimum 0.5 mA
output current at safety-related output maximum 0.25 A
output current at diagnostic output maximum 0.05 A

Communication/ Protocol 2

design of the interface for safety-related communication connector M12
transmission frequency rated value 125 kHz

IEC 62061 4

Safety Integrity Level (SIL): for position monitoring according to IEC 62061 3
Safety Integrity Level (SIL): for guard locking according to IEC 62061 2
PFHD with high demand rate: for position monitoring according to IEC 62061 5.2E-9 1/h
PFHD with high demand rate: for guard locking according to IEC 62061 2E-9 1/h

ISO 13849 6

performance level (PL) according to EN ISO 13849-1 e
category according to EN ISO 13849-1 4
performance level (PL): for position monitoring according to ISO 13849-1 e
performance level (PL): for guard locking according to ISO 13849-1 d
category: for position monitoring according to ISO 13849-1 4
category: for guard locking according to ISO 13849-1 2

IEC 61508 10

Safety Integrity Level (SIL) according to IEC 61508 3
PFDavg with low demand rate: for position monitoring according to IEC 62061 4.5E-4
PFDavg with low demand rate: for guard locking according to IEC 62061 0.0018
T1 value for proof test interval or service life: for position monitoring according to IEC 61508 20 a
T1 value for proof test interval or service life: for guard locking according to IEC 61508 20 a
type of monitoring guard locking
response delay maximum 5 000 ms
OFF-delay time with safety-related request: when switched off via control inputs maximum 1.5 ms
OFF-delay time with safety-related request: for safety-related shutdown via actuator maximum 100 ms
conditional short-circuit current (Iq) at 400 V according to IEC 60947-4-1 rated value 100 A

Logistics 7

Net weight 0.6 kg
Package dimensions 150 × 95 × 50 mm
Country of origin DE
Shipping weight 1.1 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 31 Oct 2026

Documents

Documents for 3SE6415-1BB01

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • EN 60529
Quick answers

Questions about the 3SE64

Which supply voltage is 3SE64 rated for?

The rated operational voltage of 3SE64 is 24 V AC.

What is the EAN of 3SE64?

The EAN (GTIN) of 3SE64 is 4047621095394.

Where does 3SE64 ship from, and how fast?

3SE64 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
