- Part number
- 3SE6415-1AB02
- Model no
- 3SE64
Description
About the 3SE64
About the 3SE64

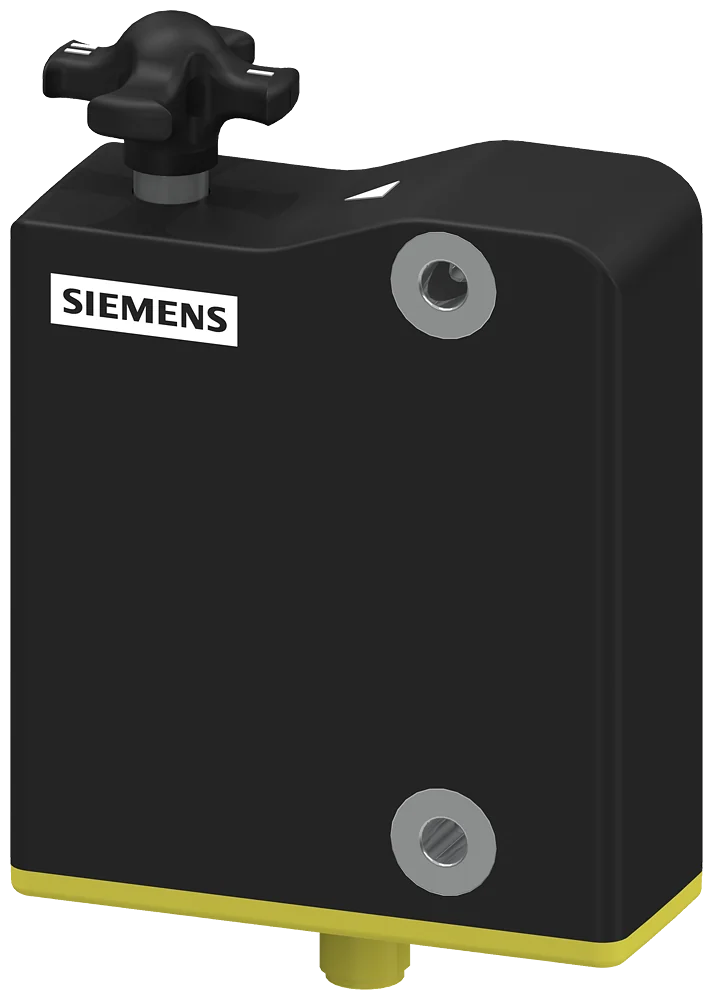

The Siemens 3SE6415-1AB02 is a safety switch from the SENTRON/SIRIUS 3SE6 series. RFID safety switch with tumbler, plastic, open-circuit principle, actuator monitoring, 24 V DC, with auxiliary release, IP69, locking force 1150 N, individually encoded multiple teach-in, coding level high according to ISO 14119, diagnostics output M12 plug 8-pole, 3 LEDs for display of the operating states, 3 directions of actuation, latching force with turnstile adjustable: 25 N or 50 N, hygienic design, actuator 3SE6410-1AC01 to be ordered separately. Supplied by Stoklink for industrial and commercial low-voltage applications.
Certifications & Standards
- EN 60529
Applications & Use Cases
The Siemens 3SE6415-1AB02 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3SE6 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.
Specification
Full specification
General 5
| product brand name | SIRIUS |
|---|---|
| product category | Non-contact safety switch |
| product designation | RFID safety switch with tumbler |
| design of the product | rectangular sensor unit |
| product type designation | 3SE64 |
Product Function 4
| product function: positive opening | No |
|---|---|
| product function: control function for downstream devices | No |
| product function: cross-circuit/short-circuit recognition | Yes |
| suitability for use safety-related circuits | Yes |
General technical data 19
| product feature | individually coded, programmable several times, catch 25N/50N |
|---|---|
| product feature suitable for series connection | Yes |
| locking force | 1 500 N |
| according to EN ISO 14119 | 1 150 N |
| design of the RFID coding | individually coded, multiple teach-in capability |
| insulation voltage rated value | 32 V |
| degree of pollution according to EN 60664-1 | 3 |
| overvoltage category | Class III |
| surge voltage resistance rated value | 0.8 kV |
| no-load current rated value | 100 mA |
| protection class IP | IP66 in accordance with EN 60529 IP67 in accordance with EN 60529 IP69 in accordance with EN 60529 |
| shock resistance: according to IEC 60068-2-27 | 30 g / 11 ms |
| vibration resistance according to IEC 60068-2-6 | 10 ... 150 Hz, amplitude 0.35 mm |
| switching frequency | 0.5 Hz |
| mechanical service life (operating cycles) typical | 1 000 000 |
| note | when used as door stop: ≥ 50,000 switching cycles (door masses ≤ 5 kg and actuating speed ≤ 0.5 m/s) |
| relative ON period [%] of magnet coil | 100 % |
| reference code according to IEC 81346-2 | B |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
Show all 128 specifications ↓ Show less ↑100 more values in Identification, Sensor, Ambient conditions, Control circuit/ Control, Main circuit, Enclosure, Display, Contact, Installation/ mounting/ dimensions, Connections/ Terminals, Supply voltage, Inputs/ Outputs, Communication/ Protocol, Safety related data, IEC 62061, ISO 13849, IEC 61508, Logistics.
Identification 10
| Part number | 3SE6415-1AB02 |
|---|---|
| Type designation | 3SE64 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047621095455 |
| ETIM class | EC002593 |
| eCl@ss | 27270611 |
Sensor 3
| height of the sensor | 35 mm |
|---|---|
| length of the sensor | 120 mm |
| width of the sensor | 87.5 mm |
Ambient conditions 6
| installation altitude at height above sea level maximum | 2 000 m |
|---|---|
| ambient temperature: during operation | 0 ... 60 °C |
| ambient temperature: during storage and transport | -10 ... +90 °C |
| operating resource protection class according to IEC 61140 | III |
| relative humidity during operation maximum | 93 % |
| note | non-condensing, non-icing |
Control circuit/ Control 3
| current consumption of magnet coil rated value | 100 mA |
|---|---|
| pickup current peak of magnet coil | 250 mA |
| duration of pickup current peak | 200 ms |
Main circuit 2
| operating voltage rated value | 24 V |
|---|---|
| operational current rated value | 250 mA |
Enclosure 8
| design of the housing | special design |
|---|---|
| material of the enclosure | plastic, fiberglass reinforced thermoplast, self-extinguishing |
| Actuator: Product equipment auxiliary release of guard locking | Yes |
| Actuator: product feature latching | Yes |
| locking mechanism design | open-circuit principle |
| detent force adjustable 1 | 25 N |
| detent force adjustable 2 | 50 N |
| angular offset between guard locking and actuator maximum | 2° |
Display 2
| product function status display | Yes |
|---|---|
| display version as status display by LED | 3 LEDs |
Contact 4
| circuit principle | solenoid-locked (open-circuit principle) |
|---|---|
| operating distance | 2 mm |
| assured operating distance OFF | 20 mm |
| assured operating distance ON | 1 mm |
Installation/ mounting/ dimensions 4
| fastening method | screw fixing |
|---|---|
| design of the thread of the screw for securing the equipment | 2x M6 |
| tightening torque of fixing screw minimum | 6 N·m |
| tightening torque of fixing screw maximum | 7 N·m |
Connections/ Terminals 10
| type of electrical connection | M12 plug, 8-pole, A-coded |
|---|---|
| wire length maximum | 200 m |
| contact assignment: of socket 1 at PIN 1 | A1 supply voltage Ub |
| contact assignment: of socket 1 at PIN 2 | X1 safety input 1 |
| contact assignment: of socket 1 at PIN 3 | A2 GND |
| contact assignment: of socket 1 at PIN 4 | OSSD1 safety output 1 |
| contact assignment: of socket 1 at PIN 5 | OUT diagnostic output |
| contact assignment: of the bushing 1 at PIN 6 | X2 safety input 2 |
| contact assignment: of the bushing 1 at PIN 7 | OSSD2 safety output 2 |
| contact assignment: of the bushing 1 at PIN 8 | IN magnet controller |
Supply voltage 4
| type of voltage of the supply voltage | DC |
|---|---|
| supply voltage rated value | 24 V |
| supply voltage | 26.4 ... 20.4 V |
| fuse protection type for external auxiliary power supply required | 2 A gG |
Inputs/ Outputs 19
| input voltage at safety-related digital input: for signal at DC | -3 ... +5 V |
|---|---|
| input current at digital input for signal typical | 10 mA |
| input current at safety-related digital input for signal typical | 5 mA |
| number of semiconductor outputs: for signaling function | 1 |
| number of semiconductor outputs: safety-related | 2 |
| design of the contactless switching element safety-related | short-circuit proof, sourcing output |
| type of diagnostic output | short-circuit proof, sourcing output |
| dark period at safety-related digital output maximum | 0.5 ms |
| dark period test duration: at digital input maximum | 5 ms |
| dark period test duration: at safety-related digital input maximum | 1 ms |
| dark period test interval: at digital input minimum | 40 ms |
| dark period test interval: at safety-related digital input minimum | 100 ms |
| dark period test interval: at safety-related digital output maximum | 1 000 ms |
| residual current at digital output with signal maximum | 0.5 mA |
| voltage drop: at safety-related output maximum | 2 V |
| voltage drop: at diagnostic output maximum | 2 V |
| output current minimum | 0.5 mA |
| output current at safety-related output maximum | 0.25 A |
| output current at diagnostic output maximum | 0.05 A |
Communication/ Protocol 2
| design of the interface for safety-related communication | connector M12 |
|---|---|
| transmission frequency rated value | 125 kHz |
IEC 62061 2
| Safety Integrity Level (SIL): for position monitoring according to IEC 62061 | 3 |
|---|---|
| PFHD with high demand rate: for position monitoring according to IEC 62061 | 5.2E-9 1/h |
ISO 13849 4
| performance level (PL) according to EN ISO 13849-1 | e |
|---|---|
| category according to EN ISO 13849-1 | 4 |
| performance level (PL): for position monitoring according to ISO 13849-1 | e |
| category: for position monitoring according to ISO 13849-1 | 4 |
IEC 61508 8
| Safety Integrity Level (SIL) according to IEC 61508 | 3 |
|---|---|
| PFDavg with low demand rate: for position monitoring according to IEC 62061 | 4.5E-4 |
| T1 value for proof test interval or service life: for position monitoring according to IEC 61508 | 20 a |
| type of monitoring | actuator |
| response delay maximum | 5 000 ms |
| OFF-delay time with safety-related request: when switched off via control inputs maximum | 1.5 ms |
| OFF-delay time with safety-related request: for safety-related shutdown via actuator maximum | 100 ms |
| conditional short-circuit current (Iq) at 400 V according to IEC 60947-4-1 rated value | 100 A |
Logistics 7
| Net weight | 0.6 kg |
|---|---|
| Package dimensions | 150 × 95 × 50 mm |
| Country of origin | DE |
| Shipping weight | 1.1 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 31 Oct 2026
Documents
Documents for 3SE6415-1AB02
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- EN 60529
Quick answers
Questions about the 3SE64
Which supply voltage is 3SE64 rated for?
The rated operational voltage of 3SE64 is 24 V AC.
What is the EAN of 3SE64?
The EAN (GTIN) of 3SE64 is 4047621095455.
Where does 3SE64 ship from, and how fast?
3SE64 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
