Part number
3SE6315-0BB02-1AP0
Model no
3SE63
$236.33 On request Dispatch — · From TürkiyeGet a Quote
3SE6

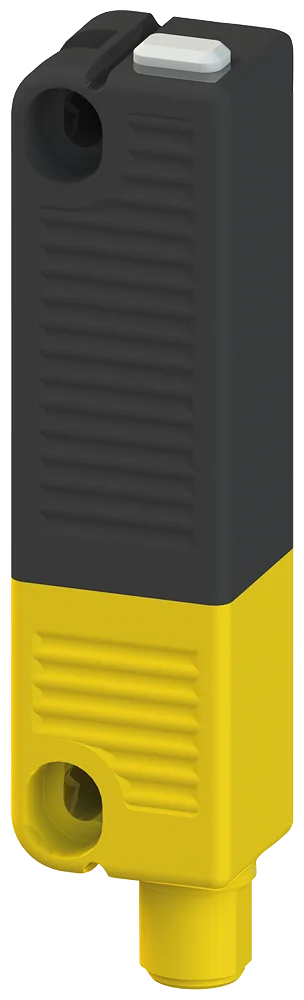

Siemens 3SE6315-0BB02-1AP0 3SE6 Safety Switch

product brand name
SIRIUS
product designation
RFID safety switch
design of the product
Rectangular sensor unit
product type designation
3SE63
suitability for use safety-related circuits
Yes
EAN
4047621100180
Description

About the 3SE63

The Siemens 3SE6315-0BB02-1AP0 is a safety switch from the SENTRON/SIRIUS 3SE6 series. Contact-free safety switch RFID rectangular 106 mm x 25 mm individually encoded, multiple teach-in capability with M12 plug 8-pole, actuator 3SE6310-0BC01 to be ordered separately. Supplied by Stoklink for industrial and commercial low-voltage applications.

Applications & Use Cases

The Siemens 3SE6315-0BB02-1AP0 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3SE6 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Specification

Full specification

59 values · Last verified 31 Oct 2026

General 5

product brand name SIRIUS
product designation RFID safety switch
design of the product Rectangular sensor unit
product type designation 3SE63
suitability for use safety-related circuits Yes

General technical data 12

product function: positive opening No
product function: cross-circuit/short-circuit recognition Yes
product feature individually coded, learnable multiple times, without magnet latching
type of voltage of the operating voltage DC
protection class IP IP65, IP67, IP69k
shock resistance according to IEC 60068-2-27 Sinusoidal half-wave 30 g / 11 ms
vibration resistance according to IEC 60068-2-6 10 ... 55 Hz: 1 mm
Substance Prohibitance (day/month/year) 07/01/2006
height of the sensor 22 mm
length of the sensor 106 mm
width of the sensor 25 mm
material of the active sensor area plastic

Ambient conditions 1

ambient temperature during operation -25 ... +70 °C
Show all 59 specifications ↓ Show less ↑41 more values in Identification, Control circuit/ Control, Enclosure, Actuator, Display, Contact, Installation/ mounting/ dimensions, Connections/ Terminals, Supply voltage, Inputs/ Outputs, Safety related data, ISO 13849, IEC 61508, Logistics.

Identification 10

Part number 3SE6315-0BB02-1AP0
Type designation 3SE63
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4047621100180
ETIM class EC000030
eCl@ss 27270601

Control circuit/ Control 3

type of voltage DC
operating voltage rated value 24 V
operational current rated value 600 mA

Enclosure 2

material of the enclosure plastic
material of cable sheath PVC

Actuator 1

design of the actuating element RFID

Display 1

evaluation unit required yes

Contact 6

switching frequency 1 Hz
operating distance 12 mm
assured operating distance OFF 16 mm
assured operating distance ON 10 mm
design of the switching function positive switching
number of switching contacts for signaling function: safety-related 1

Installation/ mounting/ dimensions 1

fastening method screw fixing

Connections/ Terminals 2

type of electrical connection M12 plug, 8-pole
wire length maximum 30 m

Supply voltage 1

supply voltage 26.4 ... 20.4 V

Inputs/ Outputs 4

output current minimum 0.5 A
output current at safety-related output maximum 0.25 A
design of the interface for safety-related communication connector M12
transmission frequency rated value 125 kHz

ISO 13849 1

performance level (PL) according to EN ISO 13849-1 e

IEC 61508 1

Safety Integrity Level (SIL) according to IEC 61508 3

Logistics 7

Net weight 0.088 kg
Package dimensions 140 × 120 × 35 mm
Country of origin DE
Shipping weight 0.588 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 31 Oct 2026
