- Part number
- 3SE6315-0BB01-1AP0
- Model no
- 3SE63
Description
About the 3SE63
About the 3SE63

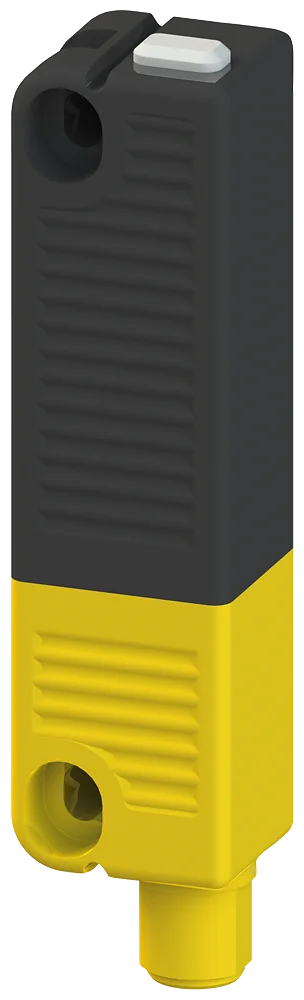

The Siemens 3SE6315-0BB01-1AP0 is a safety switch from the SENTRON/SIRIUS 3SE6 series. Contact-free safety switch RFID rectangular 25 mm x 106 mm family-encoded, with M12 plug 8-pole, delivery status: ready for operation, order actuator separately 3SE6310-0BC01. Supplied by Stoklink for industrial and commercial low-voltage applications.
Applications & Use Cases
The Siemens 3SE6315-0BB01-1AP0 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3SE6 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.
Specification
Full specification
General 5
| product brand name | SIRIUS |
|---|---|
| product designation | RFID safety switch |
| design of the product | Rectangular sensor unit |
| product type designation | 3SE63 |
| suitability for use safety-related circuits | Yes |
General technical data 12
| product function: positive opening | No |
|---|---|
| product function: cross-circuit/short-circuit recognition | Yes |
| product feature | Family coded, without magnetic catch |
| type of voltage of the operating voltage | DC |
| protection class IP | IP65, IP67, IP69k |
| shock resistance according to IEC 60068-2-27 | Sinusoidal half-wave 30 g / 11 ms |
| vibration resistance according to IEC 60068-2-6 | 10 ... 55 Hz: 1 mm |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| height of the sensor | 22 mm |
| length of the sensor | 106 mm |
| width of the sensor | 25 mm |
| material of the active sensor area | plastic |
Ambient conditions 1
| ambient temperature during operation | -25 ... +70 °C |
|---|
Show all 59 specifications ↓ Show less ↑41 more values in Identification, Control circuit/ Control, Enclosure, Actuator, Display, Contact, Installation/ mounting/ dimensions, Connections/ Terminals, Supply voltage, Inputs/ Outputs, Safety related data, ISO 13849, IEC 61508, Logistics.
Identification 10
| Part number | 3SE6315-0BB01-1AP0 |
|---|---|
| Type designation | 3SE63 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047621100173 |
| ETIM class | EC000030 |
| eCl@ss | 27270601 |
Control circuit/ Control 3
| type of voltage | DC |
|---|---|
| operating voltage rated value | 24 V |
| operational current rated value | 600 mA |
Enclosure 2
| material of the enclosure | plastic |
|---|---|
| material of cable sheath | PVC |
Actuator 1
| design of the actuating element | RFID |
|---|
Display 1
| evaluation unit required | yes |
|---|
Contact 6
| switching frequency | 1 Hz |
|---|---|
| operating distance | 12 mm |
| assured operating distance OFF | 16 mm |
| assured operating distance ON | 10 mm |
| design of the switching function | positive switching |
| number of switching contacts for signaling function: safety-related | 1 |
Installation/ mounting/ dimensions 1
| fastening method | screw fixing |
|---|
Connections/ Terminals 2
| type of electrical connection | M12 plug, 8-pole |
|---|---|
| wire length maximum | 30 m |
Supply voltage 1
| supply voltage | 26.4 ... 20.4 V |
|---|
Inputs/ Outputs 4
| output current minimum | 0.5 A |
|---|---|
| output current at safety-related output maximum | 0.25 A |
| design of the interface for safety-related communication | connector M12 |
| transmission frequency rated value | 125 kHz |
ISO 13849 1
| performance level (PL) according to EN ISO 13849-1 | e |
|---|
IEC 61508 1
| Safety Integrity Level (SIL) according to IEC 61508 | 3 |
|---|
Logistics 7
| Net weight | 0.093 kg |
|---|---|
| Package dimensions | 60 × 106 × 28 mm |
| Country of origin | DE |
| Shipping weight | 0.593 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 31 Oct 2026
Documents
Documents for 3SE6315-0BB01-1AP0
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the 3SE63
What is the EAN of 3SE63?
The EAN (GTIN) of 3SE63 is 4047621100173.
Where does 3SE63 ship from, and how fast?
3SE63 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
