- Part number
- 3SE6310-1BC01
- Model no
- 3SE63
Description
About the 3SE63
About the 3SE63

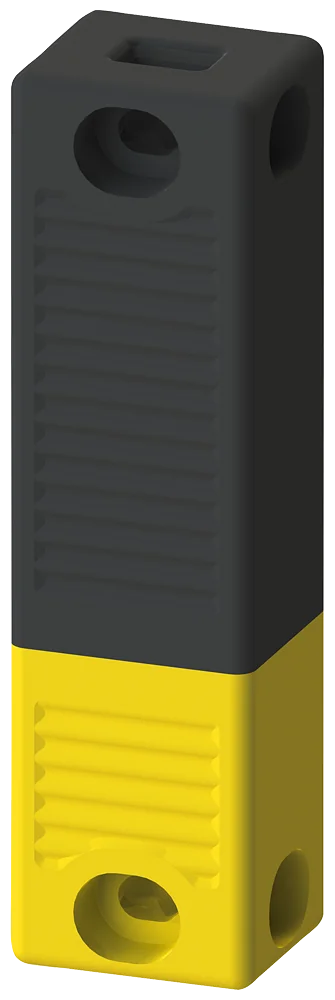

The Siemens 3SE6310-1BC01 is a safety switch from the SENTRON/SIRIUS 3SE6 series. Actuator with magnet latching 18 N, for RFID safety switches 3SE63 rectangular 91 mm x 25 mm with magnet latching. Supplied by Stoklink for industrial and commercial low-voltage applications.
Applications & Use Cases
The Siemens 3SE6310-1BC01 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3SE6 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.
Specification
Full specification
General 4
| product brand name | SIRIUS |
|---|---|
| product designation | RFID safety switch |
| design of the product | RFID actuators |
| product type designation | 3SE63 |
General technical data 7
| product feature | With magnetic latching |
|---|---|
| protection class IP | IP65, IP67, IP69k |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| height of the sensor | 22 mm |
| length of the sensor | 91 mm |
| width of the sensor | 25 mm |
| material of the active sensor area | plastic |
Ambient conditions 1
| ambient temperature during operation | -25 ... +70 °C |
|---|
Show all 33 specifications ↓ Show less ↑21 more values in Identification, Enclosure, Installation/ mounting/ dimensions, Logistics.
Identification 10
| Part number | 3SE6310-1BC01 |
|---|---|
| Type designation | 3SE63 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4011209900684 |
| ETIM class | EC000030 |
| eCl@ss | 27270601 |
Enclosure 2
| material of the enclosure | plastic |
|---|---|
| material of cable sheath | PVC |
Installation/ mounting/ dimensions 2
| fastening method | screw fixing |
|---|---|
| transmission frequency rated value | 125 kHz |
Logistics 7
| Net weight | 0.081 kg |
|---|---|
| Package dimensions | 90 × 30 × 30 mm |
| Country of origin | DE |
| Shipping weight | 0.581 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 31 Oct 2026
Documents
Documents for 3SE6310-1BC01
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the 3SE63
What is the EAN of 3SE63?
The EAN (GTIN) of 3SE63 is 4011209900684.
Where does 3SE63 ship from, and how fast?
3SE63 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
