Part number
3SE5413-0CN20-1EA2
Model no
3SE5
$53.54 Low stock Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
3SE5

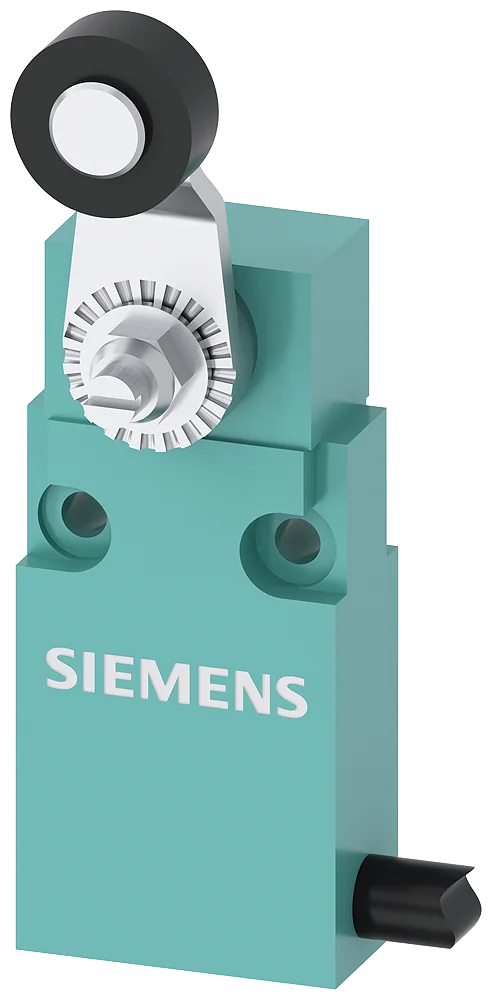

Siemens 3SE5413-0CN20-1EA2 3SE5 6A Safety Switch

Rated current
6 A
EAN
4011209845299
Description

About the 3SE5

The Siemens 3SE5413-0CN20-1EA2 is a safety switch from the SENTRON/SIRIUS 3SE5 series. Position switch in compact design 30 mm wide with connection cable 2 m Snap-action contacts 1 NO+1 NC twist lever. Supplied by Stoklink for industrial and commercial low-voltage applications.

Applications & Use Cases

The Siemens 3SE5413-0CN20-1EA2 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3SE5 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Specification

Full specification

64 values · Last verified 31 Oct 2026

General 3

product brand name SIRIUS
product designation Mechanical position switches
product type designation 3SE5

General technical data 18

product function positive opening Yes
insulation voltage rated value 400 V
degree of pollution 3
surge voltage resistance rated value 4 kV
protection class IP IP67
shock resistance: according to IEC 60068-2-27 30 g / 11 ms
vibration resistance according to IEC 60068-2-6 0.35 mm/5 g
mechanical service life (operating cycles) typical 5 000 000
electrical endurance (operating cycles) at AC-15 at 230 V typical 100 000
thermal current 10 A
material of the enclosure of the switch head metal
reference code according to IEC 81346-2 B
active principle mechanical
repeat accuracy 0.05 mm
Substance Prohibitance (day/month/year) 07/01/2006
minimum actuating torque in directions of actuation 0.2 N·m
length of the sensor 95 mm
width of the sensor 30 mm

Ambient conditions 11

ambient temperature: during operation -25 ... +85 °C
ambient temperature: during storage -25 ... +85 °C
explosion protection category for dust none
design of the switching contact mechanical
operating frequency rated value 50 ... 60 Hz
number of NC contacts for auxiliary contacts 1
number of NO contacts for auxiliary contacts 1
operational current at AC-15: at 125 V rated value 6 A
operational current at AC-15: at 230 V rated value 3 A
operational current at DC-13: at 125 V rated value 0.55 A
operational current at DC-13: at 230 V rated value 0.27 A
Show all 64 specifications ↓ Show less ↑32 more values in Identification, Enclosure, Drive Head, Installation/ mounting/ dimensions, Connections/ Terminals, Communication/ Protocol, Logistics.

Identification 10

Part number 3SE5413-0CN20-1EA2
Type designation 3SE5
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4011209845299
ETIM class EC000030
eCl@ss 27270601

Enclosure 5

design of the housing block
material of the enclosure metal
coating of the enclosure painted
design of the housing according to standard No
material of cable sheath PVC

Drive Head 5

design of the actuating element twist lever
shape of the switch head lever
design of the switching function positive opening
circuit principle snap-action contacts
number of switching contacts safety-related 1

Installation/ mounting/ dimensions 2

mounting position any
fastening method screw fixing

Connections/ Terminals 2

type of electrical connection cable, 5 x 0.75mm2
design of the interface for safety-related communication without

Communication/ Protocol 1

design of the interface without

Logistics 7

Net weight 0.333 kg
Package dimensions 135 × 135 × 48 mm
Country of origin CN
Shipping weight 0.833 kg
Ships from Türkiye
Dispatch 18 Nov
Stock Low stock

Source: manufacturer data · Last verified: 31 Oct 2026

Documents

Documents for 3SE5413-0CN20-1EA2

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the 3SE5

What is the rated current of 3SE5?

The rated current of 3SE5 is 6 A.

What is the EAN of 3SE5?

The EAN (GTIN) of 3SE5 is 4011209845299.

Where does 3SE5 ship from, and how fast?

3SE5 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
