- Part number
- 3SE5322-1SG21
- Model no
- 3SE5
Description
About the 3SE5
About the 3SE5

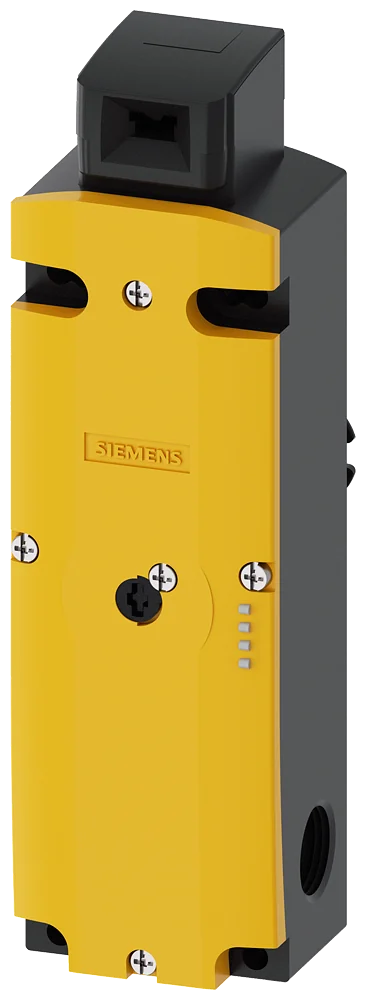

The Siemens 3SE5322-1SG21 is a safety switch from the SENTRON/SIRIUS 3SE5 series. Safety position switch with guard lock locking force 1300 N 5 approach directions plastic enclosure, 3x(M20x1.5) spring-locked escape release from the rear and auxiliary release on front magnet voltage 24 V DC monitoring actuator 2 NC/1 NO monitoring magnet 2 NC/1 NO LED display yellow/green supplied without actuator, actuator 3SE5000-0AV0. to be ordered separately. Supplied by Stoklink for industrial and commercial low-voltage applications.
Applications & Use Cases
The Siemens 3SE5322-1SG21 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3SE5 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.
Specification
Full specification
General 5
| product brand name | SIRIUS |
|---|---|
| product designation | Mechanical safety switches |
| design of the product | with separate actuator and with tumbler |
| product type designation | 3SE5 |
| manufacturer's article number of the optional actuators | 3SE5000-0AV01 standard actuator, 3SE5000-0AV02 actuator with vertical fixing, 3SE5000-0AV03 actuator with transverse fixing, 3SE5000-0AV04 radius actuator, approach from left, 3SE5000-0AV05 universal actuator, 3SE5000- 0AV06 radius actuator, approach from right, 3SE5000-0AV07 Heavy Duty actuator, 3SE5000-0AW42 actuator with vertical fixing, stainless steel socket, 3SE5000-0AW43 actuator with transverse fixing, stainless steel socket, 3SE5000-0AW51 stainless steel actuator, 3SE5000-0AW52 stainless steel actuator with vertical fixing, 3SE5000-0AW53 stainless steel actuator with transverse fixing |
General technical data 24
| product function positive opening | Yes |
|---|---|
| locking force | 1 300 N |
| according to EN ISO 14119 | 1 000 N |
| insulation voltage rated value | 250 V |
| degree of pollution | class 3 |
| surge voltage resistance rated value | 4 kV |
| protection class IP | IP65/IP67 |
| shock resistance | 30g / 11 ms |
| according to IEC 60068-2-27 | 30 g / 11 ms |
| vibration resistance | 0.35 mm / 5 g |
| according to IEC 60068-2-6 | 0.35 mm/5 g |
| mechanical service life (operating cycles) typical | 1 000 000 |
| thermal current | 10 A |
| material of the enclosure of the switch head | plastic |
| reference code according to IEC 81346-2 | B |
| continuous current of the C characteristic MCB | 1 A; for a short-circuit current smaller than 400 A |
| continuous current of the quick DIAZED fuse link | 10 A; for a short-circuit current smaller than 400 A |
| continuous current of the DIAZED fuse link gG | 6 A; for a short-circuit current smaller than 400 A |
| repeat accuracy | 0.05 mm |
| Substance Prohibitance (day/month/year) | 10/01/2011 |
| SVHC substance name | Lead CAS-No. 7439-92-1 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868- 10-5 Melamine CAS-No. 108-78-1 |
| minimum actuating force in directions of actuation | 30 N |
| length of the sensor | 185 mm |
| width of the sensor | 54 mm |
Ambient conditions 10
| ambient temperature: during operation | -25 ... +60 °C |
|---|---|
| ambient temperature: during storage | -40 ... +80 °C |
| explosion protection category for dust | none |
| consumed active power of magnet coil | 3.5 W |
| operational current at AC-15: at 24 V rated value | 6 A |
| operational current at AC-15: at 120 V rated value | 6 A |
| operational current at AC-15: at 240 V rated value | 3 A |
| operational current at DC-13: at 24 V rated value | 3 A |
| operational current at DC-13: at 125 V rated value | 0.55 A |
| operational current at DC-13: at 250 V rated value | 0.27 A |
Show all 86 specifications ↓ Show less ↑47 more values in Identification, Enclosure, Drive Head, Installation/ mounting/ dimensions, Connections/ Terminals, Supply voltage, Communication/ Protocol, Safety related data, ISO 13849, IEC 61508, Logistics.
Identification 10
| Part number | 3SE5322-1SG21 |
|---|---|
| Type designation | 3SE5 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4011209683457 |
| ETIM class | EC002593 |
| eCl@ss | 27270611 |
Enclosure 4
| design of the housing | special design |
|---|---|
| material of the enclosure | plastic |
| design of the housing according to standard | No |
| locking mechanism design | spring-actuated lock (closed-circuit principle) with escape release from the back and auxiliary release from the front |
Drive Head 6
| design of the actuating element | 5 directions of approach |
|---|---|
| design of the switching function | positive opening |
| number of directions of actuation | 5 |
| circuit principle | slow-action contacts |
| number of switching contacts safety-related | 4 |
| cable entry type | 3x (M20 x 1.5) |
Installation/ mounting/ dimensions 2
| mounting position | any |
|---|---|
| fastening method | screw fixing |
Connections/ Terminals 4
| type of electrical connection | screw terminal |
|---|---|
| type of connectable conductor cross-sections: solid | 1x (0.5 ... 1.5 mm2), 2x (0.5 ... 0.75 mm2) |
| type of connectable conductor cross-sections: finely stranded with core end processing | 1x (0.5 ... 1.5 mm2), 2x (0.5 ... 0.75 mm2) |
| type of connectable conductor cross-sections: for AWG cables solid | 1x (20 ... 16), 2x (20 ... 18) |
Supply voltage 4
| type of voltage of the supply voltage of the optional LED display | DC |
|---|---|
| supply voltage of LED: ● | 24 V |
| supply voltage of magnet coil | 24 V |
| design of the interface for safety-related communication | without |
Communication/ Protocol 1
| design of the interface | without |
|---|
ISO 13849 1
| device type according to ISO 13849-1 | 3 |
|---|
IEC 61508 1
| safety device type according to IEC 61508-2 | A |
|---|
Logistics 7
| Net weight | 0.39 kg |
|---|---|
| Package dimensions | 252 × 151 × 68 mm |
| Country of origin | DE |
| Shipping weight | 0.89 kg |
| Ships from | Türkiye |
| Dispatch | 18 Nov |
| Stock | Critical stock |
Source: manufacturer data · Last verified: 31 Oct 2026
Documents
Documents for 3SE5322-1SG21
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the 3SE5
What is the rated current of 3SE5?
The rated current of 3SE5 is 6 A.
Which supply voltage is 3SE5 rated for?
The rated operational voltage of 3SE5 is 24 V AC.
What is the EAN of 3SE5?
The EAN (GTIN) of 3SE5 is 4011209683457.
Where does 3SE5 ship from, and how fast?
3SE5 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
