Part number
3SE5322-1SB21
Model no
3SE5
$265.95 On request Dispatch — · From TürkiyeGet a Quote
3SE5

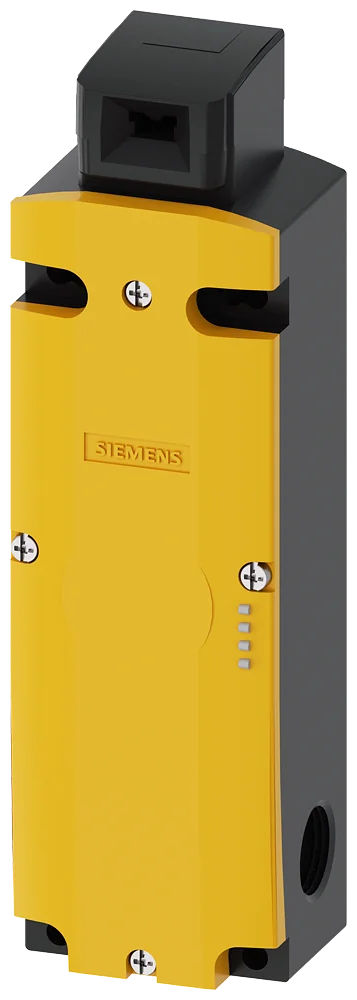

Siemens 3SE5322-1SB21 3SE5 6A 24V Safety Switch

Rated current
6 A
Rated operational voltage
24 V AC
EAN
4011209683419
Description

About the 3SE5

The Siemens 3SE5322-1SB21 is a safety switch from the SENTRON/SIRIUS 3SE5 series. Safety position switch with guard lock locking force 1300 N 5 approach directions solenoid-locked magnet voltage 24 V DC monitoring actuator 2 NC/1 NO monitoring magnet 2 NC/1 NO LED display yellow/green supplied without actuator, actuator 3SE5000-0AV. to be ordered separately. Supplied by Stoklink for industrial and commercial low-voltage applications.

Applications & Use Cases

The Siemens 3SE5322-1SB21 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3SE5 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Specification

Full specification

86 values · Last verified 31 Oct 2026

General 5

product brand name SIRIUS
product designation Mechanical safety switches
design of the product with separate actuator and with tumbler
product type designation 3SE5
manufacturer's article number of the optional actuators 3SE5000-0AV01 standard actuator, 3SE5000-0AV02 actuator with vertical fixing, 3SE5000-0AV03 actuator with transverse fixing, 3SE5000-0AV04 radius actuator, approach from left, 3SE5000-0AV05 universal actuator, 3SE5000- 0AV06 radius actuator, approach from right, 3SE5000-0AV07 Heavy Duty actuator, 3SE5000-0AW42 actuator with vertical fixing, stainless steel socket, 3SE5000-0AW43 actuator with transverse fixing, stainless steel socket, 3SE5000-0AW51 stainless steel actuator, 3SE5000-0AW52 stainless steel actuator with vertical fixing, 3SE5000-0AW53 stainless steel actuator with transverse fixing

General technical data 24

product function positive opening Yes
locking force 1 300 N
according to EN ISO 14119 1 000 N
insulation voltage rated value 250 V
degree of pollution class 3
surge voltage resistance rated value 4 kV
protection class IP IP66/IP67
shock resistance 30g / 11 ms
according to IEC 60068-2-27 30 g / 11 ms
vibration resistance 0.35 mm / 5 g
according to IEC 60068-2-6 0.35 mm/5 g
mechanical service life (operating cycles) typical 1 000 000
thermal current 10 A
material of the enclosure of the switch head plastic
reference code according to IEC 81346-2 B
continuous current of the C characteristic MCB 1 A; for a short-circuit current smaller than 400 A
continuous current of the quick DIAZED fuse link 10 A; for a short-circuit current smaller than 400 A
continuous current of the DIAZED fuse link gG 6 A; for a short-circuit current smaller than 400 A
repeat accuracy 0.05 mm
Substance Prohibitance (day/month/year) 10/01/2011
SVHC substance name Lead CAS-No. 7439-92-1 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868- 10-5 Melamine CAS-No. 108-78-1
minimum actuating force in directions of actuation 30 N
length of the sensor 185 mm
width of the sensor 54 mm

Ambient conditions 10

ambient temperature: during operation -25 ... +60 °C
ambient temperature: during storage -40 ... +80 °C
explosion protection category for dust none
consumed active power of magnet coil 3.5 W
operational current at AC-15: at 24 V rated value 6 A
operational current at AC-15: at 120 V rated value 6 A
operational current at AC-15: at 240 V rated value 3 A
operational current at DC-13: at 24 V rated value 3 A
operational current at DC-13: at 125 V rated value 0.55 A
operational current at DC-13: at 250 V rated value 0.27 A
Show all 86 specifications ↓ Show less ↑47 more values in Identification, Enclosure, Drive Head, Installation/ mounting/ dimensions, Connections/ Terminals, Supply voltage, Communication/ Protocol, Safety related data, ISO 13849, IEC 61508, Logistics.

Identification 10

Part number 3SE5322-1SB21
Type designation 3SE5
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4011209683419
ETIM class EC002593
eCl@ss 27270611

Enclosure 4

design of the housing special design
material of the enclosure plastic
design of the housing according to standard No
locking mechanism design magnetic field lock (open-circuit principle)

Drive Head 6

design of the actuating element 5 directions of approach
design of the switching function positive opening
number of directions of actuation 5
circuit principle slow-action contacts
number of switching contacts safety-related 4
cable entry type 3x (M20 x 1.5)

Installation/ mounting/ dimensions 2

mounting position any
fastening method screw fixing

Connections/ Terminals 4

type of electrical connection screw terminal
type of connectable conductor cross-sections: solid 1x (0.5 ... 1.5 mm2), 2x (0.5 ... 0.75 mm2)
type of connectable conductor cross-sections: finely stranded with core end processing 1x (0.5 ... 1.5 mm2), 2x (0.5 ... 0.75 mm2)
type of connectable conductor cross-sections: for AWG cables solid 1x (20 ... 16), 2x (20 ... 18)

Supply voltage 4

type of voltage of the supply voltage of the optional LED display DC
supply voltage of LED: ● 24 V
supply voltage of magnet coil 24 V
design of the interface for safety-related communication without

Communication/ Protocol 1

design of the interface without

ISO 13849 1

device type according to ISO 13849-1 3

IEC 61508 1

safety device type according to IEC 61508-2 A

Logistics 7

Net weight 0.498 kg
Package dimensions 213 × 62 × 84 mm
Country of origin DE
Shipping weight 0.998 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 31 Oct 2026
