Part number
3SE5232-1RV40
Model no
3SE5
$65.67 Low stock Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
3SE5

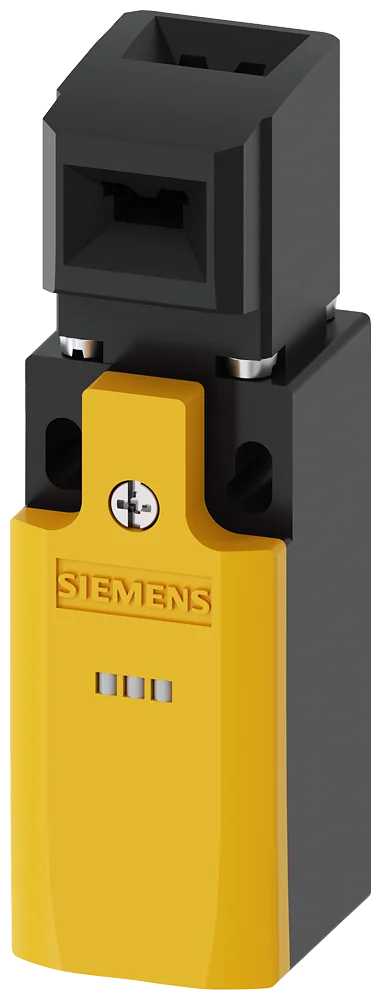

Siemens 3SE5232-1RV40 3SE5 3A 24V Safety Switch

Rated current
3 A
Rated operational voltage
24 V AC
EAN
4011209722880
Description

About the 3SE5

The Siemens 3SE5232-1RV40 is a safety switch from the SENTRON/SIRIUS 3SE5 series. Safety position switch with separate actuator Plastic enclosure, 31 mm Device connection 1x (M20x 1.5) Slow-action contacts 1 NO/1 NC 2x LED yellow/green 24 V DC 5 directions of approaches The matching separate Actuator 3SE5000-0AV0./-0AW. must be ordered separately. Supplied by Stoklink for industrial and commercial low-voltage applications.

Certifications & Standards

  • EN 50047

Applications & Use Cases

The Siemens 3SE5232-1RV40 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3SE5 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Specification

Full specification

80 values · Last verified 31 Oct 2026

General 4

product brand name SIRIUS
product designation Mechanical safety switches
product type designation 3SE5
manufacturer's article number: of the optional actuators 3SE5000-0AV01 standard actuator, 3SE5000-0AV02 actuator with vertical fixing, 3SE5000-0AV03 actuator with transverse fixing, 3SE5000-0AV04 radius actuator, approach from left, 3SE5000-0AV05 universal actuator, 3SE5000- 0AV06 radius actuator, approach from right, 3SE5000-0AV07 Heavy Duty actuator, 3SE5000-0AW42 actuator with vertical fixing, stainless steel socket, 3SE5000-0AW43 actuator with transverse fixing, stainless steel socket, 3SE5000-0AW51 stainless steel actuator, 3SE5000-0AW52 stainless steel actuator with vertical fixing, 3SE5000-0AW53 stainless steel actuator with transverse fixing, 3SE5000-0AW11 plastic actuator

General technical data 22

product function positive opening Yes
insulation voltage rated value 400 V
degree of pollution class 3
surge voltage resistance rated value 1 kV
protection class IP IP65
shock resistance: according to IEC 60068-2-27 30 g / 11 ms
vibration resistance: according to IEC 60068-2-6 0.35 mm/5 g
mechanical service life (operating cycles) typical 1 000 000
electrical endurance (operating cycles) at AC-15 at 230 V typical 100 000
thermal current 10 A
material of the enclosure of the switch head plastic
reference code according to IEC 81346-2 B
continuous current of the C characteristic MCB 1 A; for a short-circuit current smaller than 400 A
continuous current of the quick DIAZED fuse link 10 A; for a short-circuit current smaller than 400 A
continuous current of the DIAZED fuse link gG 6 A; for a short-circuit current smaller than 400 A
active principle mechanical
repeat accuracy 0.05 mm
Substance Prohibitance (day/month/year) 07/01/2006
SVHC substance name Imidazolidine-2-thione (2-imidazoline-2-thiol) CAS-No. 96-45-7
minimum actuating force in directions of actuation 20 N
length of the sensor 104 mm
width of the sensor 31 mm

Ambient conditions 3

ambient temperature: during operation -25 ... +60 °C
ambient temperature: during storage -40 ... +90 °C
explosion protection category for dust none
Show all 80 specifications ↓ Show less ↑51 more values in Identification, Main circuit, Enclosure, Drive Head, Installation/ mounting/ dimensions, Connections/ Terminals, Supply voltage, Communication/ Protocol, Safety related data, ISO 13849, IEC 61508, Logistics.

Identification 10

Part number 3SE5232-1RV40
Type designation 3SE5
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4011209722880
ETIM class EC000030
eCl@ss 27270601

Main circuit 5

design of the switching contact mechanical
operating frequency rated value 50 ... 60 Hz
number of NC contacts for auxiliary contacts 1
number of NO contacts for auxiliary contacts 1
operational current at DC-13: at 24 V rated value 3 A

Enclosure 4

design of the housing block, narrow
material of the enclosure plastic
coating of the enclosure Other types
design of the housing according to standard Yes

Drive Head 6

design of the actuating element without
standard-compliant actuator head EN 50047
design of the switching function positive opening
circuit principle slow-action contacts
number of switching contacts safety-related 1
cable entry type 1x (M20 x 1.5)

Installation/ mounting/ dimensions 2

mounting position any
fastening method screw fixing

Connections/ Terminals 4

type of electrical connection screw terminal
type of connectable conductor cross-sections: solid 1x (0.5 ... 1.5 mm2), 2x (0.5 ... 0.75 mm2)
type of connectable conductor cross-sections: finely stranded with core end processing 1x (0.5 ... 1.5 mm2), 2x (0.5 ... 0.75 mm2)
type of connectable conductor cross-sections: for AWG cables solid 1x (20 ... 16), 2x (20 ... 18)

Supply voltage 3

type of voltage of the supply voltage of the optional LED display DC
supply voltage of LED: ● 24 V
design of the interface for safety-related communication without

Communication/ Protocol 1

design of the interface without

ISO 13849 1

device type according to ISO 13849-1 3

IEC 61508 1

safety device type according to IEC 61508-2 A

Logistics 7

Net weight 0.093 kg
Package dimensions 166 × 56 × 78 mm
Country of origin DE
Shipping weight 0.593 kg
Ships from Türkiye
Dispatch 18 Nov
Stock Low stock

Source: manufacturer data · Last verified: 31 Oct 2026

Documents

Documents for 3SE5232-1RV40

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • EN 50047
Quick answers

Questions about the 3SE5

What is the rated current of 3SE5?

The rated current of 3SE5 is 3 A.

Which supply voltage is 3SE5 rated for?

The rated operational voltage of 3SE5 is 24 V AC.

What is the EAN of 3SE5?

The EAN (GTIN) of 3SE5 is 4011209722880.

Where does 3SE5 ship from, and how fast?

3SE5 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
