- Part number
- 3SE5132-1QV20
- Model no
- 3SE5
Description
About the 3SE5
About the 3SE5

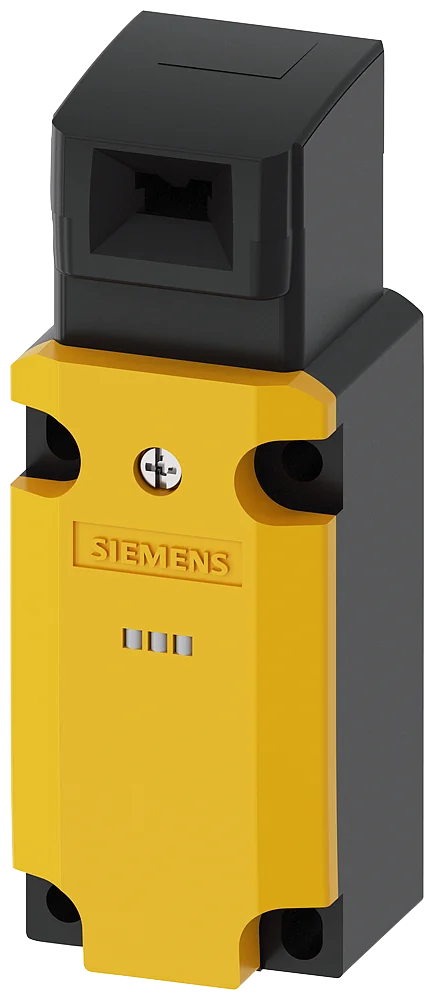

The Siemens 3SE5132-1QV20 is a safety switch from the SENTRON/SIRIUS 3SE5 series. Safety position switch with separate actuator Plastic enclosure 40 mm 1 x (M20 x 1.5) Slow-action contacts 1 NO+2 NC with 2 LEDs yellow/green 24 V DC 5 directions of approaches The matching separate actuator 3SE5000-0AV0. must be ordered separately. Supplied by Stoklink for industrial and commercial low-voltage applications.
Applications & Use Cases
The Siemens 3SE5132-1QV20 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3SE5 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.
Specification
Full specification
General 5
| product brand name | SIRIUS |
|---|---|
| product designation | Mechanical safety switches |
| product type designation | 3SE5 |
| manufacturer's article number: of the optional actuators | 3SE5000-0AV01 standard actuator, 3SE5000-0AV02 actuator with vertical mounting, 3SE5000-0AV03 actuator with horizontal mounting, 3SE5000-0AV04 radius actuator left, 3SE5000-0AV05 universal actuator, 3SE5000-0AV06 radius actuator right, 3SE5000-0AV07 heavy-duty actuator, 3SE5000-0AW11 plastic actuator, 3SE5000-0AW21 stainless steel actuator |
| manufacturer's article number: of the supplied empty enclosure with cover | 3SE5132-0AA00 |
General technical data 21
| product function positive opening | Yes |
|---|---|
| insulation voltage rated value | 400 V |
| degree of pollution | class 3 |
| surge voltage resistance rated value | 6 kV |
| protection class IP | IP66/IP67 |
| shock resistance: according to IEC 60068-2-27 | 30 g / 11 ms |
| vibration resistance according to IEC 60068-2-6 | 0.35 mm/5 g |
| mechanical service life (operating cycles) typical | 1 000 000 |
| thermal current | 10 A |
| material of the enclosure of the switch head | plastic |
| reference code according to IEC 81346-2 | B |
| continuous current of the C characteristic MCB | 1 A; for a short-circuit current smaller than 400 A |
| continuous current of the quick DIAZED fuse link | 10 A; for a short-circuit current smaller than 400 A |
| continuous current of the DIAZED fuse link gG | 6 A; for a short-circuit current smaller than 400 A |
| active principle | mechanical |
| repeat accuracy | 0.05 mm |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| SVHC substance name | Imidazolidine-2-thione (2-imidazoline-2-thiol) CAS-No. 96-45-7 |
| minimum actuating force in directions of actuation | 20 N |
| length of the sensor | 110 mm |
| width of the sensor | 40 mm |
Ambient conditions 3
| ambient temperature: during operation | -25 ... +60 °C |
|---|---|
| ambient temperature: during storage | -40 ... +90 °C |
| explosion protection category for dust | none |
Show all 78 specifications ↓ Show less ↑49 more values in Identification, Main circuit, Enclosure, Drive Head, Installation/ mounting/ dimensions, Connections/ Terminals, Supply voltage, Communication/ Protocol, Safety related data, ISO 13849, IEC 61508, Logistics.
Identification 10
| Part number | 3SE5132-1QV20 |
|---|---|
| Type designation | 3SE5 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4011209878129 |
| ETIM class | EC000030 |
| eCl@ss | 27270601 |
Main circuit 4
| design of the switching contact | mechanical |
|---|---|
| number of NC contacts for auxiliary contacts | 2 |
| number of NO contacts for auxiliary contacts | 1 |
| operational current at DC-13: at 24 V rated value | 3 A |
Enclosure 4
| design of the housing | block, narrow |
|---|---|
| material of the enclosure | plastic |
| coating of the enclosure | Other types |
| design of the housing according to standard | Yes |
Drive Head 5
| design of the actuating element | without |
|---|---|
| design of the switching function | positive opening |
| circuit principle | slow-action contacts |
| number of switching contacts safety-related | 2 |
| cable entry type | 1x (M20 x 1.5) |
Installation/ mounting/ dimensions 2
| mounting position | any |
|---|---|
| fastening method | screw fixing |
Connections/ Terminals 4
| type of electrical connection | screw terminal |
|---|---|
| type of connectable conductor cross-sections: solid | 1x (0.5 ... 1.5 mm2), 2x (0.5 ... 0.75 mm2) |
| type of connectable conductor cross-sections: finely stranded with core end processing | 1x (0.5 ... 1.5 mm2), 2x (0.5 ... 0.75 mm2) |
| type of connectable conductor cross-sections: for AWG cables solid | 1x (20 ... 16), 2x (20 ... 18) |
Supply voltage 3
| type of voltage of the supply voltage of the optional LED display | DC |
|---|---|
| supply voltage of LED: ● | 24 V |
| design of the interface for safety-related communication | without |
Communication/ Protocol 1
| design of the interface | without |
|---|
ISO 13849 1
| device type according to ISO 13849-1 | 3 |
|---|
IEC 61508 1
| safety device type according to IEC 61508-2 | A |
|---|
Logistics 7
| Net weight | 0.142 kg |
|---|---|
| Package dimensions | 166 × 56 × 78 mm |
| Country of origin | DE |
| Shipping weight | 0.642 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 31 Oct 2026
Documents
Documents for 3SE5132-1QV20
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the 3SE5
What is the rated current of 3SE5?
The rated current of 3SE5 is 3 A.
Which supply voltage is 3SE5 rated for?
The rated operational voltage of 3SE5 is 24 V AC.
What is the EAN of 3SE5?
The EAN (GTIN) of 3SE5 is 4011209878129.
Where does 3SE5 ship from, and how fast?
3SE5 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
