Part number
3SE5132-0QV20
Model no
3SE5
$51.30 On request Dispatch — · From TürkiyeGet a Quote
3SE5

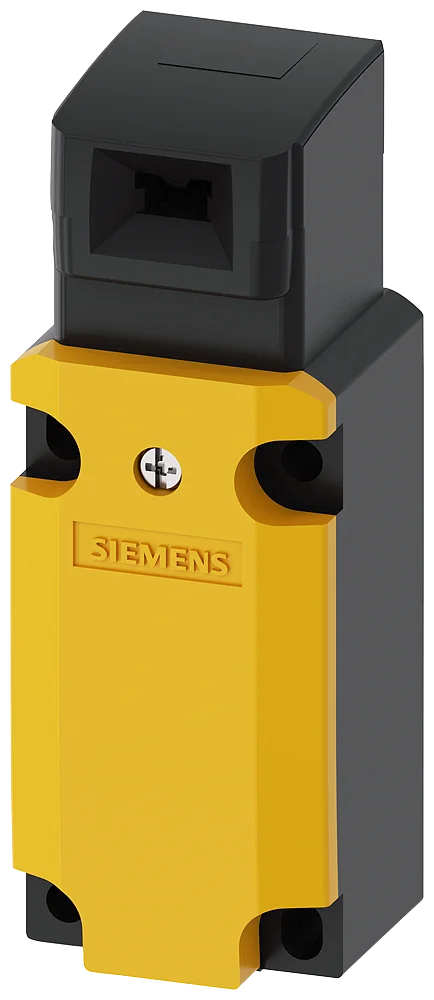

Siemens 3SE5132-0QV20 3SE5 6A Safety Switch

Rated current
6 A
EAN
4011209878044
Description

About the 3SE5

The Siemens 3SE5132-0QV20 is a safety switch from the SENTRON/SIRIUS 3SE5 series. Safety position switch with separate actuator Plastic enclosure 40 mm 1 x (M20 x 1.5) Slow-action contacts 1 NO+2 NC 5 directions of approaches The matching separate actuator 3SE5000-0AV0. must be ordered separately. Supplied by Stoklink for industrial and commercial low-voltage applications.

Applications & Use Cases

The Siemens 3SE5132-0QV20 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3SE5 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Specification

Full specification

85 values · Last verified 31 Oct 2026

General 5

product brand name SIRIUS
product designation Mechanical safety switches
product type designation 3SE5
manufacturer's article number: of the optional actuators 3SE5000-0AV01 standard actuator, 3SE5000-0AV02 actuator with vertical mounting, 3SE5000-0AV03 actuator with horizontal mounting, 3SE5000-0AV04 radius actuator left, 3SE5000-0AV05 universal actuator, 3SE5000-0AV06 radius actuator right, 3SE5000-0AV07 heavy-duty actuator, 3SE5000-0AW11 plastic actuator, 3SE5000-0AW21 stainless steel actuator
manufacturer's article number: of the supplied empty enclosure with cover 3SE5132-0AA00

General technical data 22

product function positive opening Yes
insulation voltage rated value 400 V
degree of pollution class 3
surge voltage resistance rated value 6 kV
protection class IP IP66/IP67
shock resistance: according to IEC 60068-2-27 30 g / 11 ms
vibration resistance according to IEC 60068-2-6 0.35 mm/5 g
mechanical service life (operating cycles) typical 1 000 000
electrical endurance (operating cycles) at AC-15 at 230 V typical 100 000
thermal current 10 A
material of the enclosure of the switch head plastic
reference code according to IEC 81346-2 B
continuous current of the C characteristic MCB 1 A; for a short-circuit current smaller than 400 A
continuous current of the quick DIAZED fuse link 10 A; for a short-circuit current smaller than 400 A
continuous current of the DIAZED fuse link gG 6 A; for a short-circuit current smaller than 400 A
active principle mechanical
repeat accuracy 0.05 mm
Substance Prohibitance (day/month/year) 07/01/2006
SVHC substance name Imidazolidine-2-thione (2-imidazoline-2-thiol) CAS-No. 96-45-7
minimum actuating force in directions of actuation 20 N
length of the sensor 110 mm
width of the sensor 40 mm

Ambient conditions 3

ambient temperature: during operation -25 ... +85 °C
ambient temperature: during storage -40 ... +90 °C
explosion protection category for dust none
Show all 85 specifications ↓ Show less ↑55 more values in Identification, Main circuit, Enclosure, Drive Head, Installation/ mounting/ dimensions, Connections/ Terminals, Communication/ Protocol, Safety related data, ISO 13849, IEC 61508, Logistics.

Identification 10

Part number 3SE5132-0QV20
Type designation 3SE5
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4011209878044
ETIM class EC000030
eCl@ss 27270601

Main circuit 12

design of the switching contact mechanical
operating frequency rated value 50 ... 60 Hz
number of NC contacts for auxiliary contacts 2
number of NO contacts for auxiliary contacts 1
operational current at AC-15: at 24 V rated value 6 A
operational current at AC-15: at 120 V rated value 6 A
operational current at AC-15: at 240 V rated value 4 A
operational current at AC-15: at 400 V rated value 4 A
operational current at DC-13: at 24 V rated value 3 A
operational current at DC-13: at 125 V rated value 0.55 A
operational current at DC-13: at 250 V rated value 0.27 A
operational current at DC-13: at 400 V rated value 0.12 A

Enclosure 4

design of the housing block, narrow
material of the enclosure plastic
coating of the enclosure Other types
design of the housing according to standard Yes

Drive Head 5

design of the actuating element without
design of the switching function positive opening
circuit principle slow-action contacts
number of switching contacts safety-related 2
cable entry type 1x (M20 x 1.5)

Installation/ mounting/ dimensions 2

mounting position any
fastening method screw fixing

Connections/ Terminals 5

type of electrical connection screw terminal
type of connectable conductor cross-sections: solid 1x (0.5 ... 1.5 mm2), 2x (0.5 ... 0.75 mm2)
type of connectable conductor cross-sections: finely stranded with core end processing 1x (0.5 ... 1.5 mm2), 2x (0.5 ... 0.75 mm2)
type of connectable conductor cross-sections: for AWG cables solid 1x (20 ... 16), 2x (20 ... 18)
design of the interface for safety-related communication without

Communication/ Protocol 1

design of the interface without

ISO 13849 1

device type according to ISO 13849-1 3

IEC 61508 1

safety device type according to IEC 61508-2 A

Logistics 7

Net weight 0.136 kg
Package dimensions 166 × 56 × 78 mm
Country of origin DE
Shipping weight 0.636 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 31 Oct 2026

Documents

Documents for 3SE5132-0QV20

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the 3SE5

What is the rated current of 3SE5?

The rated current of 3SE5 is 6 A.

What is the EAN of 3SE5?

The EAN (GTIN) of 3SE5 is 4011209878044.

Where does 3SE5 ship from, and how fast?

3SE5 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
