Part number
3SE5132-0CJ50
Model no
3SE5
$43.34 On request Dispatch — · From TürkiyeGet a Quote
3SE5

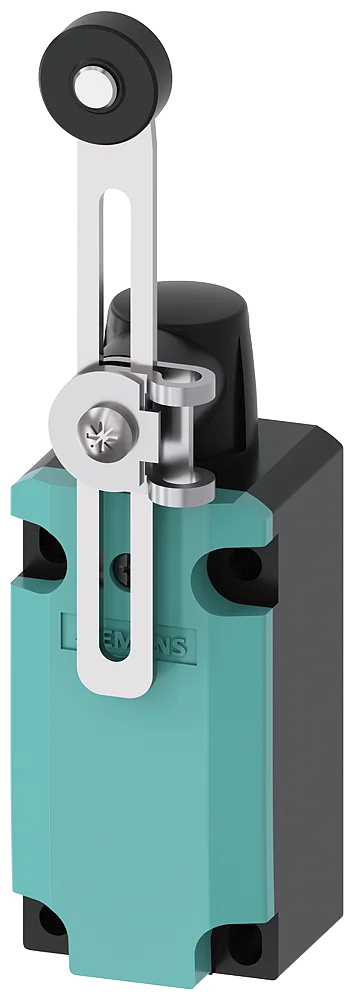

Siemens 3SE5132-0CJ50 3SE5 6A Safety Switch

Rated current
6 A
EAN
4011209877962
Description

About the 3SE5

The Siemens 3SE5132-0CJ50 is a safety switch from the SENTRON/SIRIUS 3SE5 series. Position switch Plastic enclosure 40 mm Twist lever, adjustable length Metal lever with plastic roller 19 mm according to EN 50041 Device connection 1 x (M20 x 1.5) 1 NO/1 NC quick action contacts Rotary actuator right/left adjustable. Supplied by Stoklink for industrial and commercial low-voltage applications.

Certifications & Standards

  • EN 50041

Applications & Use Cases

The Siemens 3SE5132-0CJ50 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3SE5 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.

Specification

Full specification

80 values · Last verified 31 Oct 2026

General 8

product brand name SIRIUS
product designation Mechanical position switches
product type designation 3SE5
manufacturer's article number: of the supplied basic switch 3SE5132-0CA00
manufacturer's article number: of the supplied actuator head for position switches 3SE5000-0AH00
manufacturer's article number: of the supplied operating lever 3SE5000-0AA50
manufacturer's article number: of the supplied switching contacts 3SE5000-0CA00
manufacturer's article number: of the supplied empty enclosure with cover 3SE5132-0AA00

General technical data 22

product function positive opening No
insulation voltage rated value 400 V
degree of pollution class 3
surge voltage resistance rated value 6 kV
protection class IP IP66/IP67
shock resistance: according to IEC 60068-2-27 30 g / 11 ms
vibration resistance according to IEC 60068-2-6 0.35 mm/5 g
mechanical service life (operating cycles) typical 15 000 000
electrical endurance (operating cycles) at AC-15 at 230 V typical 100 000
thermal current 10 A
material of the enclosure of the switch head plastic
reference code according to IEC 81346-2 B
continuous current of the C characteristic MCB 1 A; for a short-circuit current smaller than 400 A
continuous current of the quick DIAZED fuse link 10 A; for a short-circuit current smaller than 400 A
continuous current of the DIAZED fuse link gG 6 A
active principle mechanical
repeat accuracy 0.05 mm
Substance Prohibitance (day/month/year) 07/01/2006
SVHC substance name Imidazolidine-2-thione (2-imidazoline-2-thiol) CAS-No. 96-45-7
minimum actuating torque in directions of actuation 0.25 N·m
length of the sensor 192 mm
width of the sensor 40 mm

Ambient conditions 3

ambient temperature: during operation -25 ... +85 °C
ambient temperature: during storage -40 ... +90 °C
explosion protection category for dust none
Show all 80 specifications ↓ Show less ↑47 more values in Identification, Main circuit, Enclosure, Drive Head, Installation/ mounting/ dimensions, Connections/ Terminals, Communication/ Protocol, Logistics.

Identification 10

Part number 3SE5132-0CJ50
Type designation 3SE5
Brand Siemens
Condition New, factory sealed
Source Siemens and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 4011209877962
ETIM class EC000030
eCl@ss 27270601

Main circuit 12

design of the switching contact mechanical
operating frequency rated value 50 ... 60 Hz
number of NC contacts for auxiliary contacts 1
number of NO contacts for auxiliary contacts 1
operational current at AC-15: at 24 V rated value 6 A
operational current at AC-15: at 125 V rated value 6 A
operational current at AC-15: at 240 V rated value 6 A
operational current at AC-15: at 400 V rated value 4 A
operational current at DC-13: at 24 V rated value 3 A
operational current at DC-13: at 125 V rated value 0.55 A
operational current at DC-13: at 250 V rated value 0.27 A
operational current at DC-13: at 400 V rated value 0.12 A

Enclosure 4

design of the housing block, narrow
material of the enclosure plastic
coating of the enclosure Other types
design of the housing according to standard Yes

Drive Head 6

design of the actuating element Metal lever adjustable length, plastic roller 19 mm
standard-compliant actuator head EN 50041, design A
shape of the switch head roller
circuit principle snap-action contacts
number of switching contacts safety-related 0
cable entry type 1x (M20 x 1.5)

Installation/ mounting/ dimensions 2

mounting position any
fastening method screw fixing

Connections/ Terminals 5

type of electrical connection screw terminal
type of connectable conductor cross-sections: solid 1x (0.5 ... 1.5 mm2), 2x (0.5 ... 0.75 mm2)
type of connectable conductor cross-sections: finely stranded with core end processing 1x (0.5 ... 1.5 mm2), 2x (0.5 ... 0.75 mm2)
type of connectable conductor cross-sections: for AWG cables solid 1x (20 ... 16), 2x (20 ... 18)
design of the interface for safety-related communication without

Communication/ Protocol 1

design of the interface without

Logistics 7

Net weight 0.125 kg
Package dimensions 165 × 75 × 46 mm
Country of origin DE
Shipping weight 0.625 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 31 Oct 2026

Documents

Documents for 3SE5132-0CJ50

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • EN 50041
