- Part number
- 3SE5000-0MA00
- Model no
- 3SE5
Description
About the 3SE5
About the 3SE5

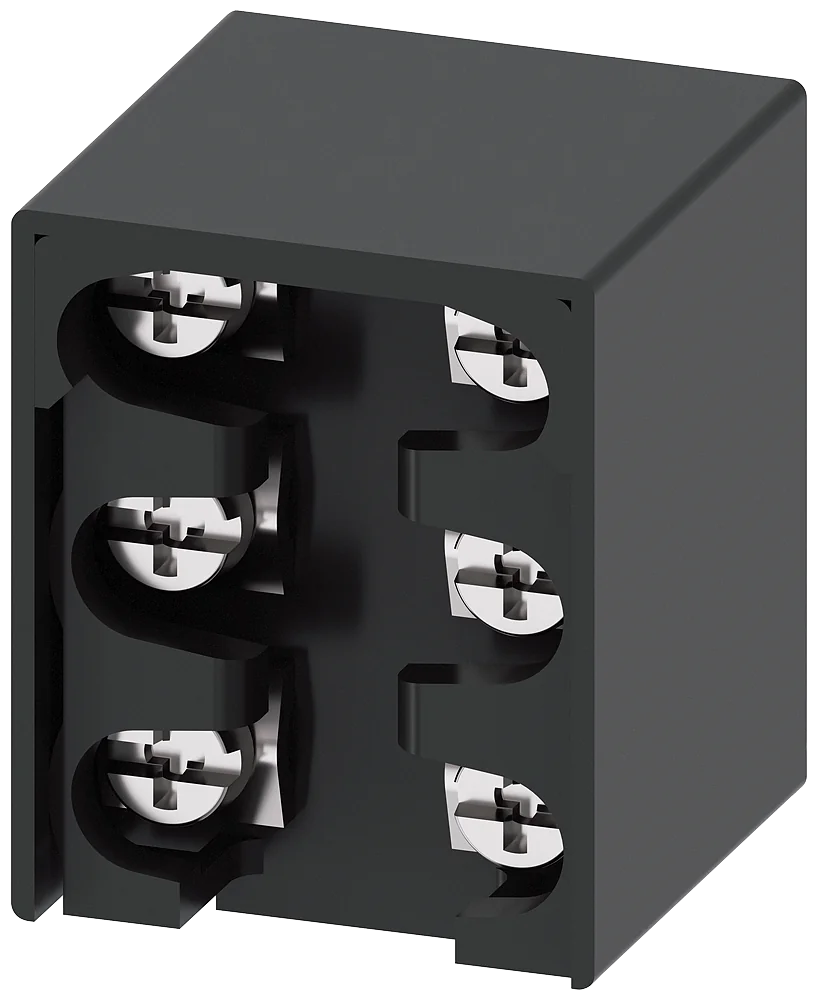

The Siemens 3SE5000-0MA00 is a safety switch from the SENTRON/SIRIUS 3SE5 series. Contact block for position switch 3SE51/52 1 NO/2 NC slow-action contact with make-before-break. Supplied by Stoklink for industrial and commercial low-voltage applications.
Applications & Use Cases
The Siemens 3SE5000-0MA00 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3SE5 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.
Specification
Full specification
General 3
| product brand name | SIRIUS |
|---|---|
| product designation | contact |
| product type designation | 3SE5 |
General technical data 18
| product function positive opening | Yes |
|---|---|
| insulation voltage rated value | 250 V |
| degree of pollution | class 3 |
| surge voltage resistance rated value | 4 kV |
| protection class IP | IP00 |
| shock resistance: according to IEC 60068-2-27 | 30 g / 11 ms |
| vibration resistance: according to IEC 60068-2-6 | 0.35 mm/5 g |
| mechanical service life (operating cycles) typical | 15 000 000 |
| electrical endurance (operating cycles) at AC-15 at 230 V typical | 100 000 |
| thermal current | 10 A |
| reference code according to IEC 81346-2 | S |
| continuous current of the C characteristic MCB | 1 A; for a short-circuit current smaller than 400 A |
| continuous current of the quick DIAZED fuse link | 10 A; for a short-circuit current smaller than 400 A |
| continuous current of the DIAZED fuse link gG | 6 A |
| active principle | mechanical |
| repeat accuracy | 0.1 mm |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| width of the sensor | 25 mm |
Ambient conditions 3
| ambient temperature: during operation | -25 ... +85 °C |
|---|---|
| ambient temperature: during storage | -40 ... +90 °C |
| explosion protection category for dust | none |
Show all 64 specifications ↓ Show less ↑40 more values in Identification, Main circuit, Enclosure, Drive Head, Installation/ mounting/ dimensions, Connections/ Terminals, Communication/ Protocol, Logistics.
Identification 10
| Part number | 3SE5000-0MA00 |
|---|---|
| Type designation | 3SE5 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4011209856233 |
| ETIM class | EC001487 |
| eCl@ss | 27270612 |
Main circuit 11
| operating frequency rated value | 50 ... 60 Hz |
|---|---|
| number of NC contacts for auxiliary contacts | 2 |
| number of NO contacts for auxiliary contacts | 1 |
| operational current at AC-15: at 24 V rated value | 6 A |
| operational current at AC-15: at 125 V rated value | 6 A |
| operational current at AC-15: at 240 V rated value | 6 A |
| operational current at AC-15: at 400 V rated value | 4 A |
| operational current at DC-13: at 24 V rated value | 3 A |
| operational current at DC-13: at 125 V rated value | 0.55 A |
| operational current at DC-13: at 250 V rated value | 0.27 A |
| operational current at DC-13: at 400 V rated value | 0.12 A |
Enclosure 1
| coating of the enclosure | Other types |
|---|
Drive Head 3
| design of the switching function | positive opening |
|---|---|
| circuit principle | slow-action contacts |
| number of switching contacts safety-related | 2 |
Installation/ mounting/ dimensions 2
| mounting position | any |
|---|---|
| fastening method | snap-on mounting |
Connections/ Terminals 5
| type of electrical connection | screw terminal |
|---|---|
| type of connectable conductor cross-sections: solid | 1x (0.5 ... 1.5 mm2), 2x (0.5 ... 0.75 mm2) |
| type of connectable conductor cross-sections: finely stranded with core end processing | 1x (0.5 ... 1.5 mm2), 2x (0.5 ... 0.75 mm2) |
| type of connectable conductor cross-sections: for AWG cables solid | 1x (20 ... 16), 2x (20 ... 18) |
| design of the interface for safety-related communication | without |
Communication/ Protocol 1
| design of the interface | without |
|---|
Logistics 7
| Net weight | 0.025 kg |
|---|---|
| Package dimensions | 30 × 25 × 23 mm |
| Country of origin | DE |
| Shipping weight | 0.525 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 31 Oct 2026
Documents
Documents for 3SE5000-0MA00
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the 3SE5
What is the rated current of 3SE5?
The rated current of 3SE5 is 6 A.
What is the EAN of 3SE5?
The EAN (GTIN) of 3SE5 is 4011209856233.
Where does 3SE5 ship from, and how fast?
3SE5 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
